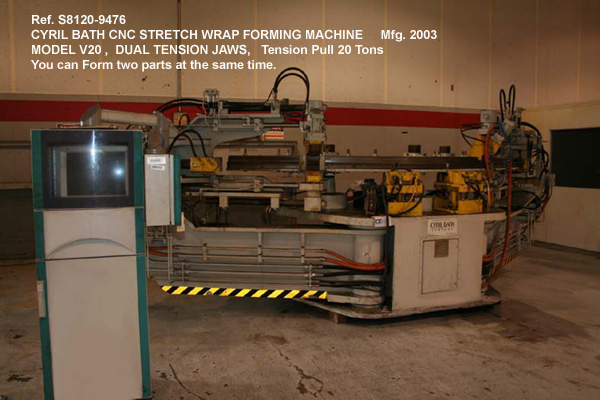

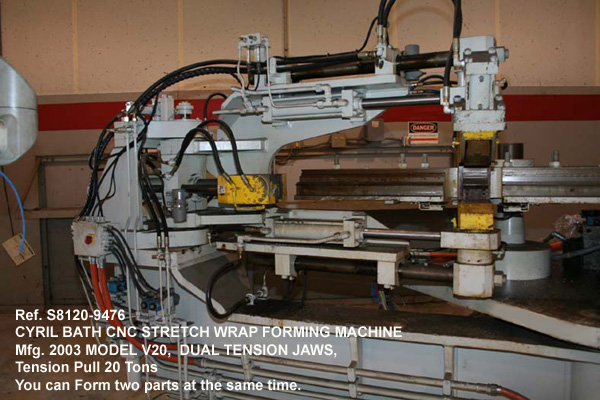

CYRIL BATH CNC HORIZONTAL STRETCH WRAP FORMING PRESS
Model V-20, Serial Number M10307, Mfg. 2003
SPECIFICATIONS

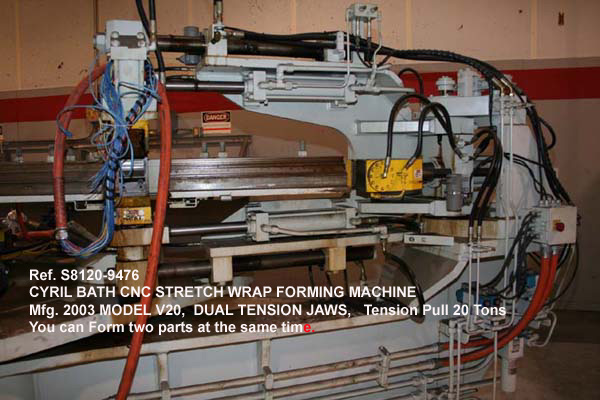

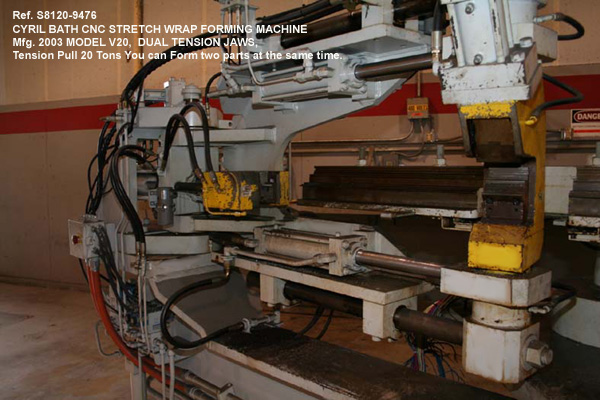

TWO SET OPPOSING JAWS (TWIN TENSION JAWS)
SHALLOW ARK. SINGLE PLANE
DISTANCE BETWEEN PRIMARY JAWS:
Minimum 140" (3,556mm)
Maximum 168" (4,267.2mm)
DISTANCE BETWEEN SECONDARY JAWS:
Minimum 68.5" (1,739.9mm)
Maximum 92.5" (2,349.5mm)

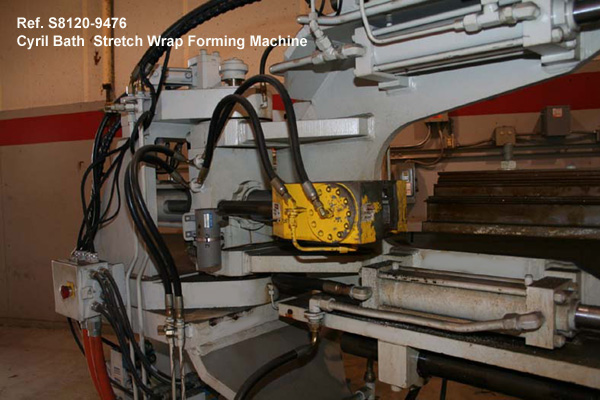

TENSION CYLINDER PULL:
Maximum Pull 20 Tons
Stroke 12" (304.8mm)
ARM SWING ANGLE: Die stays constant to table. Stretch and wrapping around die
Forward 10 Degrees Back 35 Degrees
Total 45 Degrees
SWING ARM: Extended 75⅜" (1914,53mm)
Retracted 49-11/16" (1,2621mm)

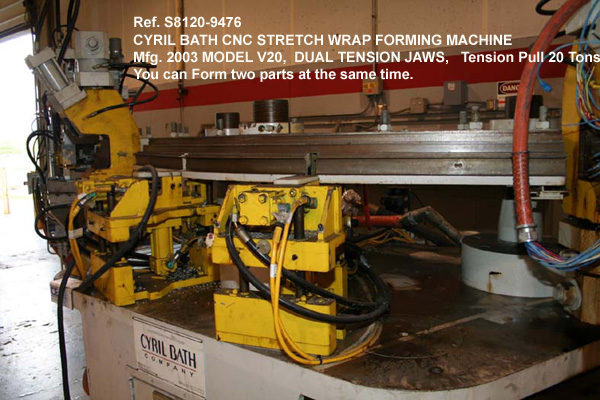

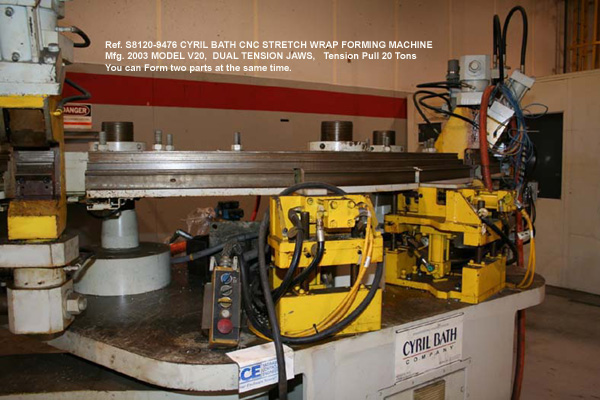

DIE TABLE: 3 Posts
Working Surface, Width overall 102½" (2,603.5mm)
Distance between two Front Posts centers 57½" (1,460.5mm)
Distance center of two Die Post and Rear Post Die (each side) 35" (889mm)

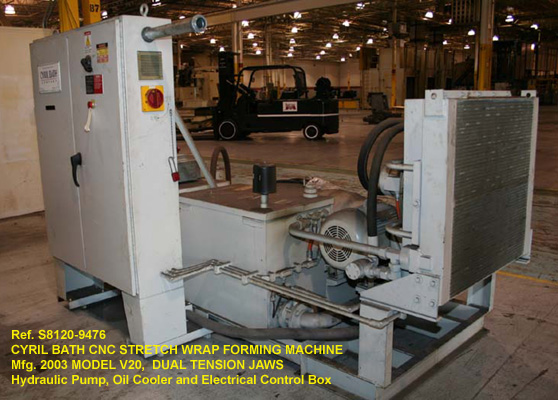

MOTOR DRIVE: Wired 440 volts, 3-phase

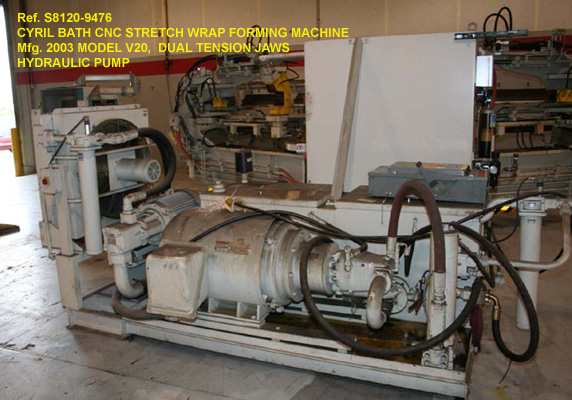

Hydraulic Pump 100 H.P. 230/460 volts
Cooler Fan Motor 5 H.P. 230/460 volts
Oiler Cooler Fan 1½ H.P. 208 / 230 volts
CONTROLS: Window 2000 Operators
Interface, QNX Machine Controls. .
Power Supply.
Hard Drive , 101 Keyboard. Color CRT.

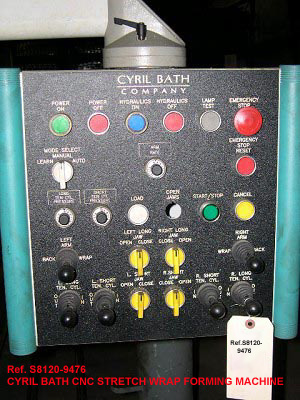

REMOTE CONTROL STATION:
Power On/Off Buttons. Hydraulic On/Off Button. Lamp Test Button.
Emergency Stop and Reset Buttons. Mode Selector Switch: Length / Manual / Auto.
Load Adjustment Dials. Right and Left Arm Back / Wrap Toggle.
Right and Left Tension Cylinder In / Out Toggle. Left and Right Long Jaw Open / Close Switch.
Left and Right Short Jaw Open / Close Switch.
COMPLETE FACTORY SAFETY GUARDS
Overall Width 239", Front to Back 89⅜", Height 76" Est. Weight 25,000 lbs
Approximate Total Weight 32,000 lbs. with Hydraulic Power Unit
