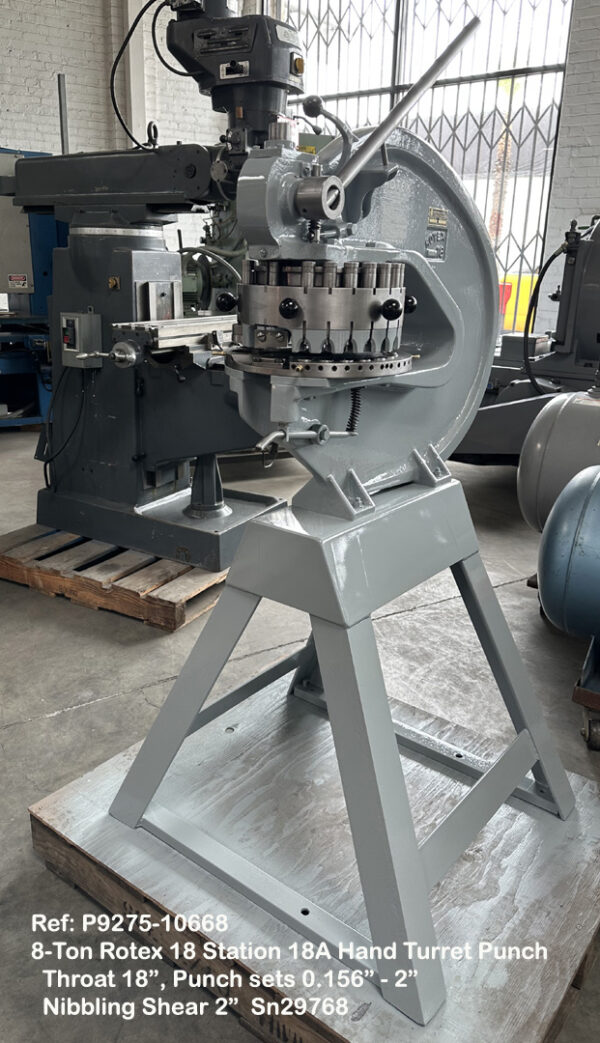

8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-1 Front to Right Side view

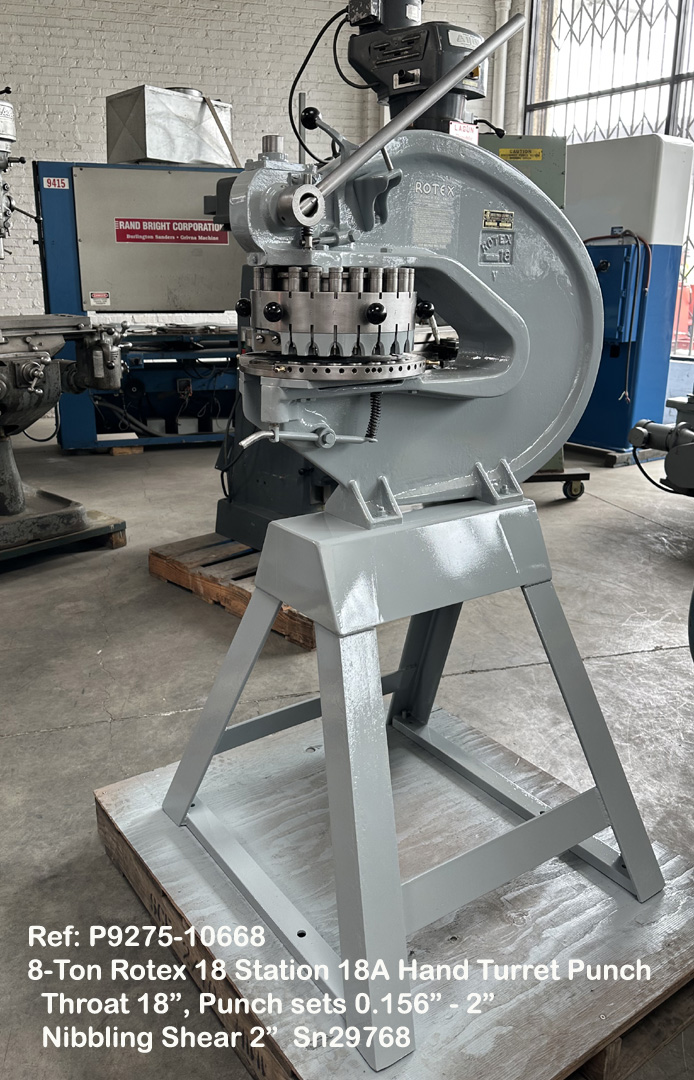

8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-2, Right side view

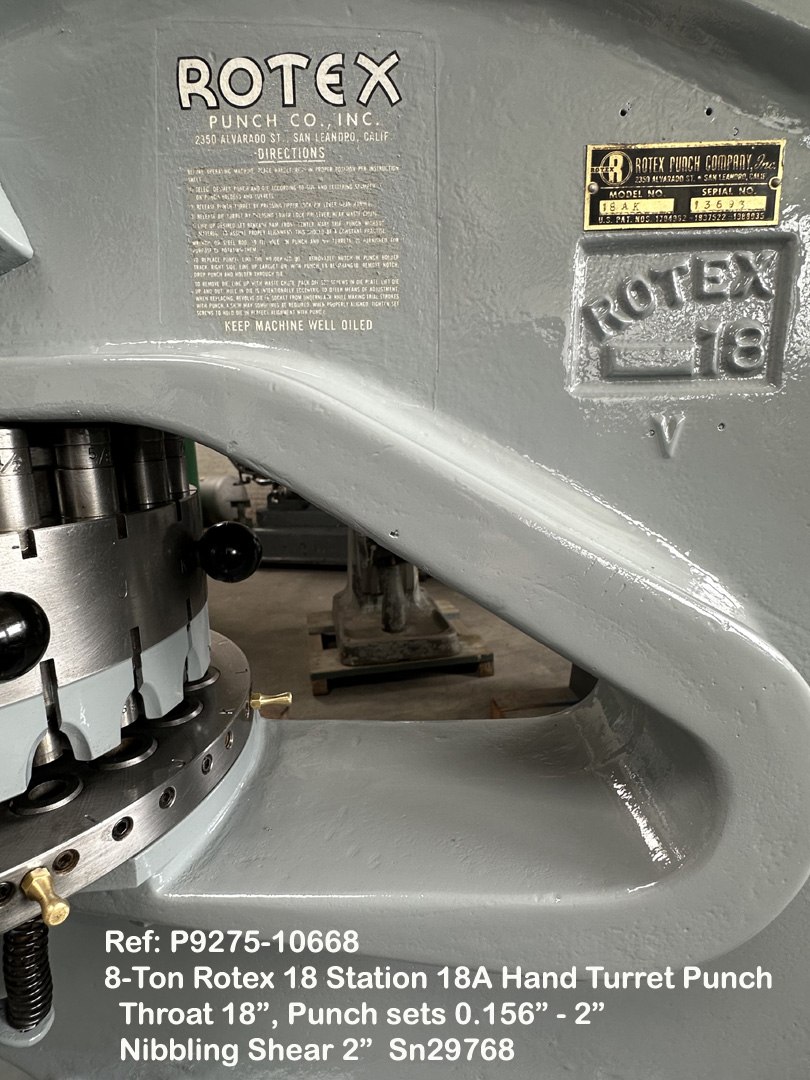

8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-16, Close up ID tag

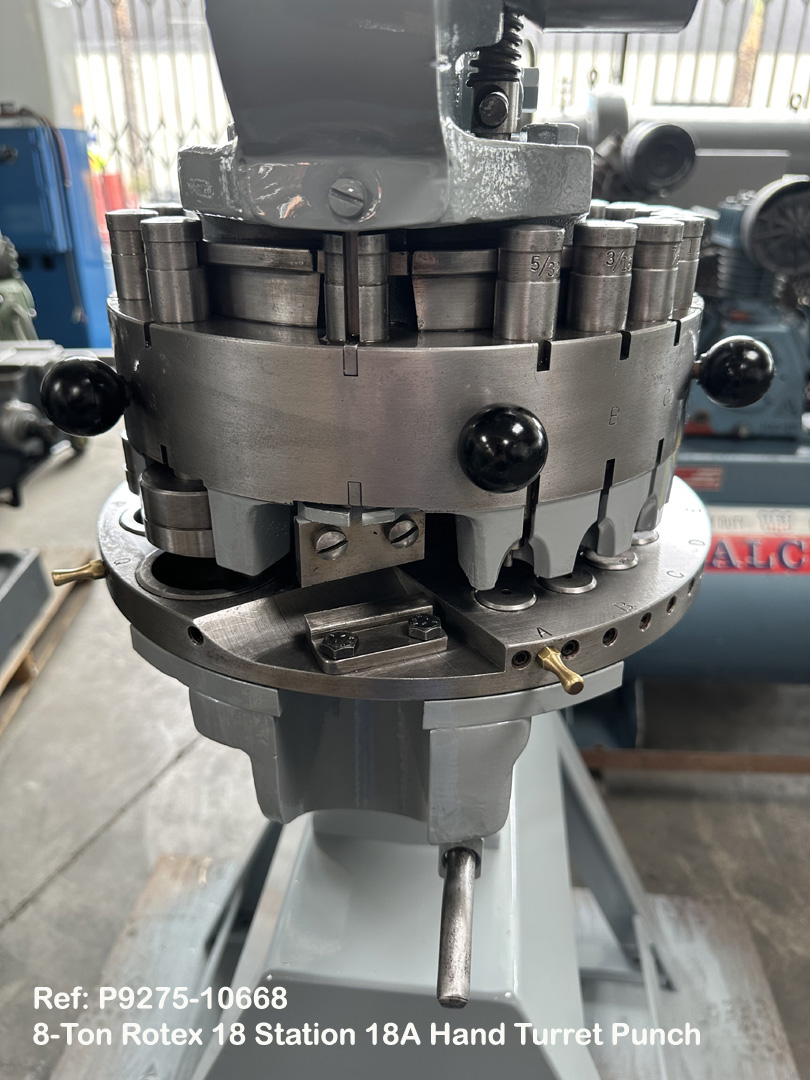

8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-15, Close up Punch Station and Shear Station
8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-14, Close up Punch Stations and Shear Station

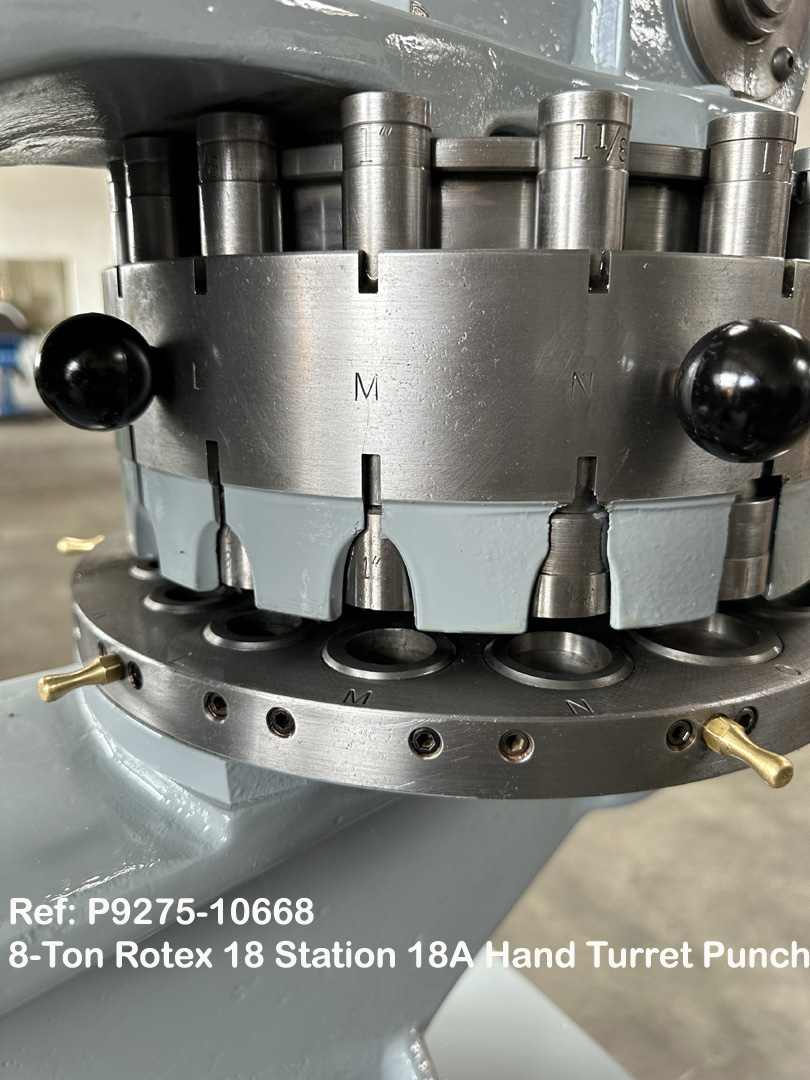

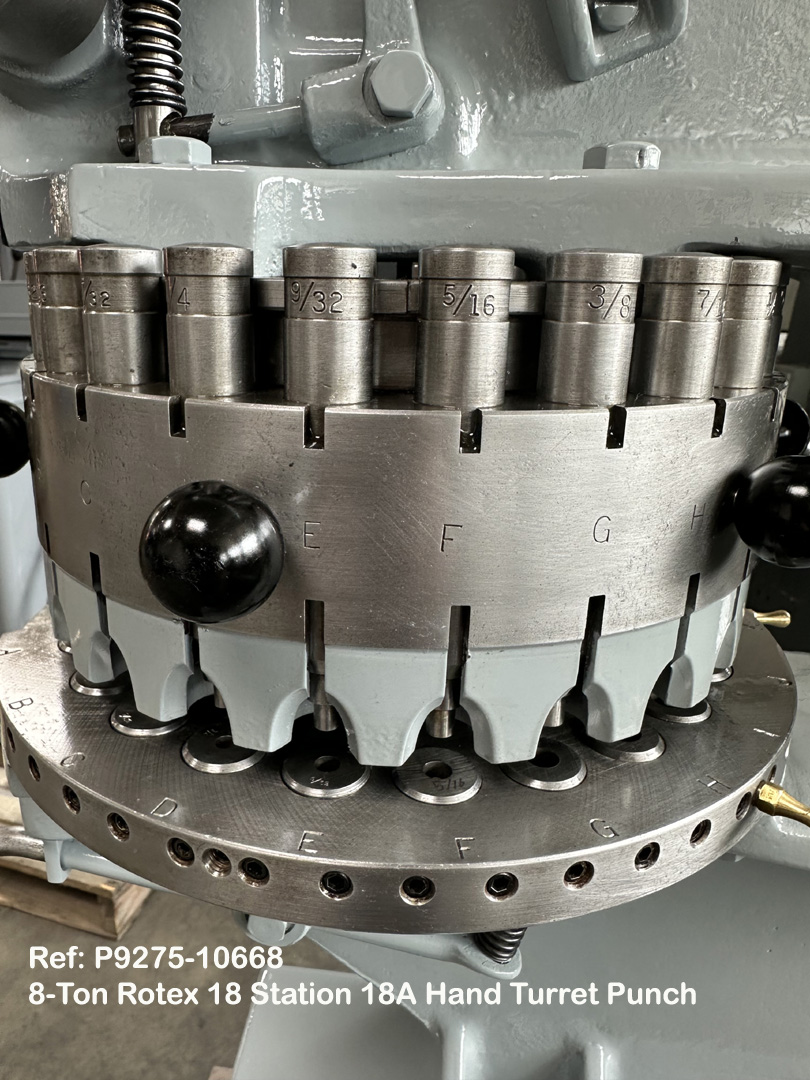

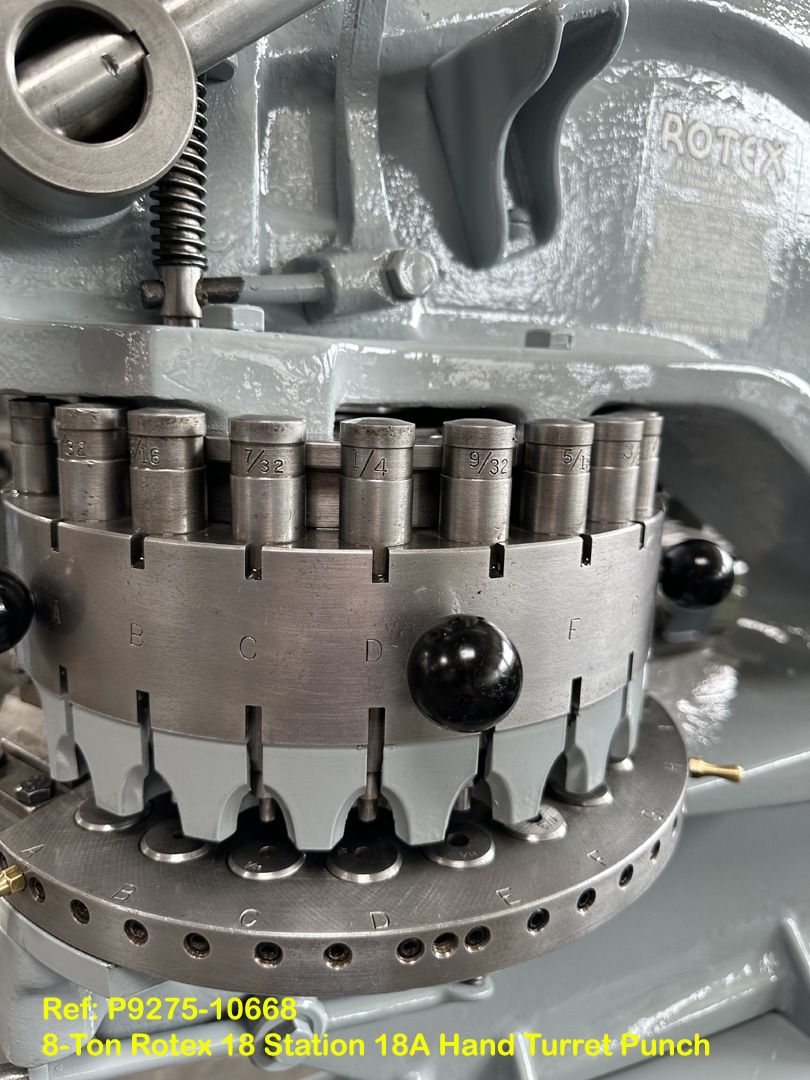

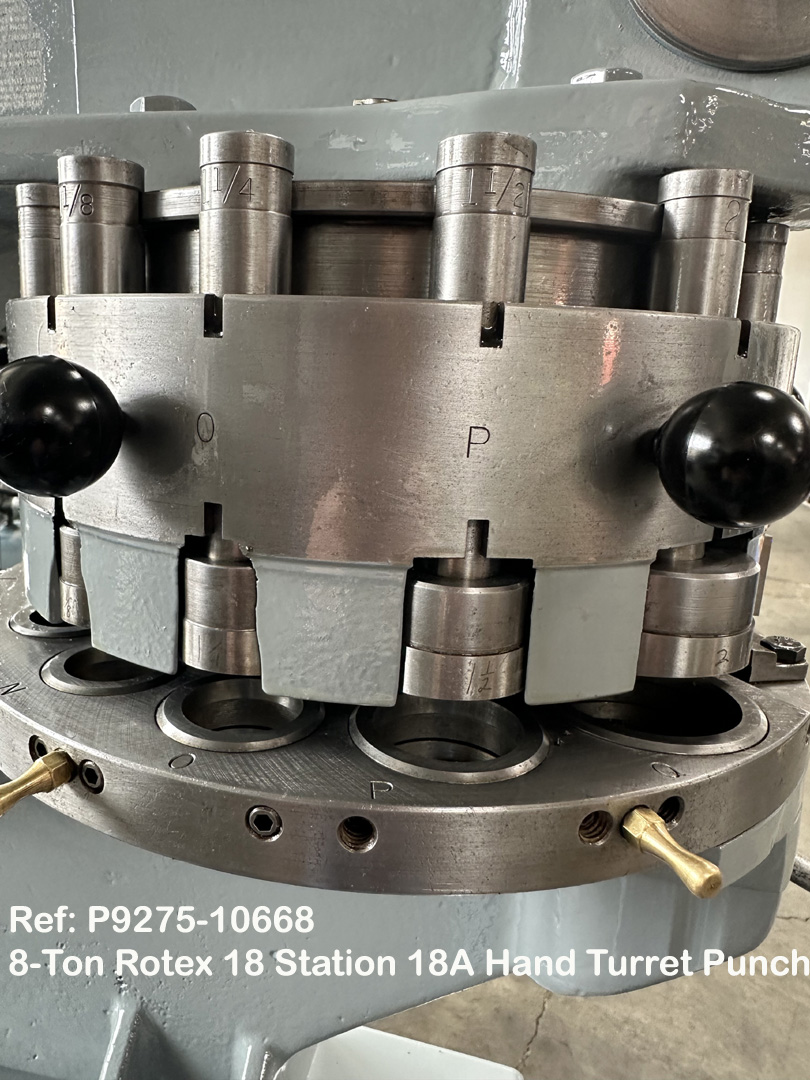

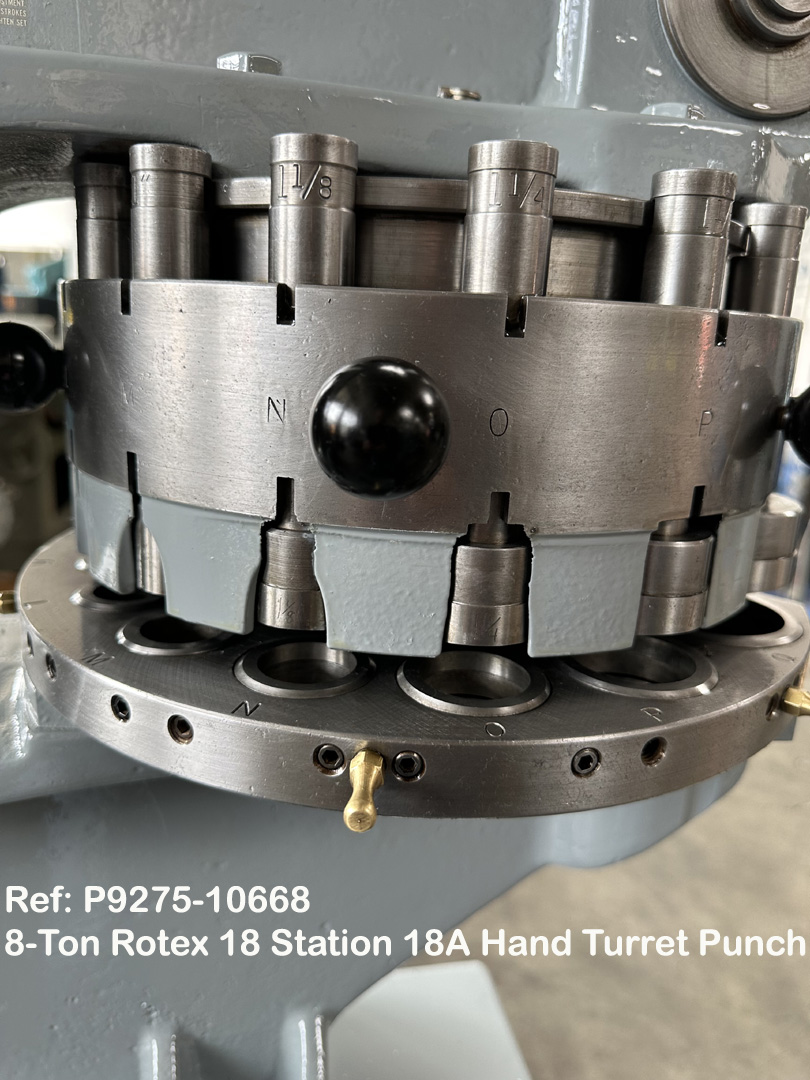

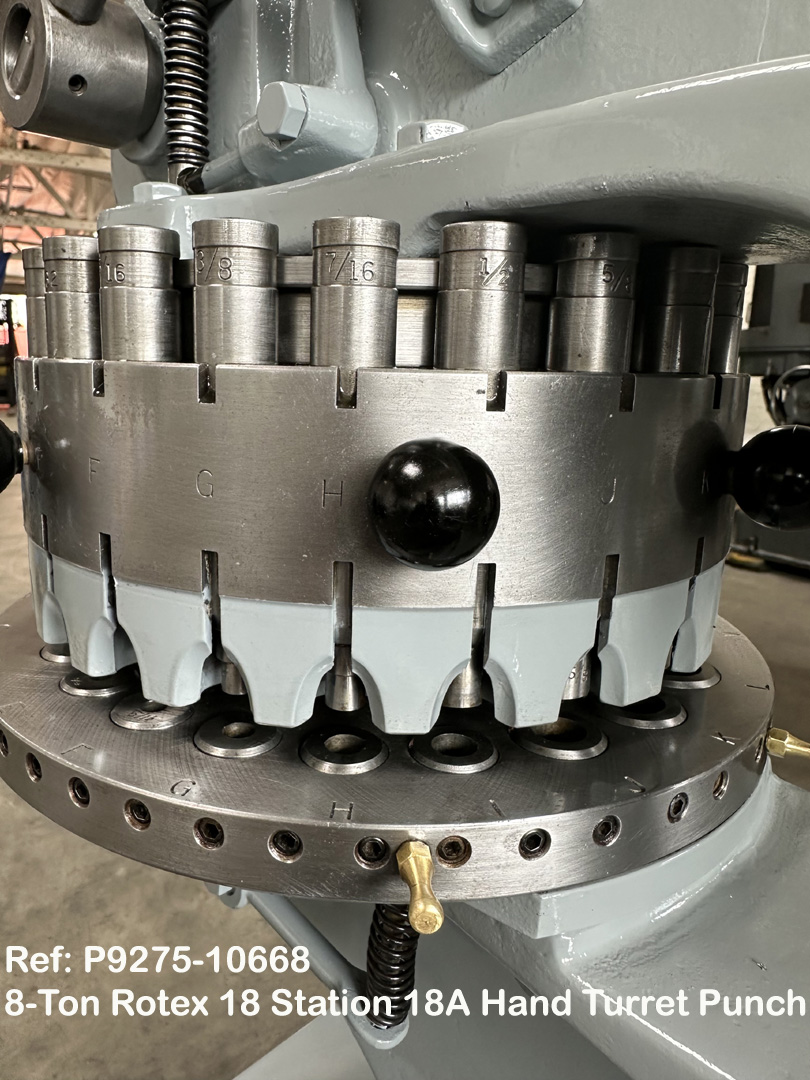

8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-13, Close up Punch Stations

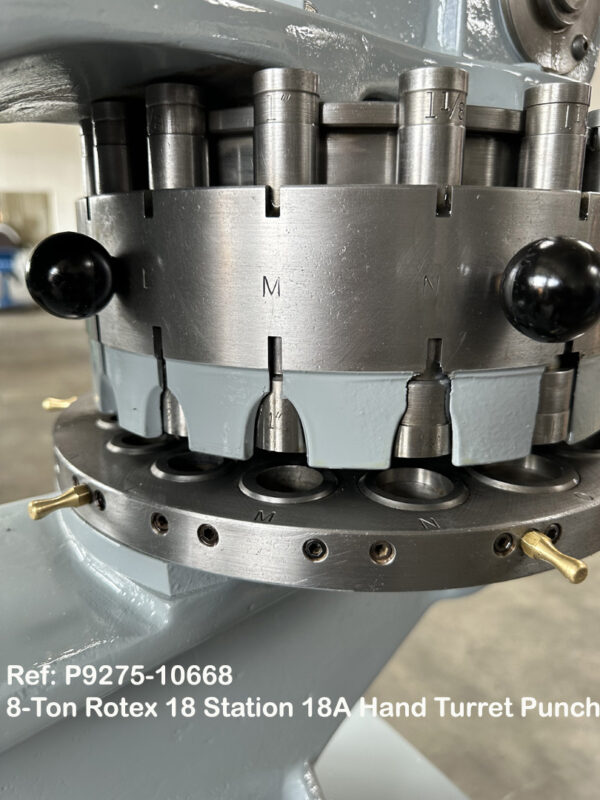

8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-12, Close up Punch Stations

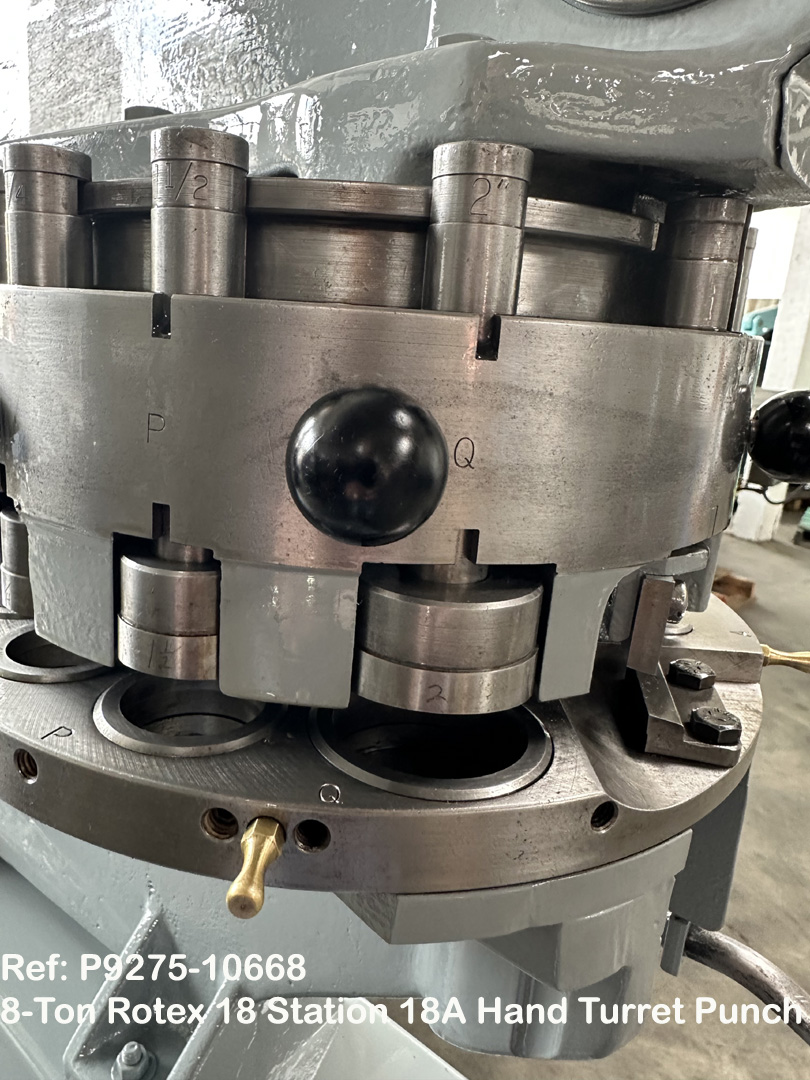

8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-11, Close up Punch Stations
8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-10, Close up Punch Stations
8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-9, Close up Punch Stations
8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-8, Close up Punch Stations

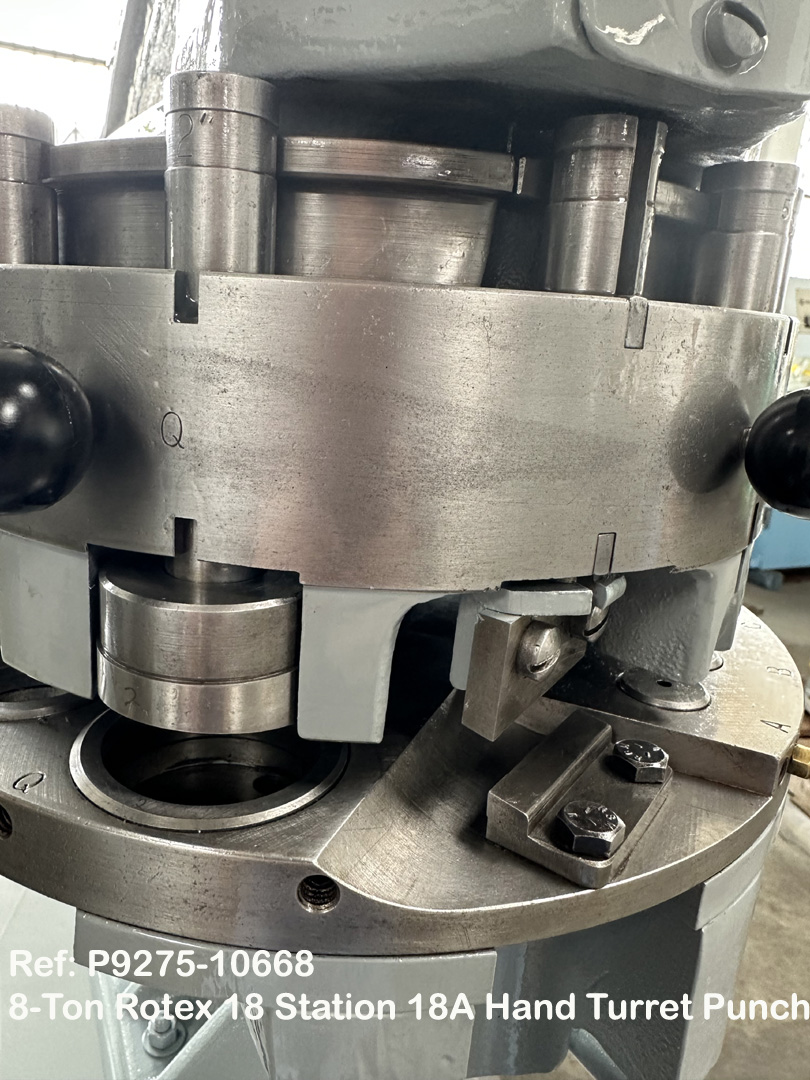

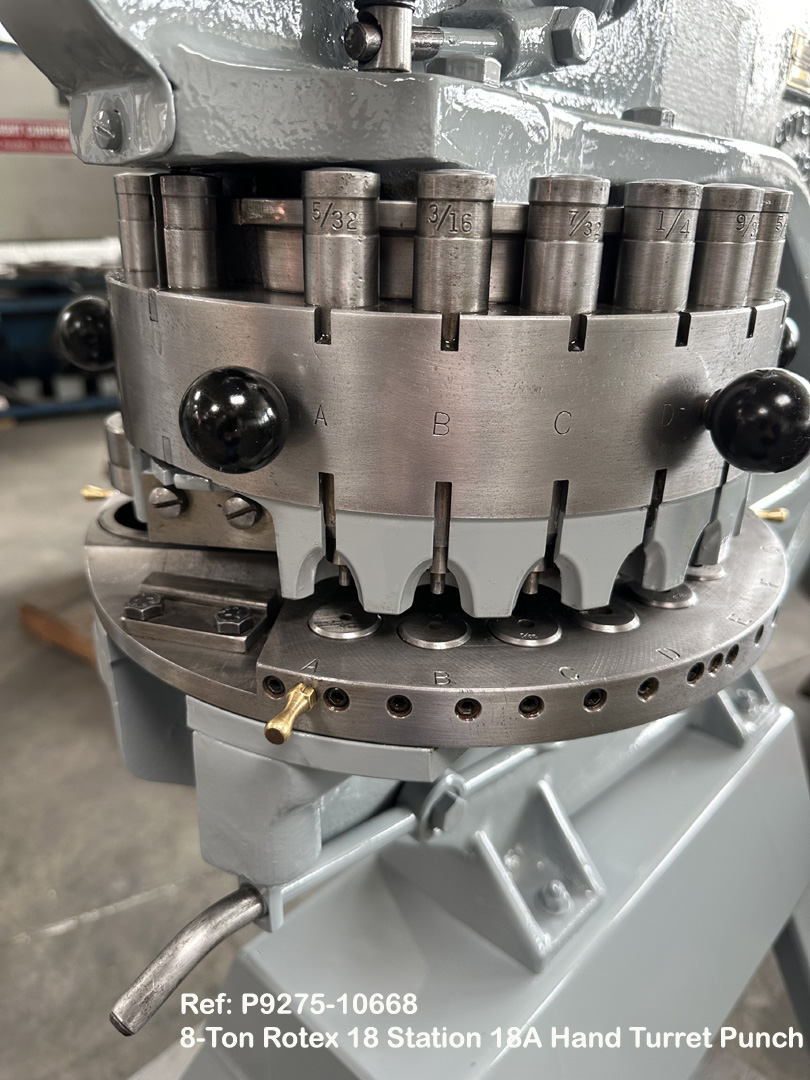

8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-7, Close up Shear and Punch Stations
8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-6, Close up Shear and Punch Stations

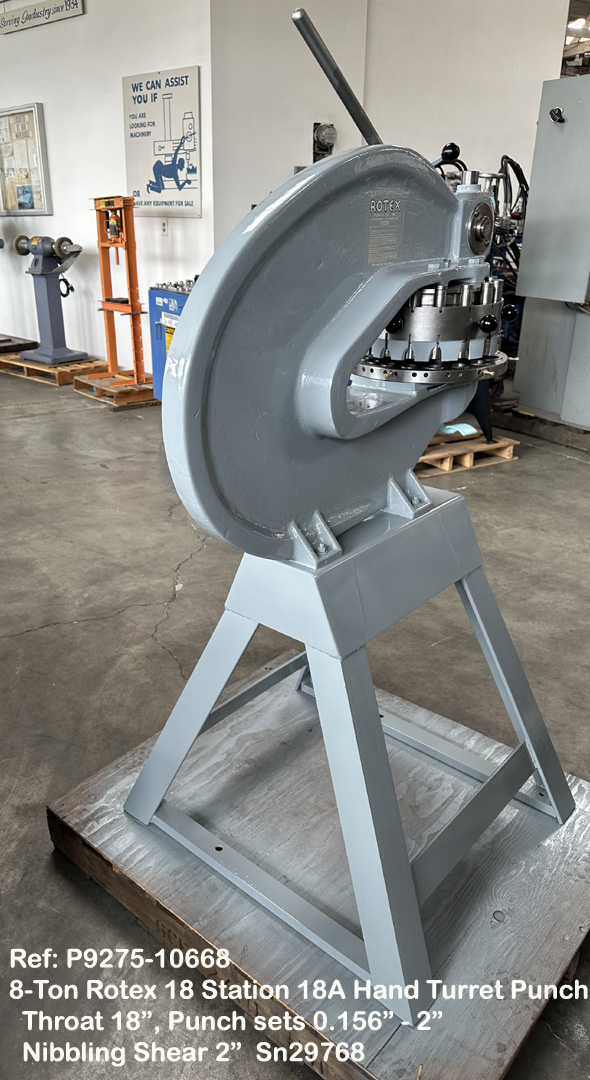

8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-4, Rear to Left side view

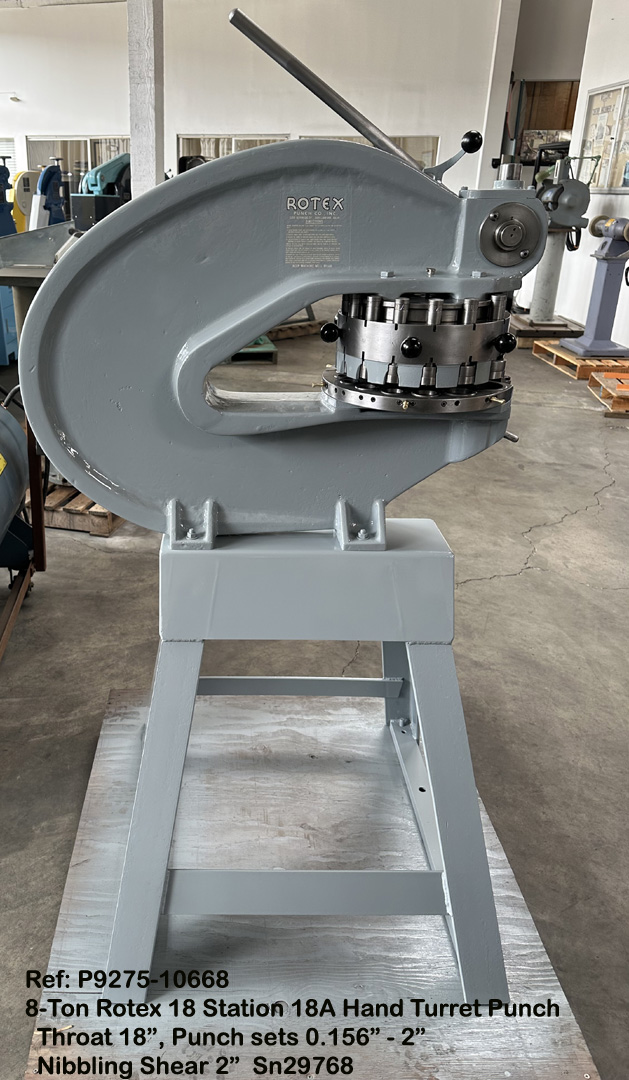

8-Ton Rotex 18 Station Model 18AK Hand Turret Punch, Throat 18 inch, Punch sets 0.1562 inch thru 2 inch Nibbling Shear 2 inch, Sn13693, Reference 10668-3, Left side view

LIKE NEW 8 tons Rotex 18 Stations 18″ throat Model 18AK Turret Punching Machine – Punch and Die Set thru 2″ diameters – Shear 2″ wide, Serial Number 13693, Inventory Reference P9275-10668

8 tons Rotex 18 Stations 18″ throat Model 18AK Turret Punching Machine – Punch and Die Set thru 2″ diameters – Shear 2″ wide, Condition LIKE NEW- VERY LITTLE USE, Inventory Reference P9275-10668

Model Number: 18-AK

Serial Number: 10668

Reference No: Turret Punch Machine & P9275-10668

Condition: LIKE NEW Very little Use

Mfg Date:

Model Number 18-AK

Serial Number 10668

Reference Number Turret Punch Machine & P9275-10668

Read More
1-213-627-2847
Category: Tags: , , Brand:

Description

LIKE NEW  8 tons Rotex 18 Stations 18″ throat Model 18AK  Turret Punching Machine

Serial Number 13693 Codition LIKE NEW, VERY LITTLE USE

SPECIFICATIONS:
CAPACITY:
    Tons 8
    Hole Punching Capacity, with current die set Maximum 2" Speial Die Clearance the following apply in punching mild steel
       3/32" - 9/64" inclusive will punch 14 gauge.
       5/32" - 15/64" inclusive will punch 10 gauge.
       ¼" - 3/8" inclusive will punch ¼" thick.
       25/64" - 7/8" inclusive will punch 10 gauge.
      57/64" – 1½" inclusive will punch 12 gauge.
      1-33/64" – 2" inclusive will punch 14 gauge.
  Hole Punching Capacity, Maximum  2"
THROAT DEPTH 18"
TURRET:
    Number of Stations 18
EQUIPPED WITH: Round Punch Set through 17th station
Round (1) 5/32",  (1) 3/16", 7/32"  (1) 1/4",  (1) 9/32",
    (1) 5/16",  (1) 3/8", (1) 7/16",  (1) ½",  (1) 5/8",
    (1) 3/4",  (1)7/8",  (1) 1",  (1) 1¼",  (1) 1½", (1) 2"
    SPARE PUNCH SETS:  (1) ¾",  (1) 15/16”,
(1) 2" wide Nibbler Shear located 18th station
COMPLETE FACTORY SAFETY GUARDS

Dimensions: 27" L-R x 36" F-B x 69" Height Handle Up / 58"
Approximate Weight 500 lbs.
Our price to you at our Los Angeles, CA. warehouse is $ PRICE UPON REQUEST You may view this turret punch at our showroom or view at our website, www.centurymachinery.com Respectfully submitted,
CENTURY MACHINERY CO., INC







8 tons Rotex 18 Stations 18″ throat Model 18AK Turret Punching Machine – Punch and Die Set thru 2″ diameters – Shear 2″ wide, Condition LIKE NEW- VERY LITTLE USE,  Serial Number 13693, Inventory Reference P9275-10668
