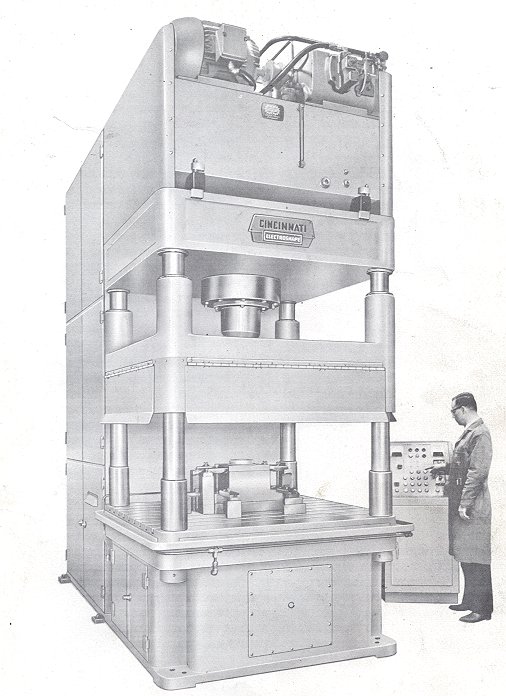

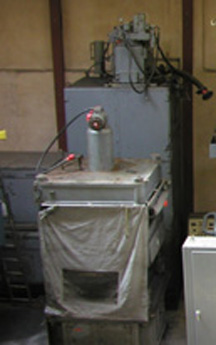

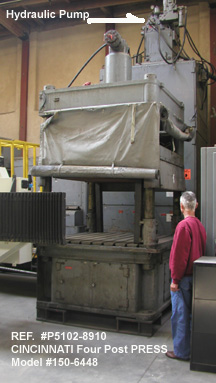

CINCINNATI ELECTROSHAPE METAL FORMING PRESS
Model 150-6448, DOWN ACTING Serial Number 34315
“THIS UNIT MAY ALSO BE USED AS STANDARD FOUR POST PRESS”
SPECIFICATIONS
FOUR POST
FLUSH FLOOR MOUNTED
CLAMPING TONS 100
RAM STROKE 36"
SHUT HEIGHT:
Open 42" Closed 12"
FOUR POSTS:
Distance Between Posts, L-R x F-B 50" x 50"
USEFULL AREA 64" X 48"
BED: Overall Top and Bottom:
Size L-R x F-B 64" x 64"
Bed Height above Floor 42"
T-Slots Seven
OUTPUT POWER UNIT 150,000 Kilojoules or 109,000 foot pounds of energy.
VACUUM PUMP:
Draws vacuum to about 29" Mercury

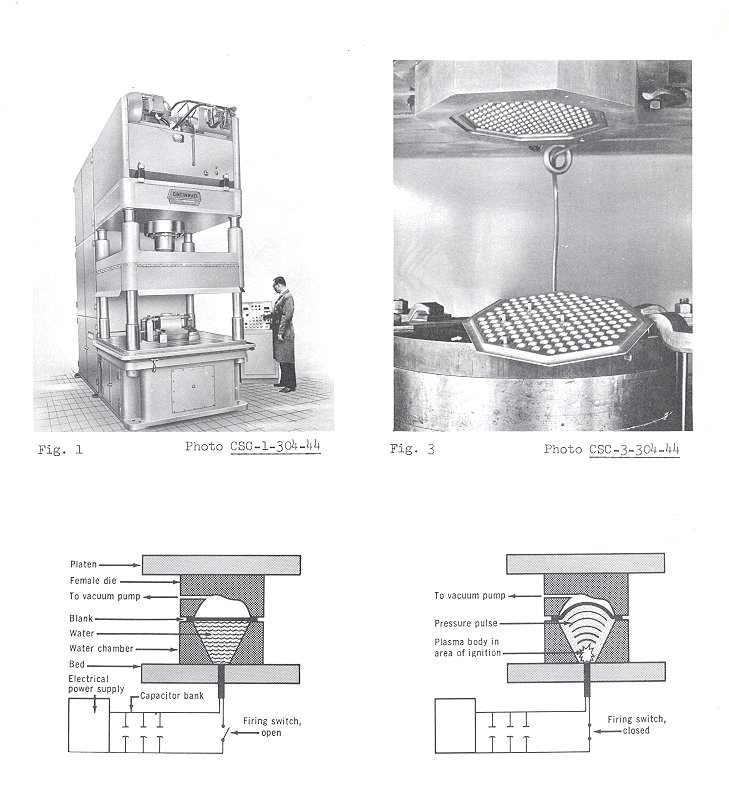

Machine stores electrical energy at a high voltage in the capacitor bank. Capable of producing 150,000 joules.
NOTE: The Electroshape method of converting electrical energy to hydraulic energy utilizes a simple spark plug type of transducer.
OPERATOR CONTROLS CONSOLE *Control voltage 110 volts, 24 volts*
Operator can run machine, Manually,
Semiautomatic or Automatic.
Master Manual / Off / Auto Switch.
Master Start / Stop Buttons.
Main H.V. Start / Stop Buttons.
Hydraulic Motor Off / Manual / On Switch.
Hydraulic Motor On / Off Switch.
Vacuum Off / Manual / On Switch.
Hydraulic / Vacuum Bypass Button.
Auto Cycle Button.
Manual Fire Button.
Ram Hold Button.
Ram Up & Down Buttons.
INDICATOR LIGHTS: Power On, Hydraulic Pump, Hydraulic Press,
Vacuum Pump, Door Closed, Over Voltage, Shorting Switch/ Light, Manual,
Automatic Cycle, Ready Fire, DC Amp. Meter. Kilo Volts Meter.
KVA Dial. Voltage Dial Count Meter.
EQUIPPED WITH:
Vacuum Gage.
Pressure Gage.
Pressure Control Valve.
Idle Balance Valve.
MOTOR DRIVES: *Wired 440 volts, 3 phase*

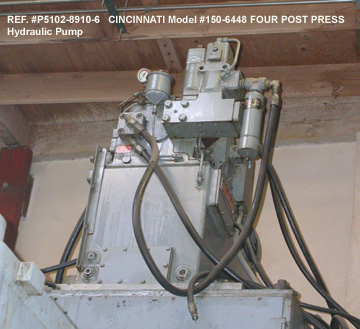

Hydraulic Pump 30 H.P. 220/440 volts
Vacuum Pump ½ H.P. 220 / 440 volts
Water Pump ⅛ H.P. 220 / 440 volts
COMPLETE FACTORY SAFETY GUARDS
Press: 64" L-R x 73¼" F-B x Ht. 17’-10" Operators Console 24" x 24 Wt. Press 34,500lbs.
Power Unit: 63"½" L-R x 70" x 12’-6¾" Ht. Wt. 21,500 lbs.
