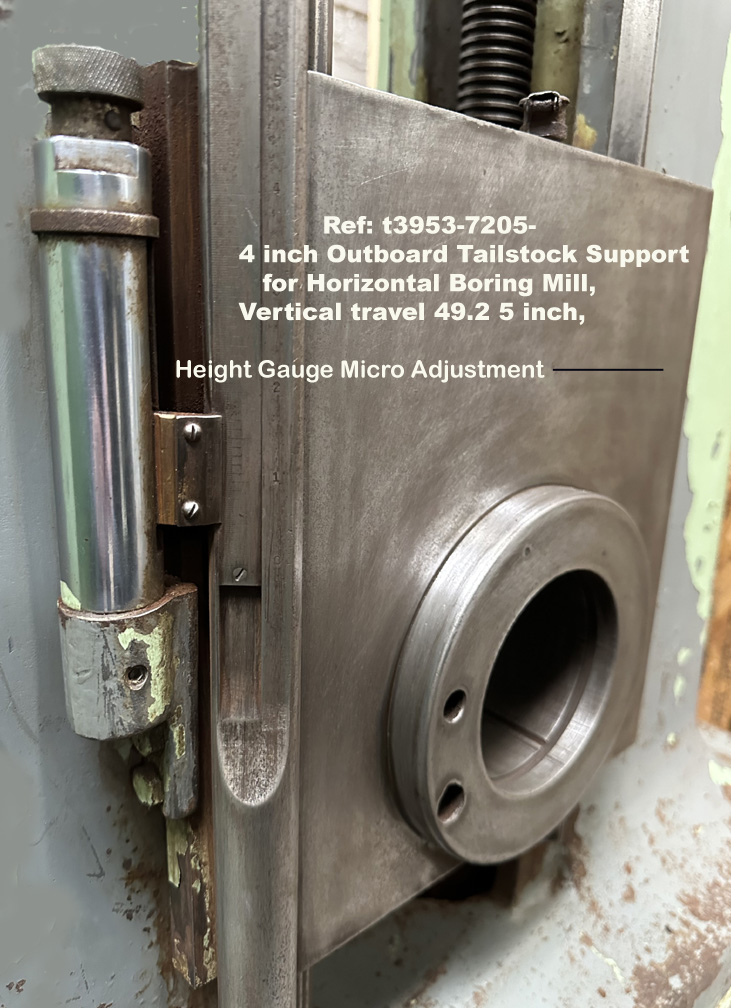

4 inch Outboard Tailstock Support for Lucas Horizontal Boring Mill, Vertical travel 49.2 5 inch, ID Number 476-7-91, Ref 7205-2, 4 inch Outboard Tailstock Support for Lucas Horizontal Boring Mill, Vertical travel 49.2 5 inch, ID Number 476-7-91, Ref 7205-5, Vertical Height Micro Adjustfment

4″ Outboard Tailstock Support – Vertical Travel 49.25″ for Horizontal Boring Mill – Boring Bar, ID Number 476-7-91, Inventory Reference T3953-7205

4″ Outboard Tailstock Support – Vertical Travel 49.25″ for Horizontal Boring Mill – Boring Bar, Inventory Reference T3953-7205

Model Number: 4" Outboard Tailstock Support

Serial Number:

Reference No: Out-board Support for Boring Bar & T3953-7205

Condition: Used

Mfg Date:

Model Number 4" Outboard Tailstock Support

Serial Number

Reference Number Out-board Support for Boring Bar & T3953-7205

Read More
1-213-627-2847
Categories: , , , , , , Tags: , , Brand:

Description

4″ OUTBOARD TAILSTOCK SUPPORT 49¼” Vertical Travel for HORIZONTAL BORING MILL

   Table Type Bar,  Maybe from Lucas Mfg.     I.D.476-7-91
   Condition: Very Good to Excellent

SPECIFICATIONS
     BAR DIAMETER 4"
     VERTICAL TRAVEL 49¼"
     BASE SIZE: Fits ways that are, Thick 2¾"
     BASE OVERALL WIDTH 36"
        Left Ways Area 12" wide, with 11” to cc nut from outside of way.
        Center 9-1/8" wide
        Right Way Area 11-7/8" wide, (That is on support lock nut side.)
COMPLETE FACTORY SAFETY GUARD

Dimensions:  Overall Base 18" F-B x 48" L-R x  82" Height
Please fill out request quote for Best possible price.
