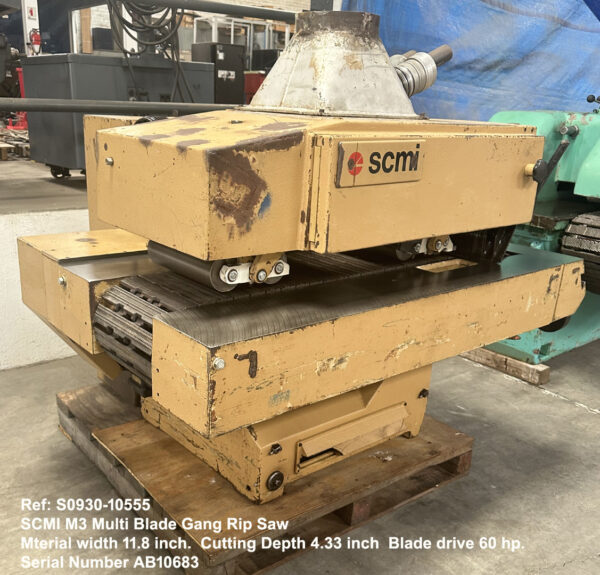

SCMI M3 Multi Blade Gang Rip Saw, Width 11.8 inch Depth 4.33 inch, Minimu board length 18 inch, Blade drive 60 hp Sn AB10683., view Left end to front. Ref 10555-1

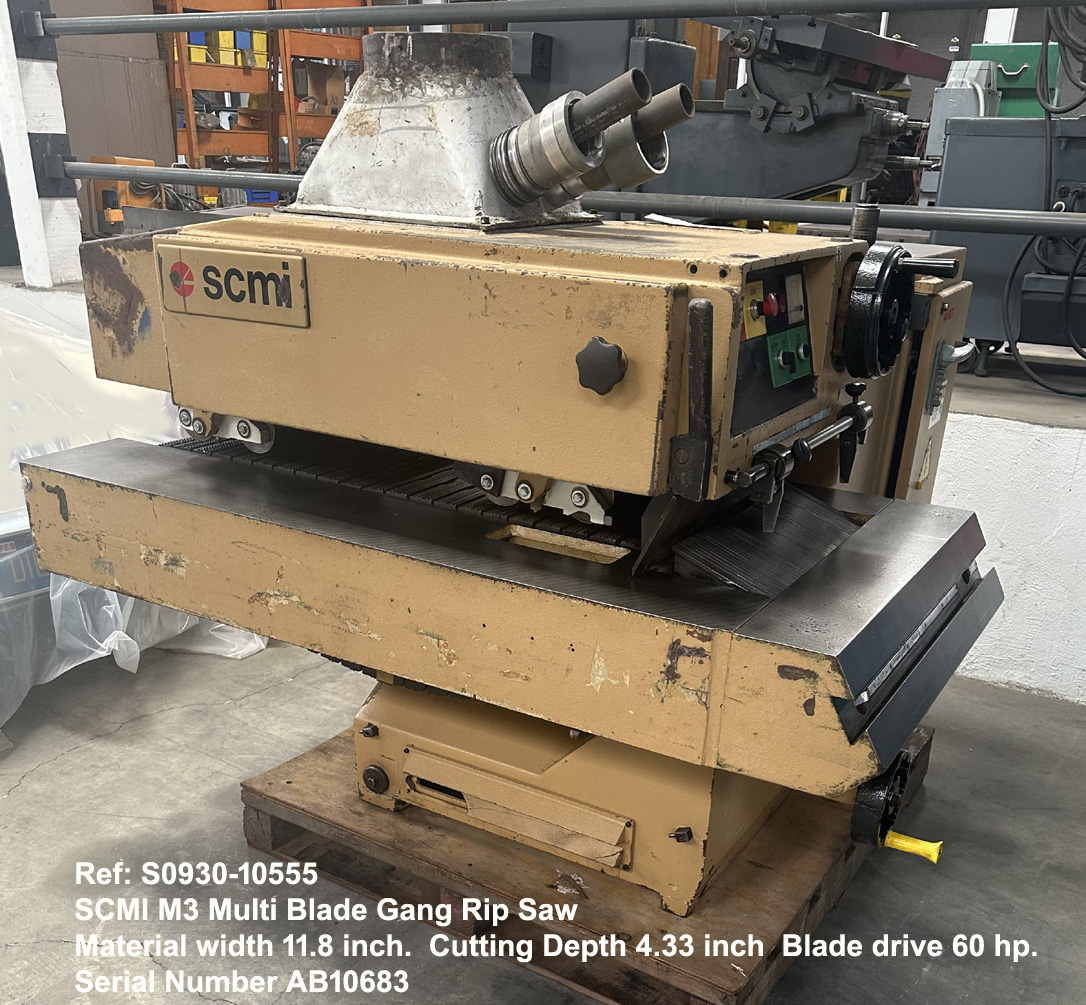

SCMI M3 Multi Blade Gang Rip Saw, Width 11.8 inch Depth 4.33 inch, Minimu board length 18 inch, Blade drive 60 hp Sn AB10683., Front to Right end. Ref 10555-2

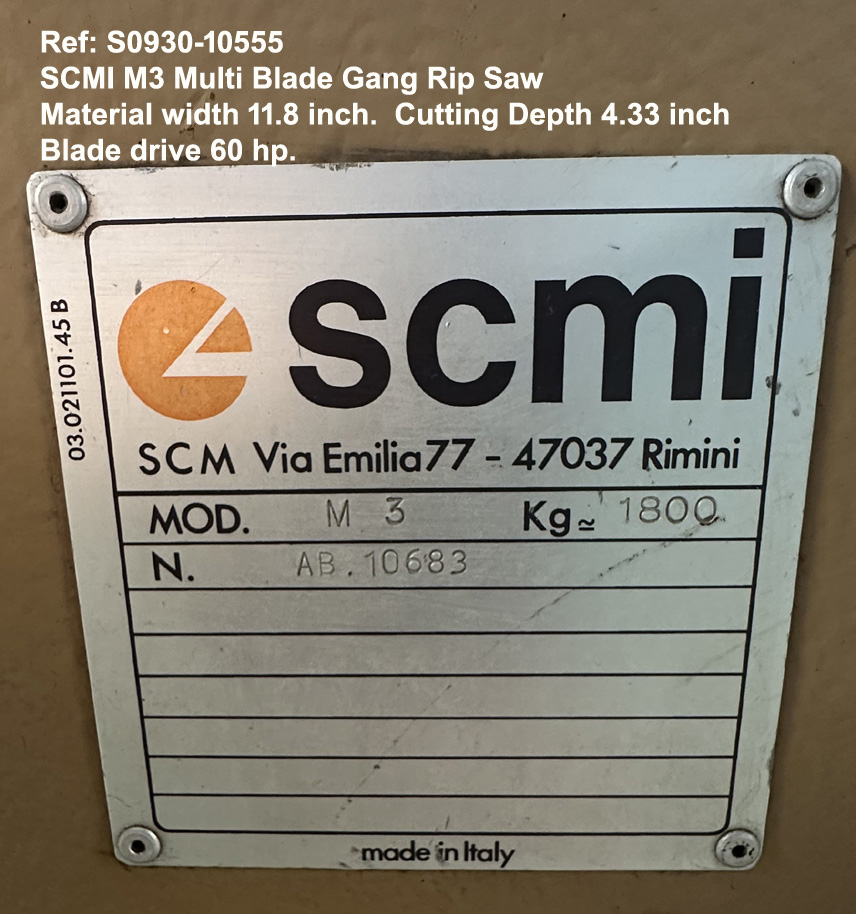

SCMI M3 Multi Blade Gang Rip Saw, Width 11.8 inch Depth 4.33 inch, Minimu board length 18 inch, Blade drive 60 hp Sn AB10683., view ID Tag. Ref 10555-10

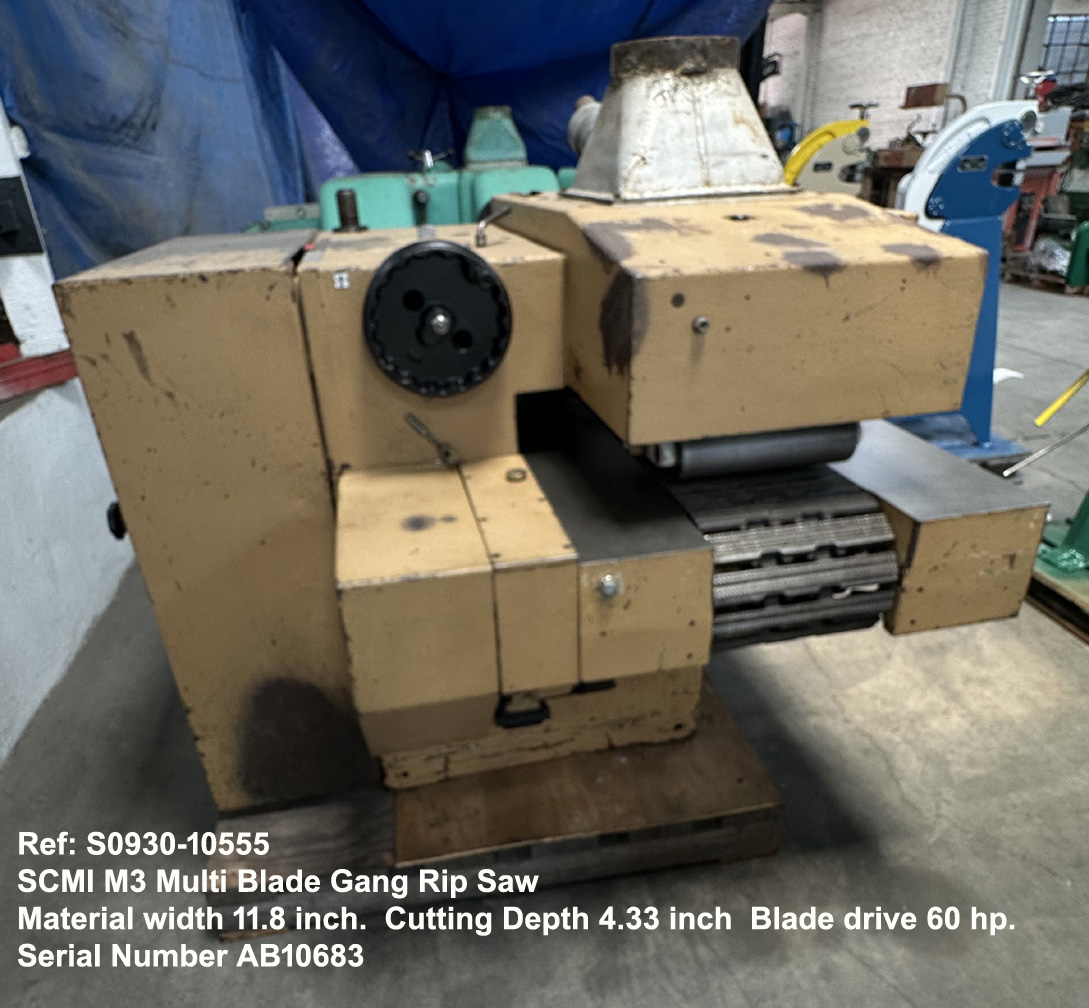

SCMI M3 Multi Blade Gang Rip Saw, Width 11.8 inch Depth 4.33 inch, Minimu board length 18 inch, Blade drive 60 hp Sn AB10683., view Out feed end. Ref 10555-9

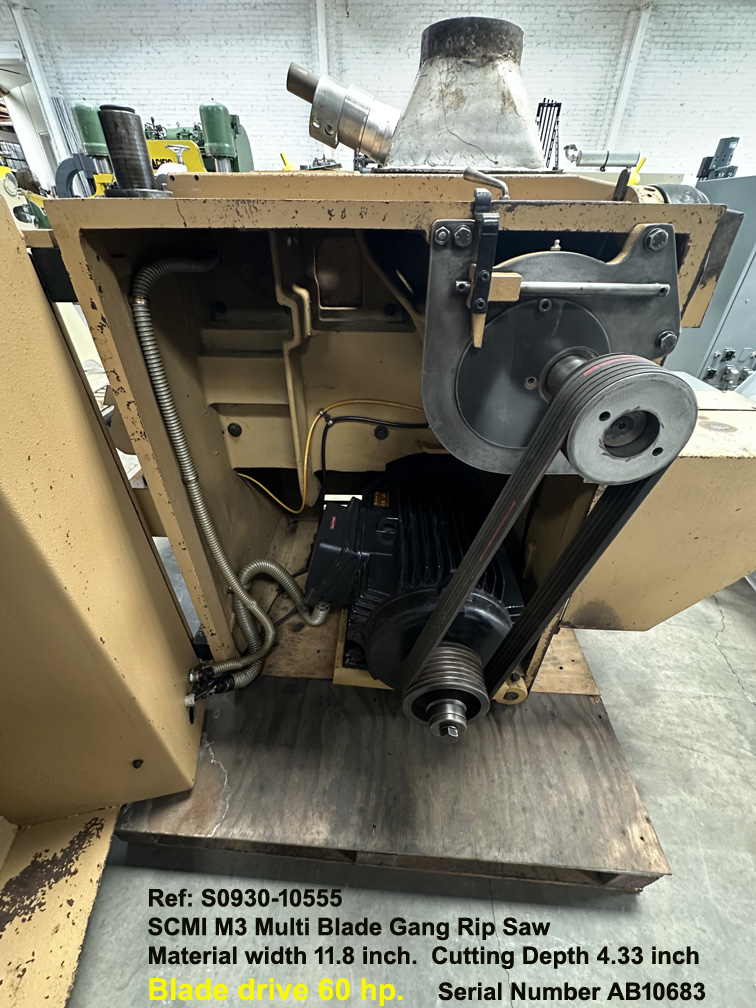

SCMI M3 Multi Blade Gang Rip Saw, Width 11.8 inch Depth 4.33 inch, Minimu board length 18 inch, Blade drive 60 hp Sn AB10683., view 60 hp drive. Ref 10555-8
SCMI M3 Multi Blade Gang Rip Saw, Width 11.8 inch Depth 4.33 inch, Minimu board length 18 inch, Blade drive 60 hp Sn AB10683., view Feed in to rear. Ref 10555-7

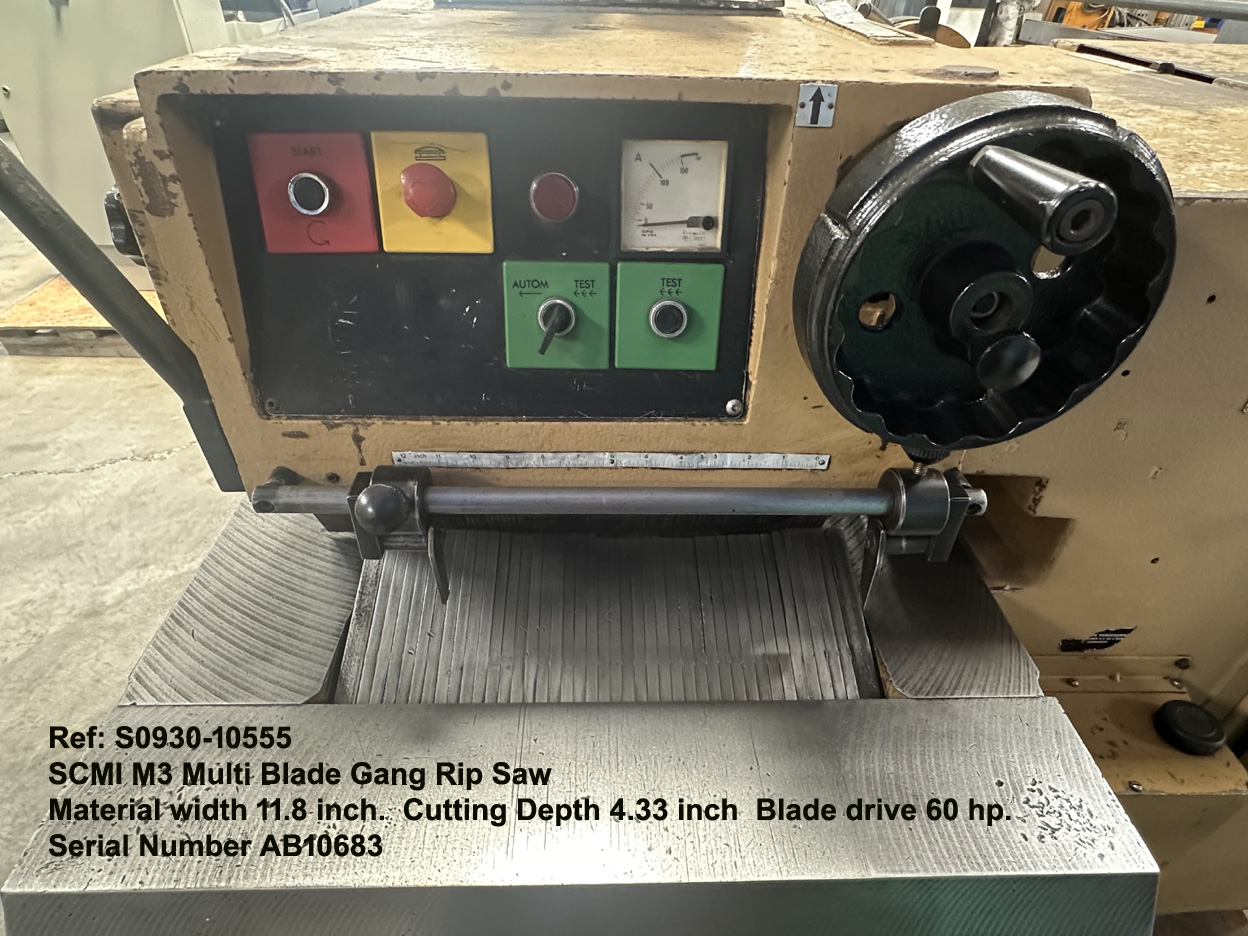

SCMI M3 Multi Blade Gang Rip Saw, Width 11.8 inch Depth 4.33 inch, Minimu board length 18 inch, Blade drive 60 hp Sn AB10683., view Close-up Operator Controls. Ref 10555-6

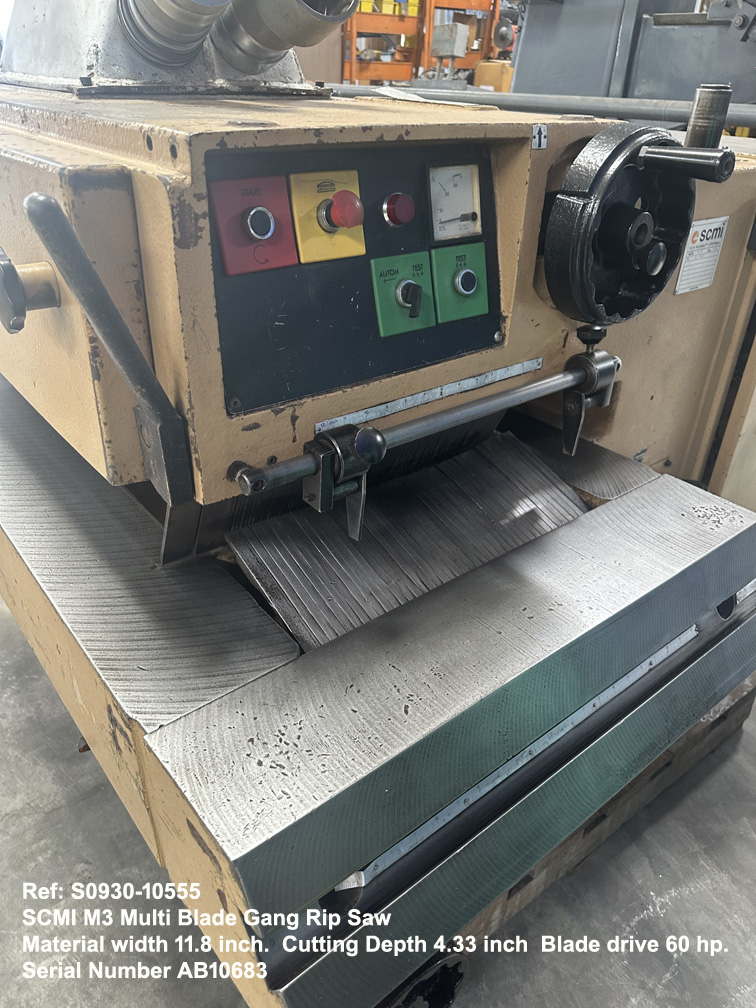

SCMI M3 Multi Blade Gang Rip Saw, Width 11.8 inch Depth 4.33 inch, Minimu board length 18 inch, Blade drive 60 hp Sn AB10683., view Infeed end. Ref 10555-5

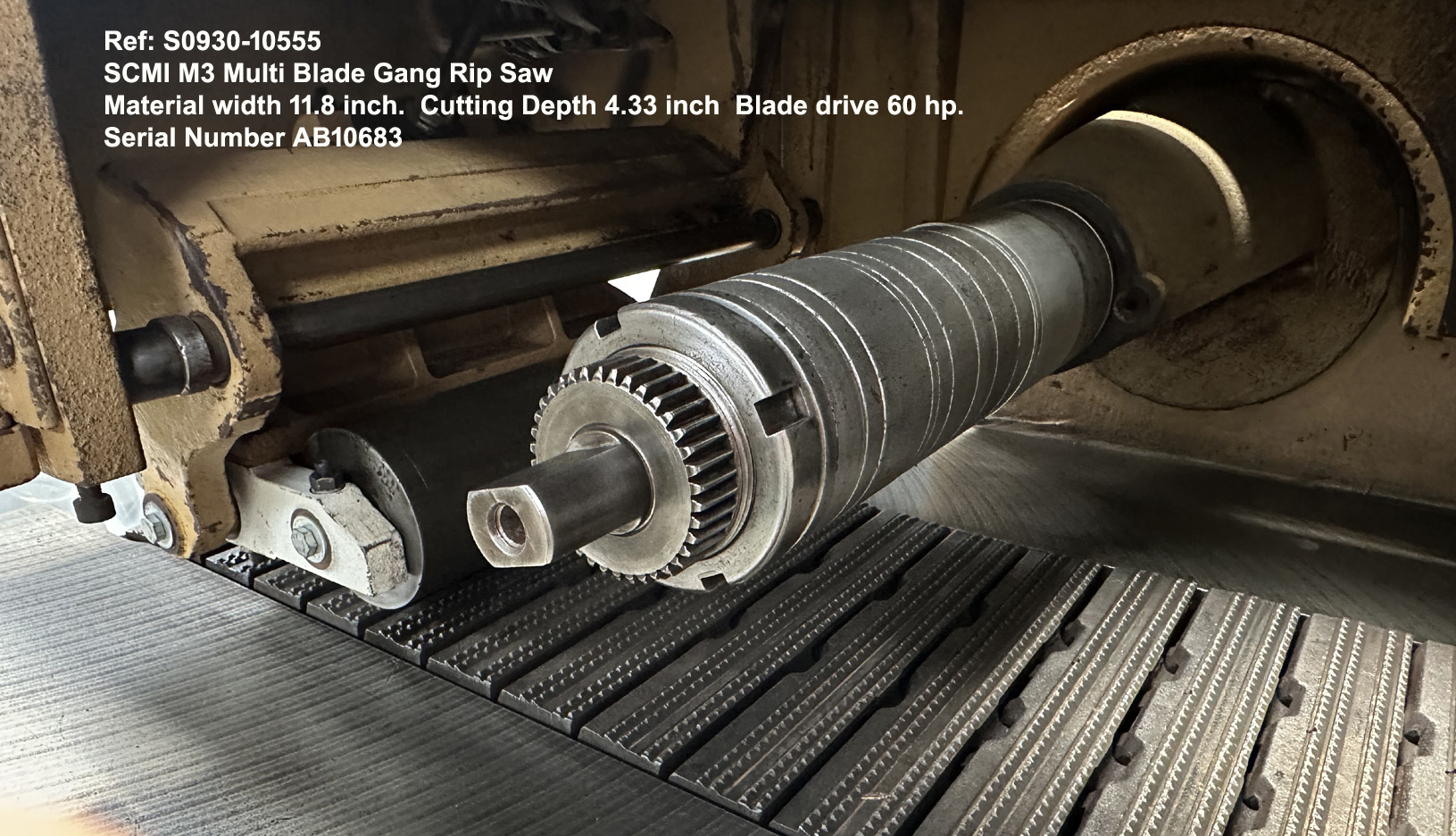

SCMI M3 Multi Blade Gang Rip Saw, Width 11.8 inch Depth 4.33 inch, Minimu board length 18 inch, Blade drive 60 hp Sn AB10683., Close-up Saw Arbor with Blade Spacers. Ref 10555-4

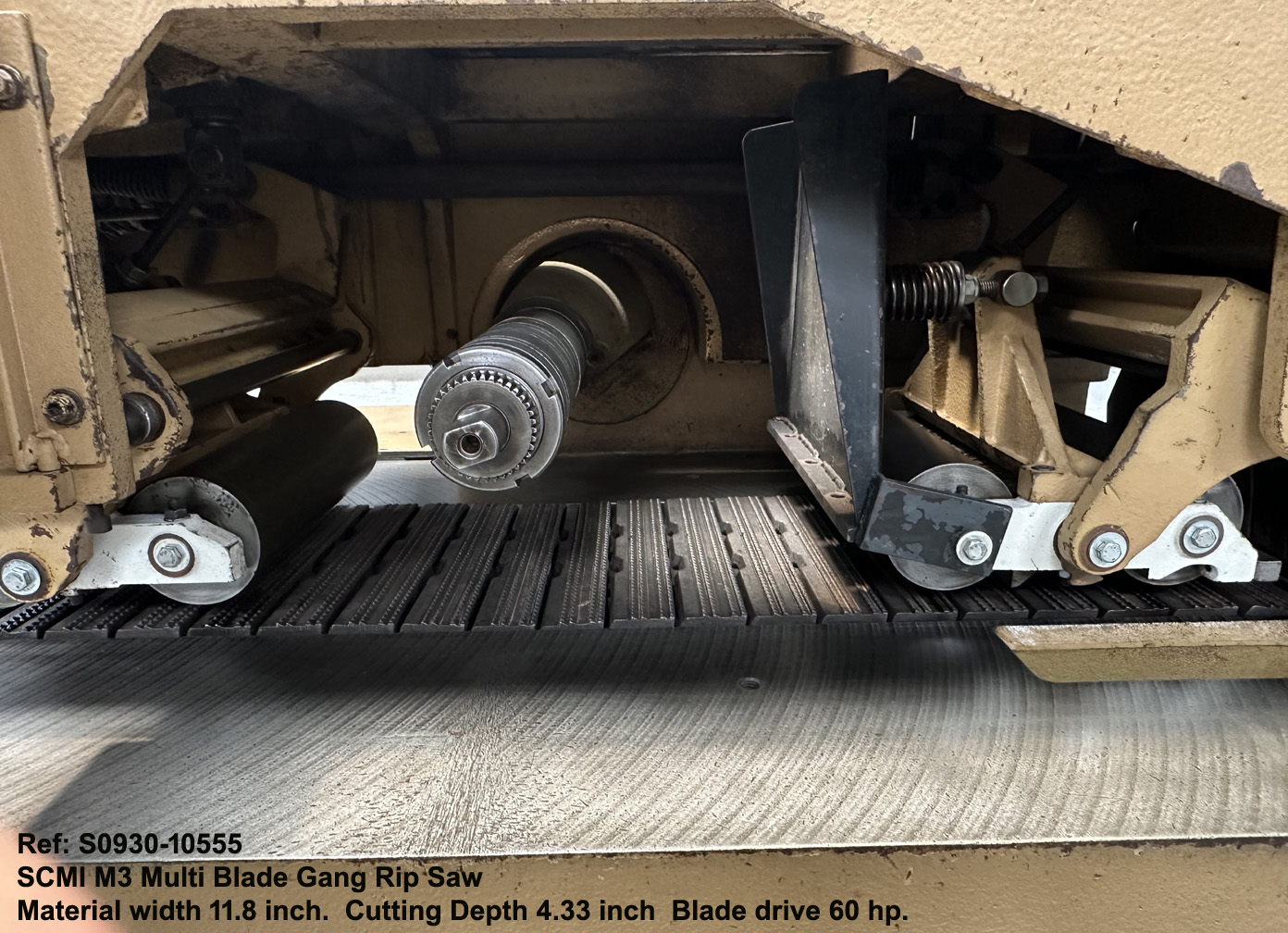

SCMI M3 Multi Blade Gang Rip Saw, Width 11.8 inch Depth 4.33 inch, Minimu board length 18 inch, Blade drive 60 hp Sn AB10683., Close-up Saw Arbor - Inffeed & Outfeed Rollers. Ref 10555-3

SCMI M3 Multi Blade Dip Chain Gang Rip Saw – Material Width 11.8″ – Cutting Depth 4.33″ – Min board length 15.35″ – 60 hp, Sn AB10683, Inventory Reference S0930-10555

SCMI M3 Multi Blade Dip Chain Gang Rip Saw – Material Width 11.8″ – Cutting Depth 4.33″ – 60 hp, Reference S0930-10555

Model Number: M3

Serial Number: AB10683

Reference No: Multi Blade Gang Rip Saw & S0930-10555

Condition: used

Mfg Date:

Model Number M3

Serial Number AB10683

Reference Number Multi Blade Gang Rip Saw & S0930-10555

Read More
1-213-627-2847
Categories: , Tags: , , Brand:

Description

SCMI M3 Multi Blade Dip Chain Gang Rip Saw – Material Width 11.8″ – Cutting Depth 4.33″ – Min board length 15.35″ – 60 hp, Sn AB10683, Inventory Reference S0930-10555

SPECIFICATIONS CAPACITY: WIDTH OF MATERIAL (Overall)………………………………….. 11.81″  (300mm) CUTTING DEPTH Maximum ………………………………………  4.33″   (110mm) THROAT DEPTH:……………………………………………………  8¾”    (222.25mm) MINIMUM STOCK LENGTH……………………………………….. 15.35″ (390mm) BLADE: Blade Diameter: Minimum ……………………………………… 7.87″   (200mm) Maximum ……………………………………..13.78″  (350mm) Arbor diameter  …………………………………………………………..,..  2.75″ 69.85mm) Blade Speed……………………………………………………… 4,200 rpm FEED SPEEDS Variable Speed…………………………………… 19-157 fpm (6-48 mpm) MOTOR DRIVES:  wired 440 volts, 3 phase Spindle………………………………………………………………….. 60 hp (44.13kw) 220/440v Chain…………………………………………………………………..   2hp (1.8w) 220/440v CONTROLS: Blade Start / Stop Buttons.  Auto/Test Switch.  Test Button. Feed Start Button.  Motor Load Meter.     Manual Blade Height adjustment.   Manual Vari Feed EQUIPPED WITH: Infeed and Outfeed Rollers. Variable speed drive feed chain Motor. Top & Bottom Anti-kickback Fingers. Automatic Chain Lubrication. 1-Saw Blade Arbor.     Large selection of Blade Spacers. 1- Dust Hood COMPLETE FACTORY SAFETY GUARDS
Dimensions  59" F-B x 67" L-R x 57" Ht  (1498.6 x 1701.8 x 1447.8mm
Approximate Weight 4,500 lbs.(2.04 TM)
Our price to you at our Los Angeles, CA showroom is $ POR
