Sale!

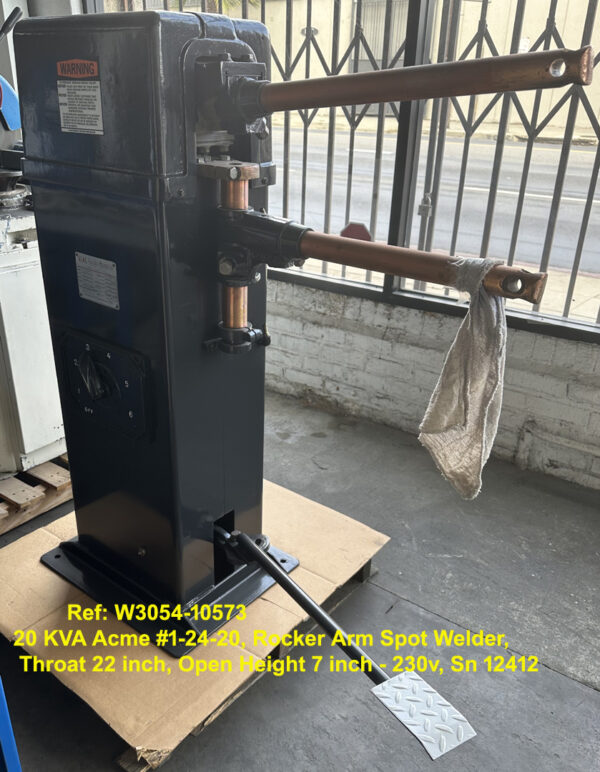

20 KVA Acme model 1-24-20 Spot Welder,Rocker Arm, Throat 24 inch, Gap 5 inch - 230 volts Sn 12412, Front view, Ref 10573-1

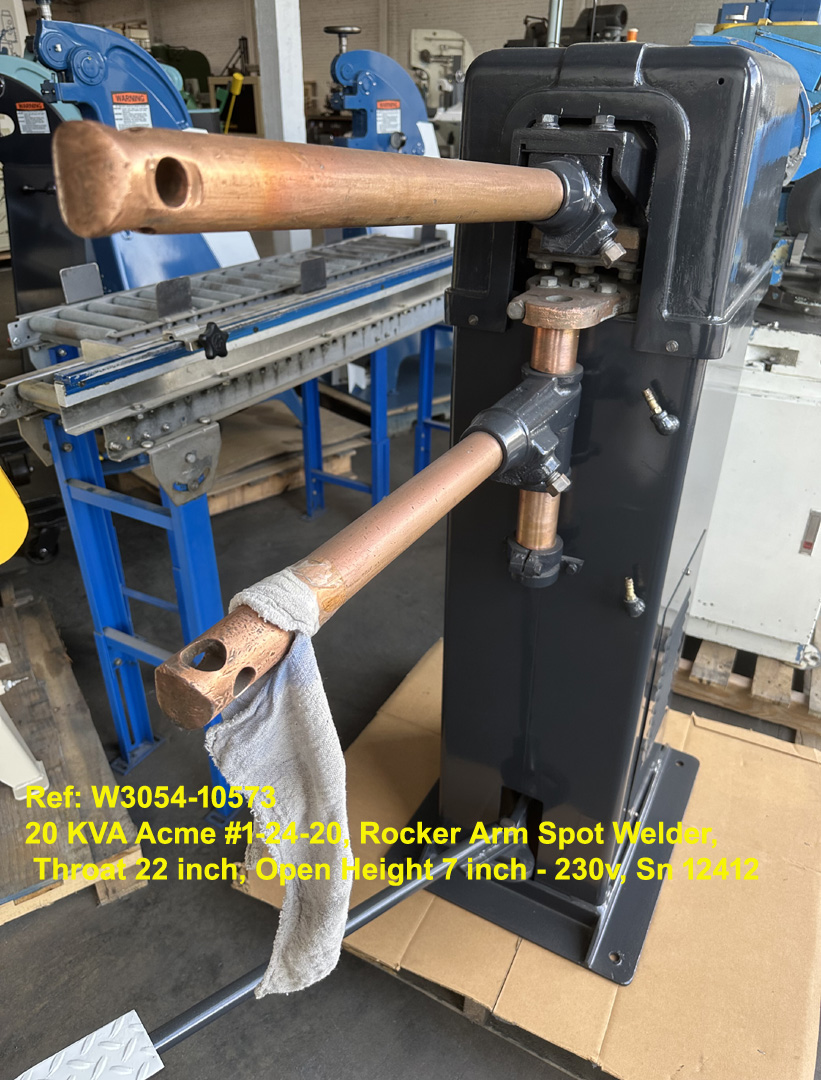

20 KVA Acme model 1-24-20 Spot Welder,Rocker Arm, Throat 24 inch, Gap 5 inch - 230 volts Sn 12412, Front, Ref 10573-2

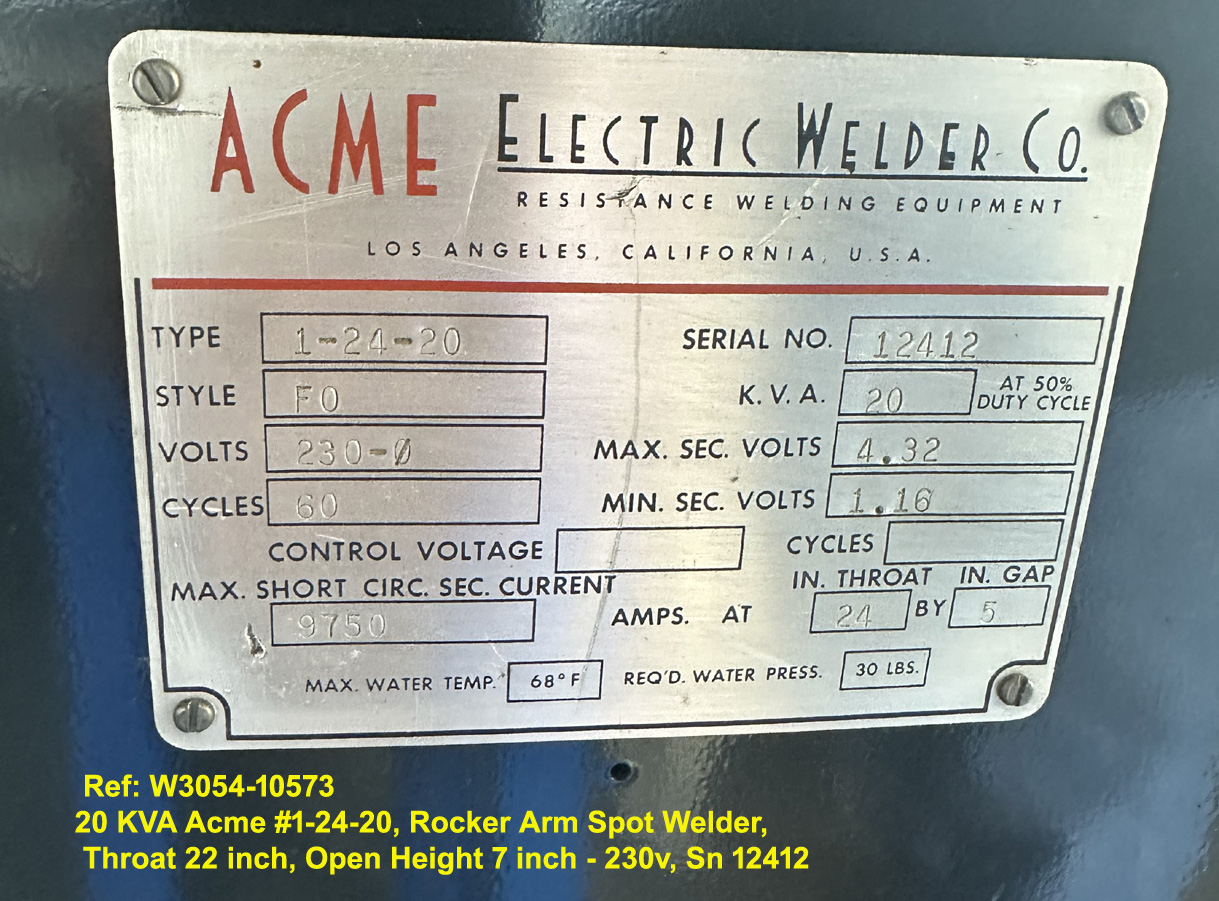

20 KVA Acme model 1-24-20 Spot Welder,Rocker Arm, Throat 24 inch, Gap 5 inch - 230 volts Sn 12412, ID Tag, Ref 10573-7

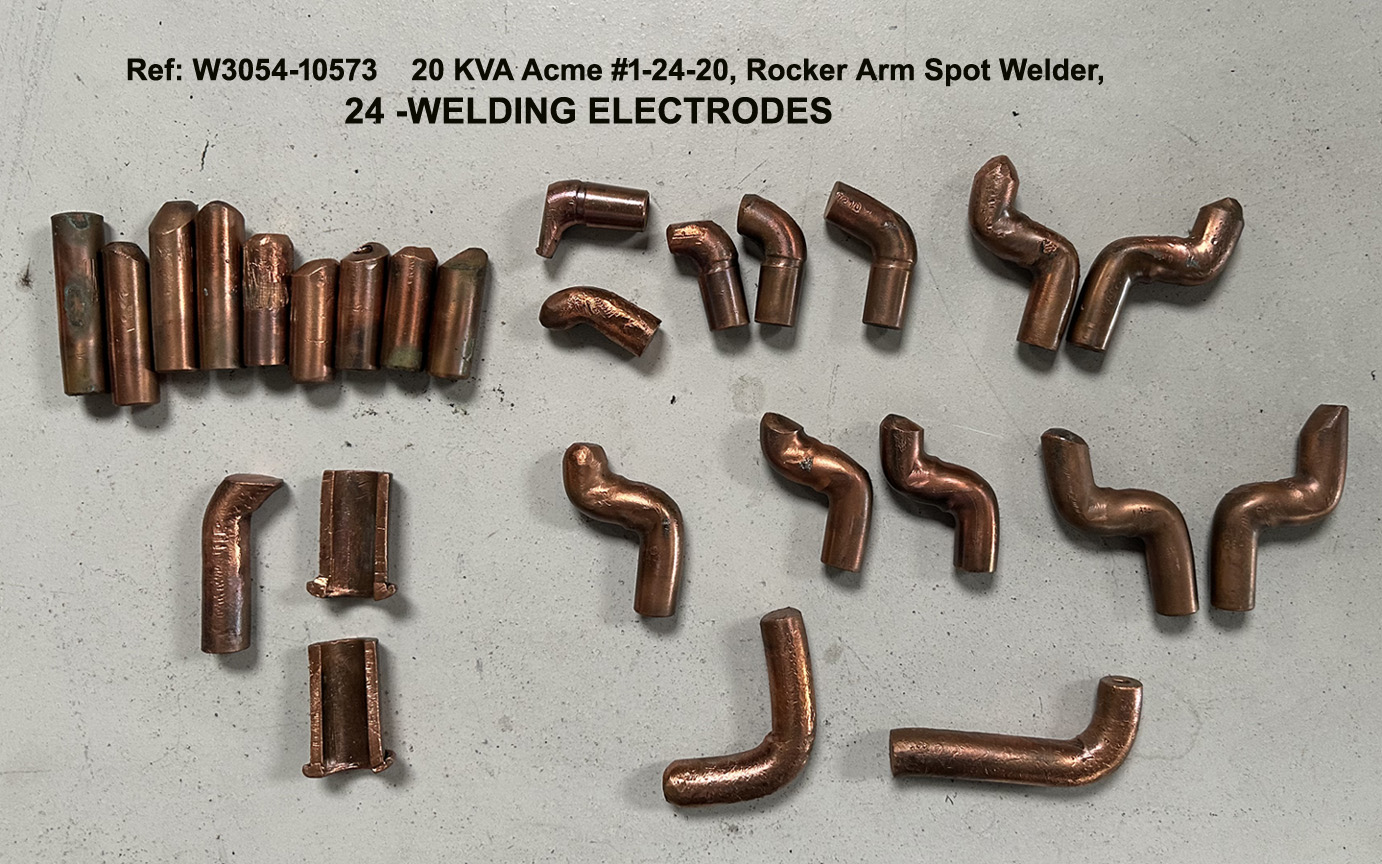

20 KVA Acme model 1-24-20 Spot Welder,Rocker Arm, Throat 24 inch, Gap 5 inch - 230 volts Sn 12412, view of24 Solid copper Electrods, Ref 10573-6

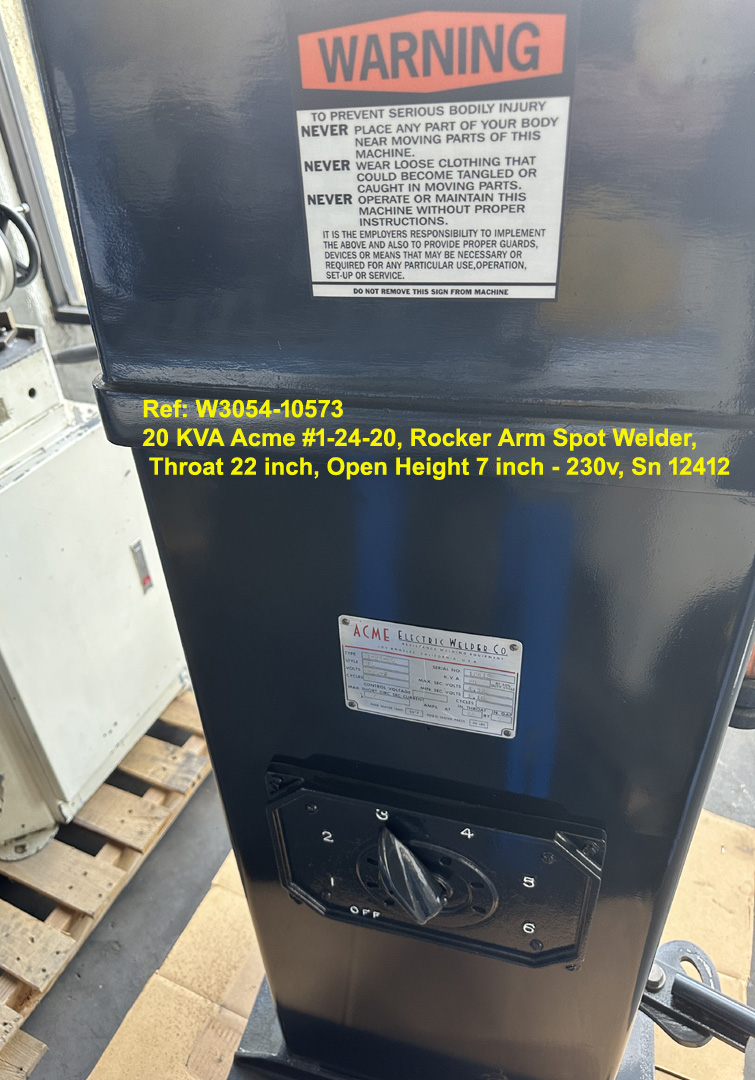

20 KVA Acme model 1-24-20 Spot Welder,Rocker Arm, Throat 24 inch, Gap 5 inch - 230 volts Sn 12412, Contol on Right Side, Ref 10573-5

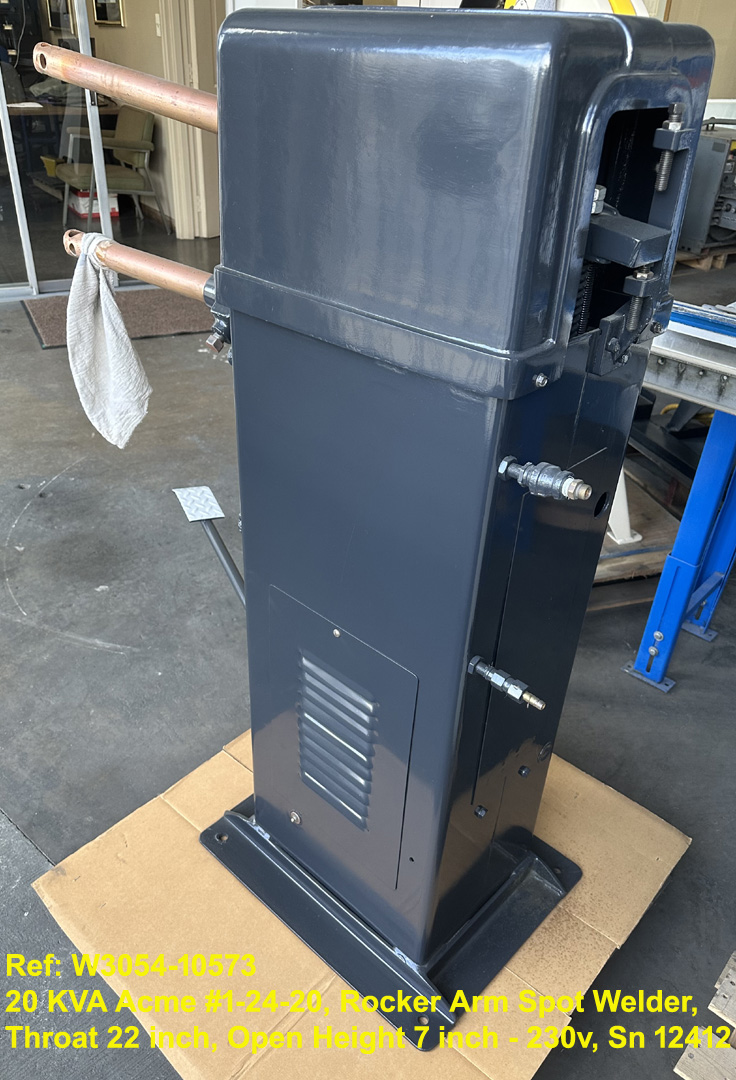

20 KVA Acme model 1-24-20 Spot Welder,Rocker Arm, Throat 24 inch, Gap 5 inch - 230 volts Sn 12412, Rear view to Right Side, Ref 10573-4

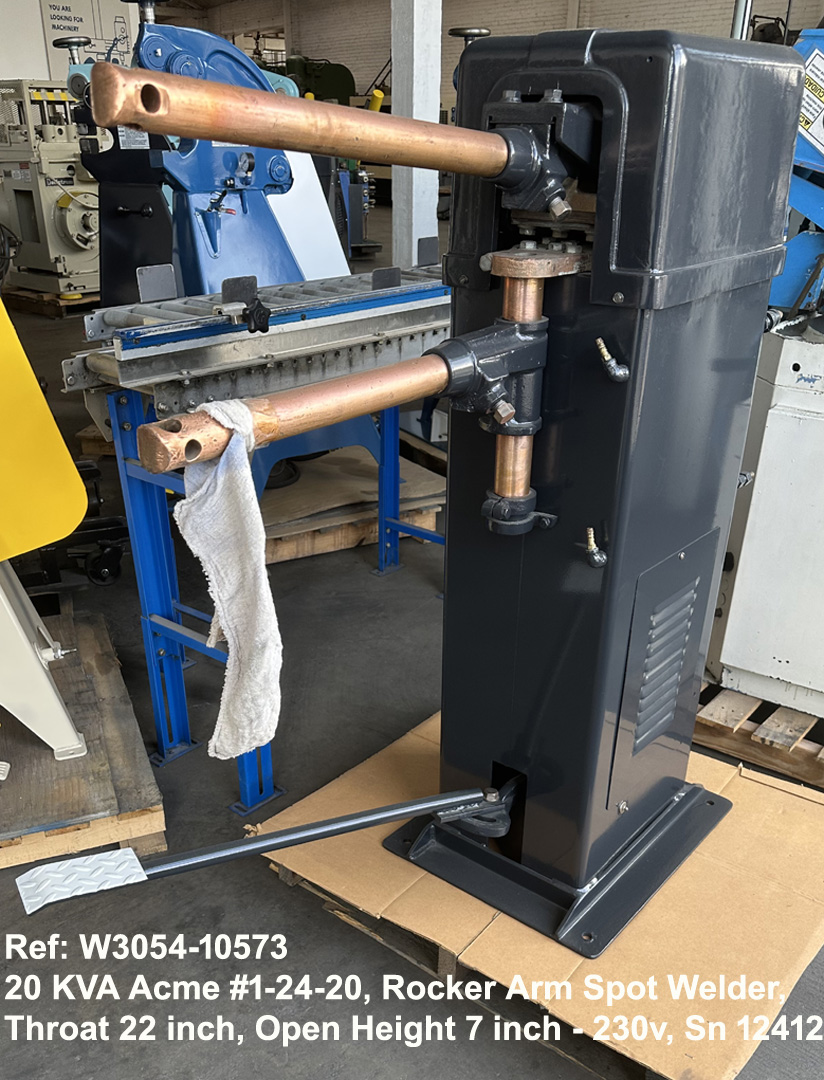

20 KVA Acme model 1-24-20 Spot Welder,Rocker Arm, Throat 24 inch, Gap 5 inch - 230 volts Sn 12412, Front sligh view to Right Side, Ref 10573-3

20 kva Acme Spot Welder Model 1-24-20 – Rocker Arm with 24″ Throat x 5″ Gap – Wired 230 volts, Serial number 12412, Inventory reference W3054-10573

Original price was: $1,150.00.Current price is: $775.00.

20 kva Acme Spot Welder Model 1-24-20 – Rocker Arm with 24″ Throat x 5″ Gap – Wired 230 volts, Inventory reference W3054-10573

Model Number: 1-24-20

Serial Number: 12412

Reference No: Spot Welder Rocker Arm & W3054-10573

Condition: Used

Mfg Date:

Model Number 1-24-20

Serial Number 12412

Reference Number Spot Welder Rocker Arm & W3054-10573

Read More
1-213-627-2847
Categories: , , Tags: , , Brand:

Description

used 20 kva ACME  SPOT WELDER – Model 1–24-20 ROCKER ARM

Model 1-24-20,   Style F0,   Serial Number 12412

SPECIFICATIONS: CAPACITY: KVA (rated) 20 Throat Depth 24″ Gap Height 5″ SWIVEL LOWER HORN SECONDARY VOLTS: Minimum 1.16 Maximum 4.32 VOLTAGE REQUIRED Wired 230 volts  Three Phase WATER REQUIRED:   MISSING Water Cooled ELECTRODE HOLDER EQUIPPED WITH 24- Solid End  Electrods    Pressure 30 lbs. Temperature 68-degree F CONTROLS: On/Off Buttons COMPLETE FACTORY SAFETY GUARDS Dimensions 18″ wide x 50½½ Ht (457.2mm wide x 1270mm Ht) Approximate Weight 670 lbs. Our price to you at our Los Angeles, Ca. warehouse is $1,150.00 usd WEB SITE DISCONTED PRICE $775.00 usd Respectfully submitted, CENTURY MACHINERY CO., INC.

20 kva Acme Spot Welder Model 1-24-20 – Rocker Arm Type – 24″ Throat x 5″ Gap – Wired 230 volts, Serial number 12412, Inventory reference W3054-10573
