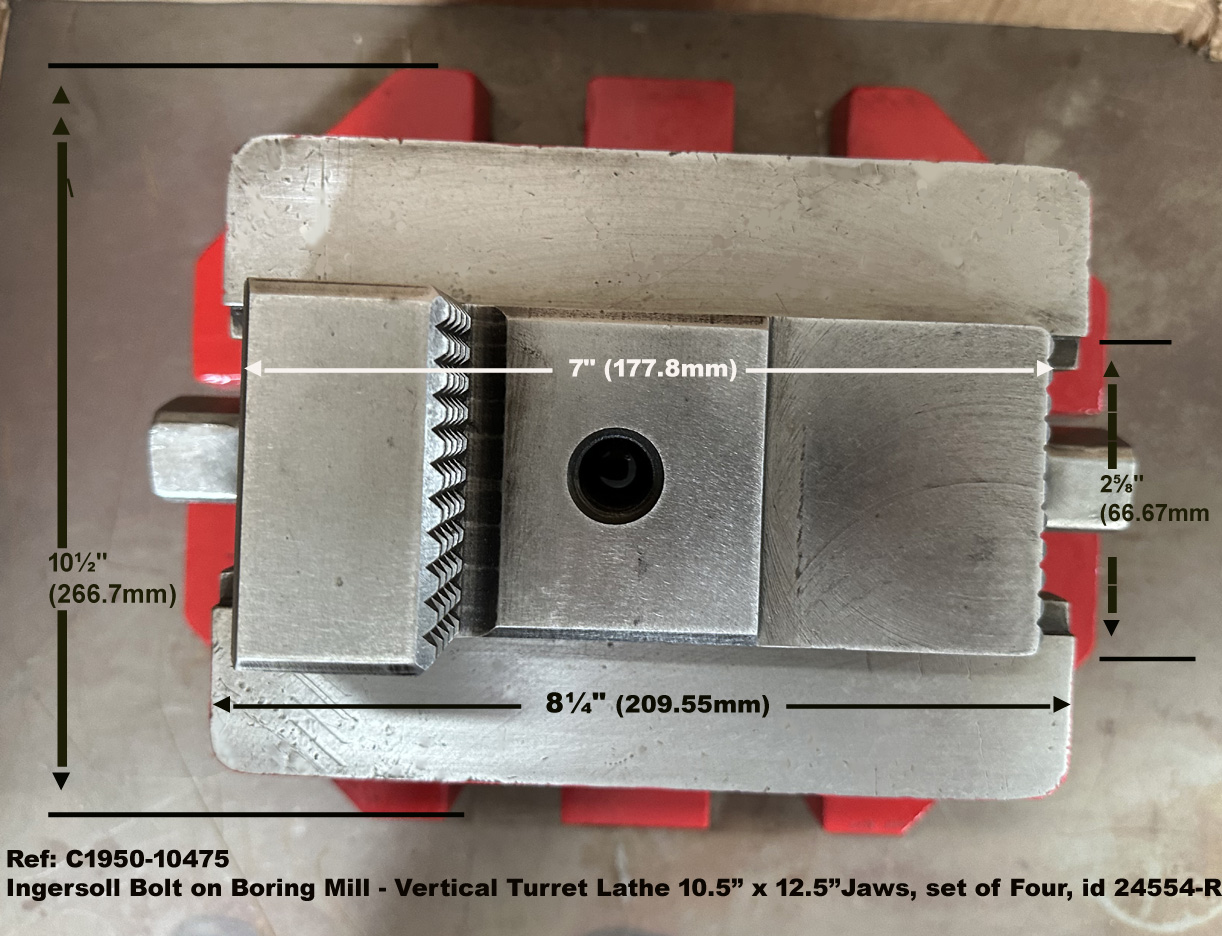

Ingersoll Bolt on Boring Mill - Vertical Turret Lathe 10.50 inch x 12.5 inch Jaws Ref: 10475-5 View Jaw with dimention

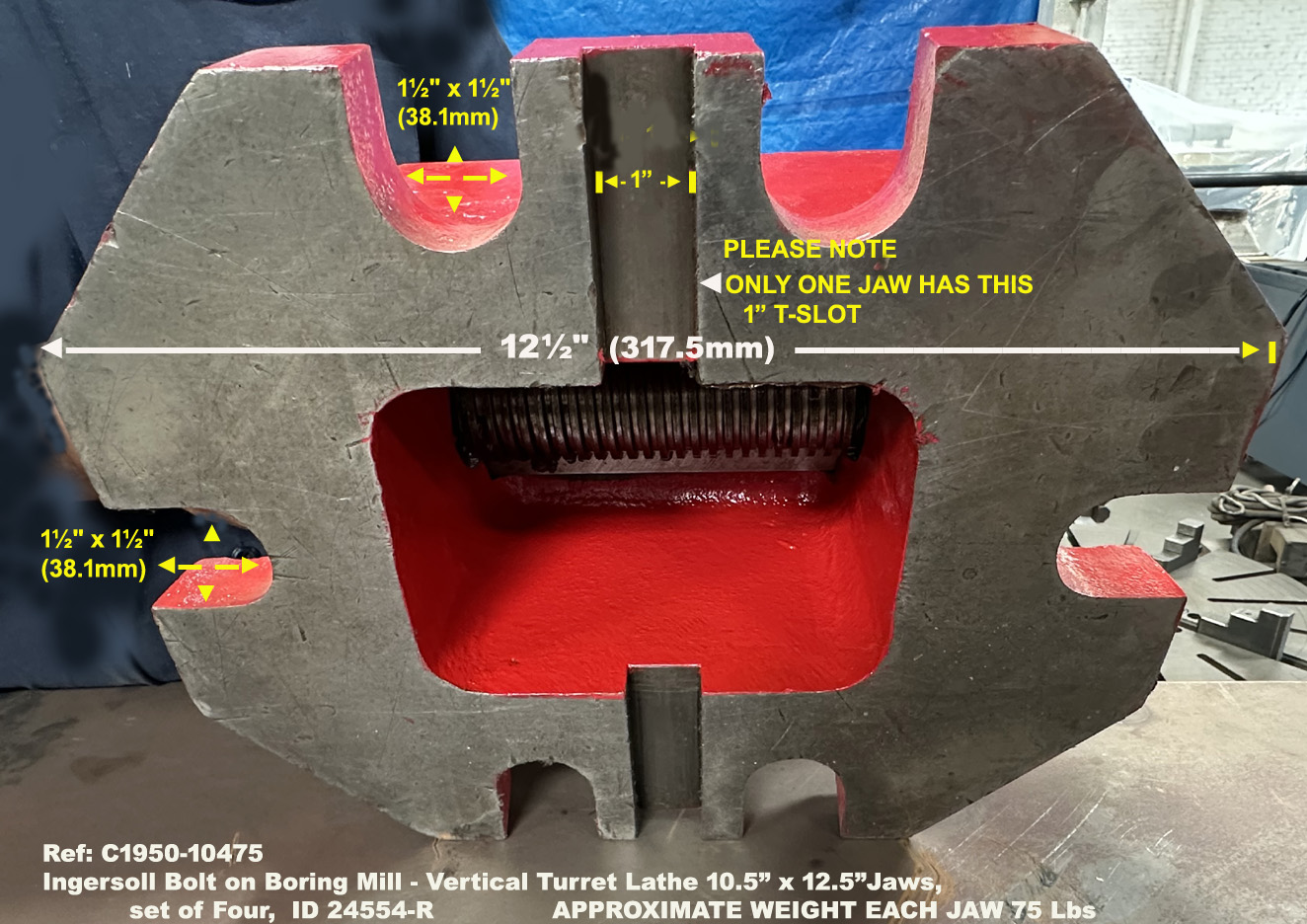

Ingersoll Bolt on Boring Mill - Vertical Turret Lathe 10.5 inch x 12.5inch Jaws, set of Four, id 24554 Ref: 10475-9 View Bottom

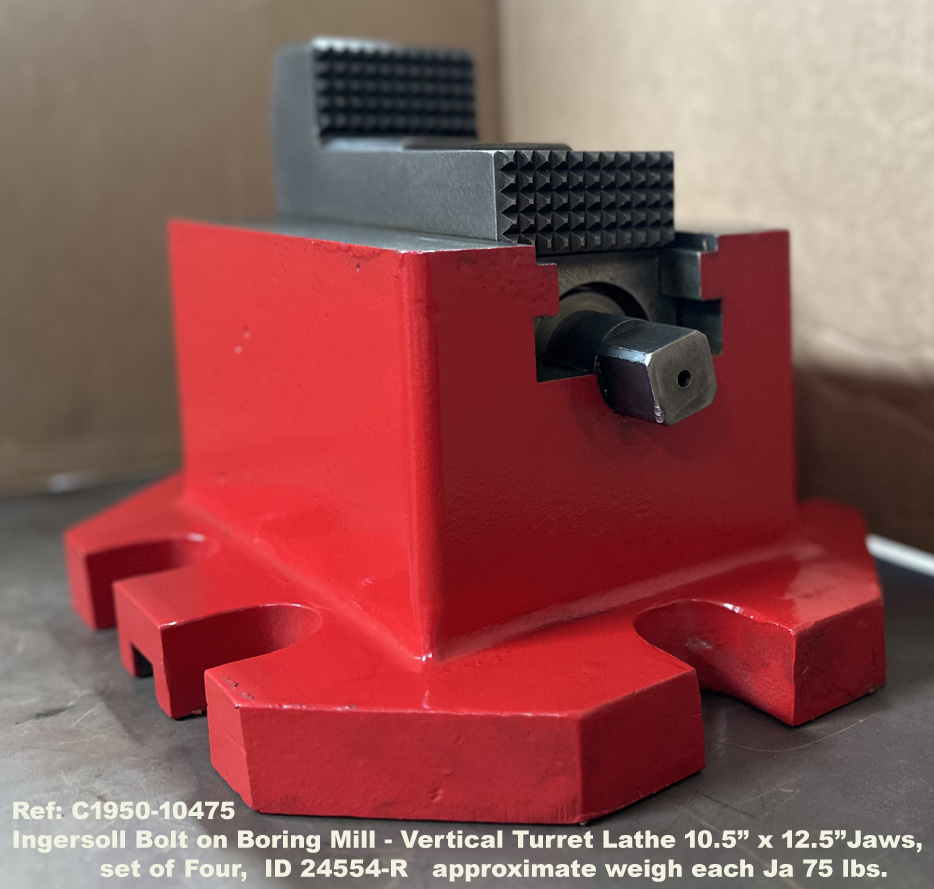

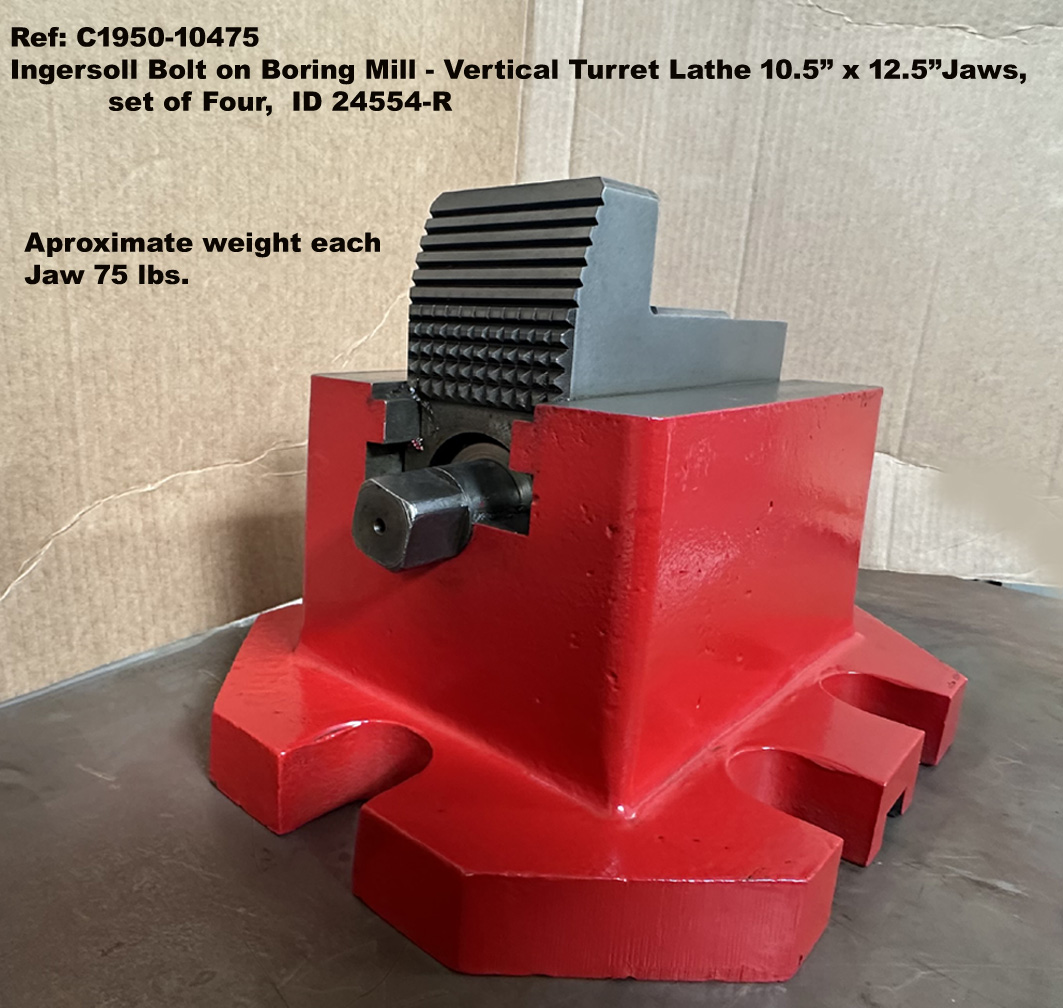

Ingersoll Bolt on Boring Mill - Vertical Turret Lathe 10.5 inch x 12.5inch Jaws, set of Four, id 24554 Ref: 10475-8 View Jaw side to rear end view

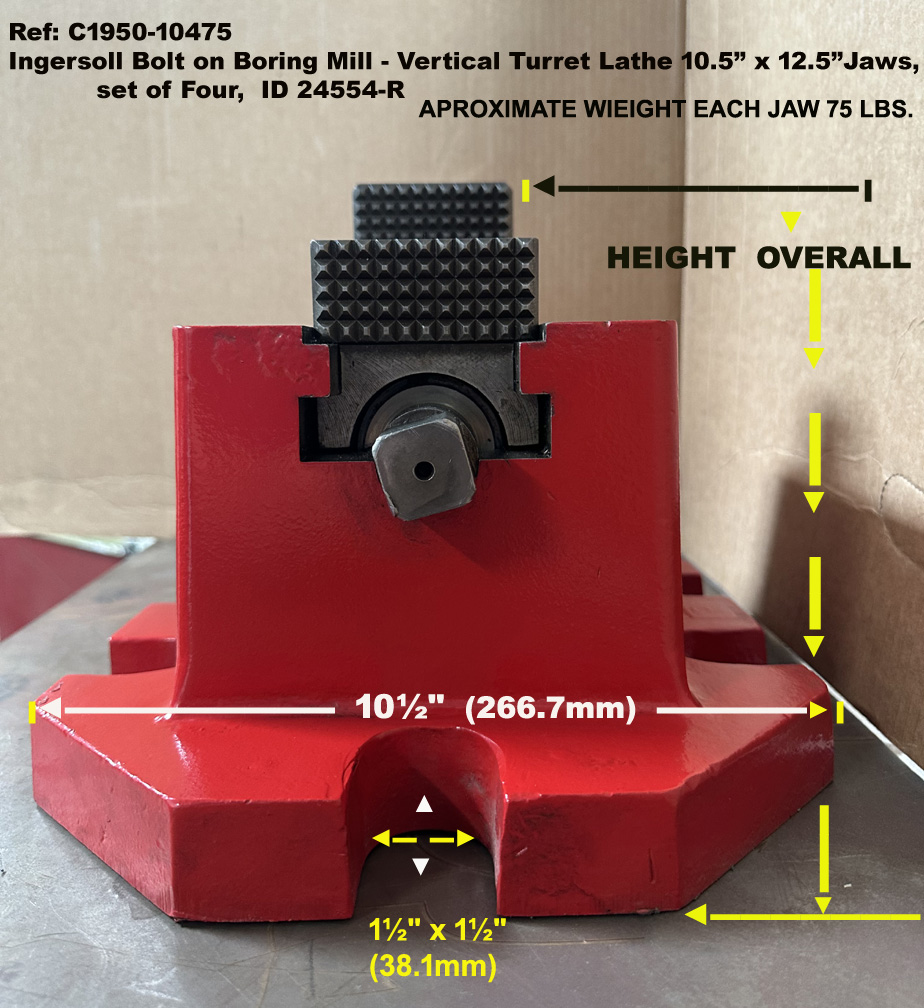

Ingersoll Bolt on Boring Mill - Vertical Turret Lathe 10.5 inch x 12.5inch Jaws, set of Four, id 24554 Ref: 10475-7 View Jaw rear end view

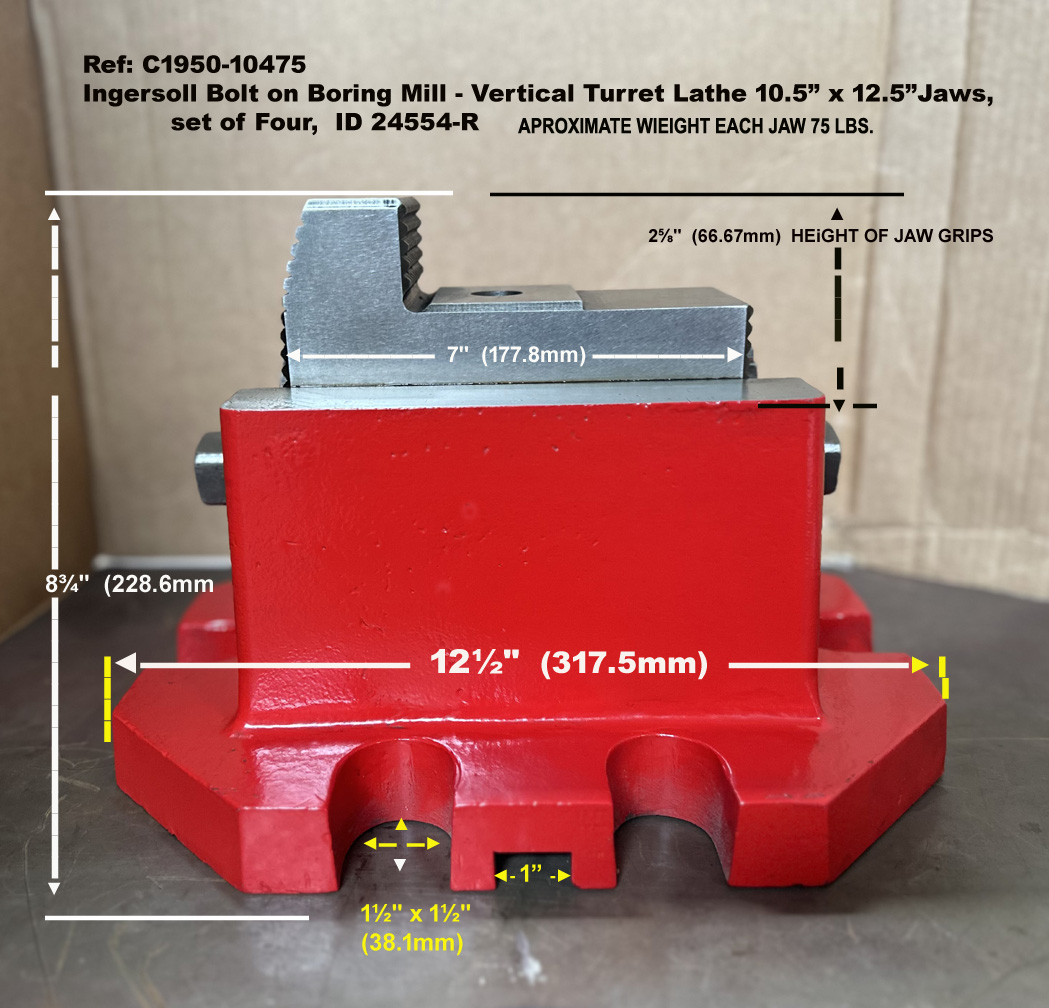

Ingersoll Bolt on Boring Mill - Vertical Turret Lathe 10.5 inch x 12.5inch Jaws, set of Four, id 24554 Ref: 10475-4 View Front to side Jaws

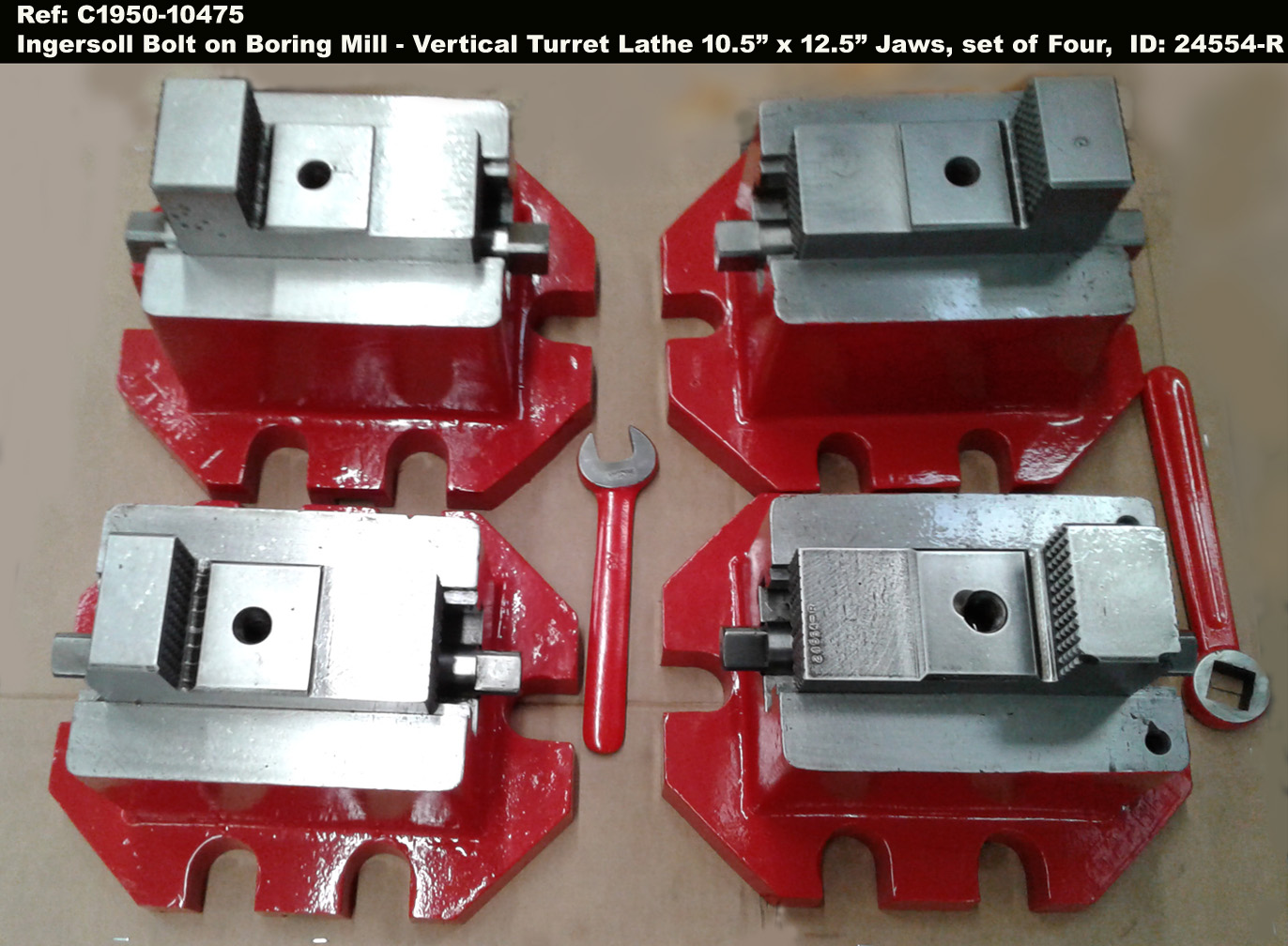

Ingersoll Bolt on Boring Mill - Vertical Turret Lathe 10.5 inch x 12.5inch Jaws, set of Four, id 24554 Ref: 10475-4 View down Jaws
Ingersoll Bolt on Boring Mill - Vertical Turret Lathe 10.5 inch x 12.5inch Jaws, set of Four, id 24554 Ref: 10475-4 View down Jaws

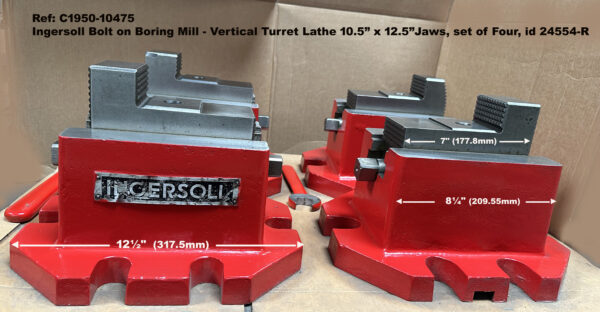

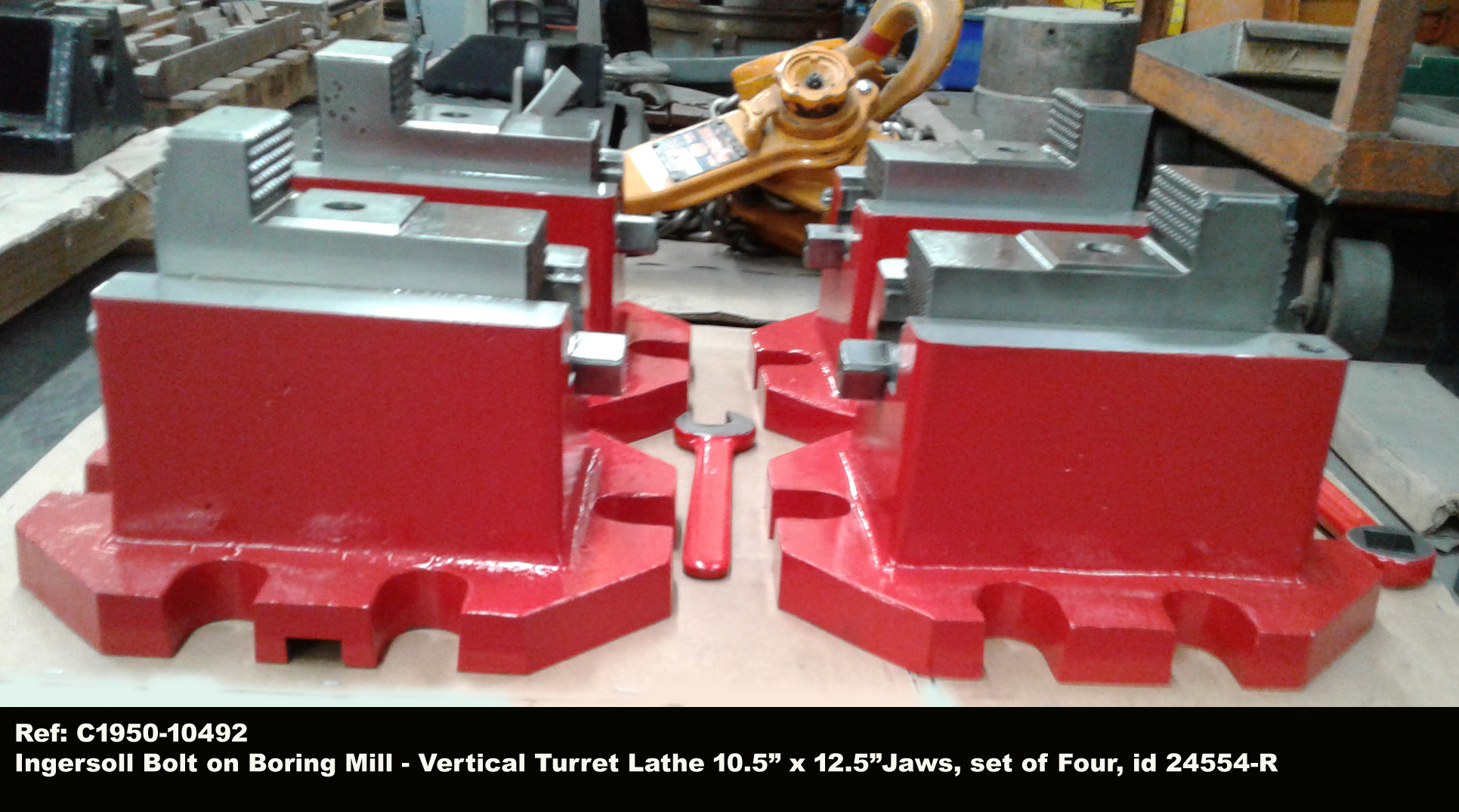

Ingersoll Bolt on Boring Mill - Vertical Turret Lathe 10.5 inch x 12.5inch Jaws, set of Four, id 24554 Ref: 10475-3 View all Jaws from side
ngersoll Bolt on Boring Mill - Vertical Turret Lathe 10.5 inch x 12.5inch Jaws, set of Four, id 24554 Ref: 10475-2 View all Jaws from side
Ingersoll Bolt on Boring Mill - Vertical Turret Lathe 10.50 inch x 12.5 inch Jaws Ref: 10475-1 View all jaws

Ingersoll Bolt on Boring Mill – Vertical Turret Lathe 10.50 inch x 12.5 inch Jaws – set of Four Face Plate Jaws, id 24554-R, Inventory Reference C1950-10475

Ingersoll Bolt on Boring Mill – Vertical Turret Lathe 10.50 inch x 12.5 inch Jaws – set of Four Face Plate Jaws, Inventory Reference C1950-10475

Model Number: Ingersoll Bolt on Boring Mill - Vertical Turret Lathe 10.50 inch x 12.5 inch Jaws,

Serial Number: id 24554-R

Reference No: Bolt on Boring Mill - Vertical Turret Lathe Jaws & C1950-10475

Condition: used

Mfg Date:

Model Number Ingersoll Bolt on Boring Mill - Vertical Turret Lathe 10.50 inch x 12.5 inch Jaws,

Serial Number id 24554-R

Reference Number Bolt on Boring Mill - Vertical Turret Lathe Jaws & C1950-10475

Read More
1-213-627-2847
Categories: , Tags: , Brand:

Description

Ingersoll Bolt on Boring Mill – Vertical Turret Lathe 10.50 inch x 12.5 inch Jaws – set of Four Face Plate Jaws, Inventory Reference C1950-10475

SPECIFICATINS: SIZE LENGTH OF CHUCK JAWS (Overall)………………………………. 12½”  (317.5mm WIDTH OF CHUCK JAWS at BASE…………………………………. 10½”  (266.7mm) HEIGHT OF CHUCK JAWS with BASE………………………………  8¾”  (228.6mm) JAW DIMENSIONS: Width ………………………………………………………………..   2⅝”  (66.67mm) Length ……………………………………………………………….   7″     (177.8mm) Height  ……………………………………………………………….  2⅝”  (66.67mm KEY: ONLY ONE jJAW ASSEBBLY Width ………………………………………………………………..   1″      (25.4mm)      Centers (Full Width)………………………………………………… 10½”  (266.7mm) BOLT CUT-OUTS: Width x Depth .…………………………………………………….  1½” x 1½”   (38.1mm x 38.1mm) Centers length ……………………………………………………..  8″     (203mm) Centers between Left & Right side ……………………………….  6.69″  (169.93mm) BOLT CUT OUT at FRONT & REAR: Width x Depth .…………………………………………………….  1½” x 1½”  38.1x 38.1mm) COMPLETE FACTORY SAFETY GAURDS Approximate weight each Jaw 75 lbs
Our price to you at our Los Angeles, CA showroom is $ 3,550.00
Please feel free to contact us for more info.

Ingersoll Bolt on Boring Mill – Vertical Turret Lathe 10.50 inch x 12.5 inch Jaws – set of Four Face Plate Jaws, id 24554-R, Inventory Reference C1950-10475
