Description

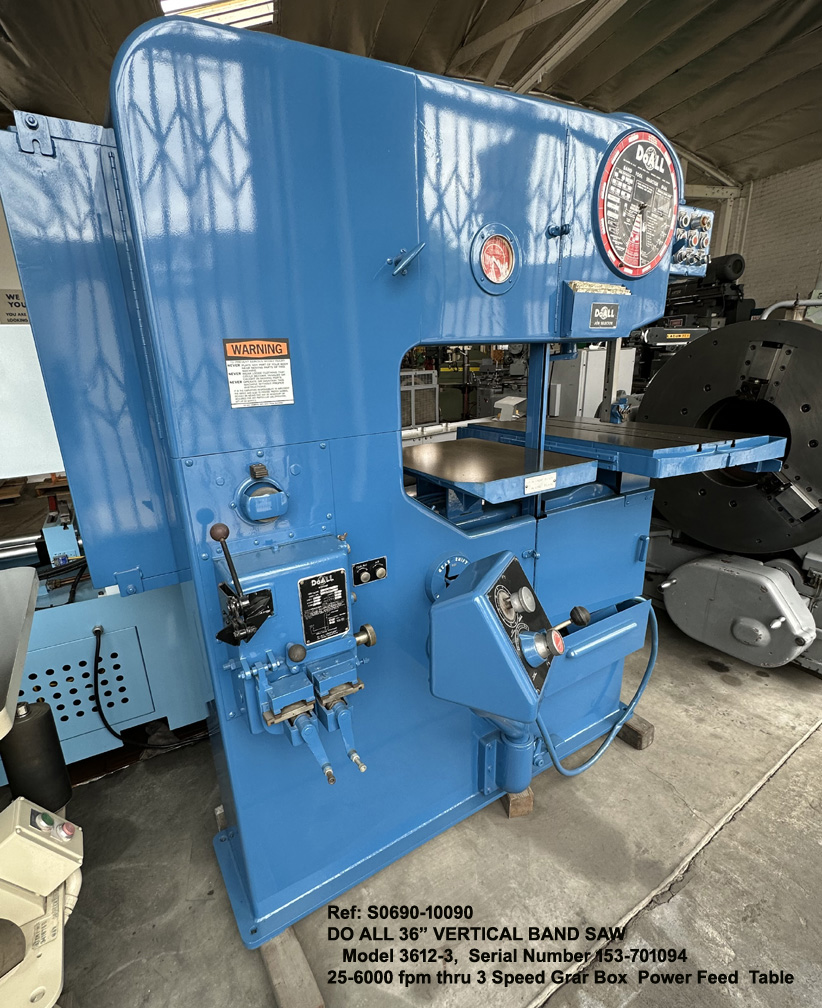

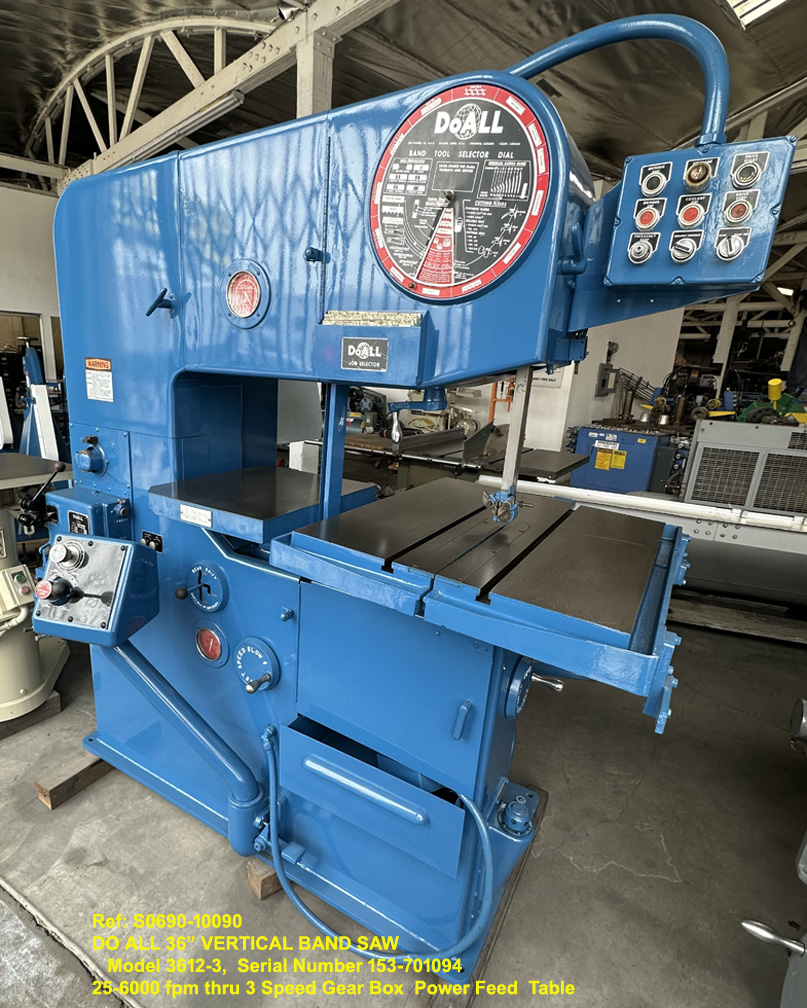

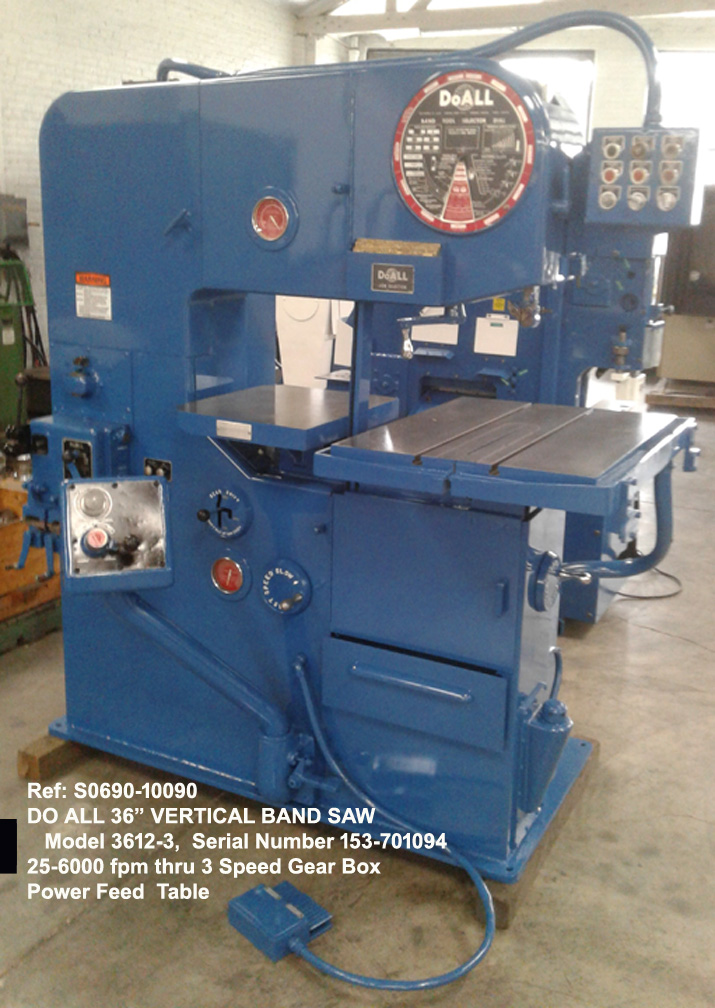

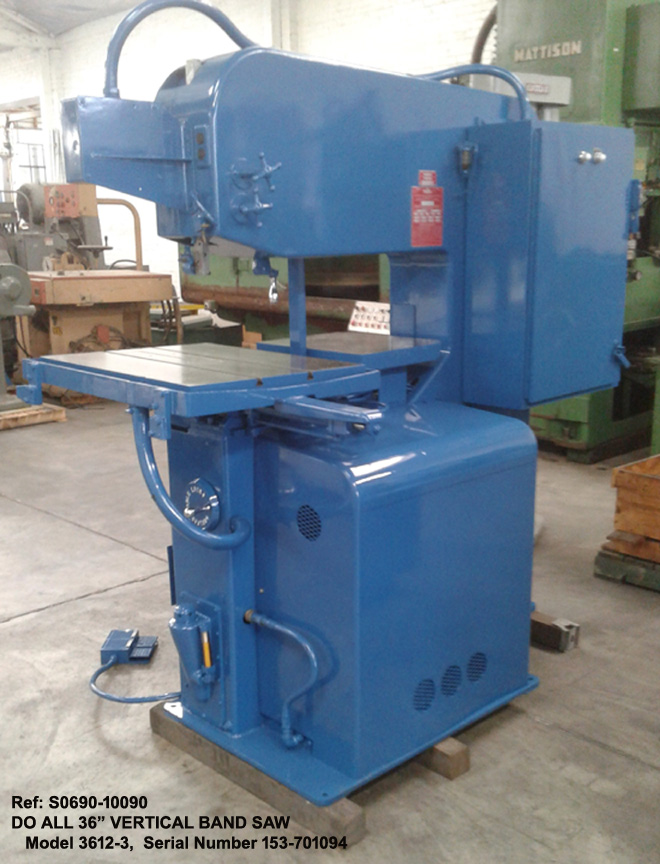

36″ DO ALL 3612-3 VERTICAL BAND SAW

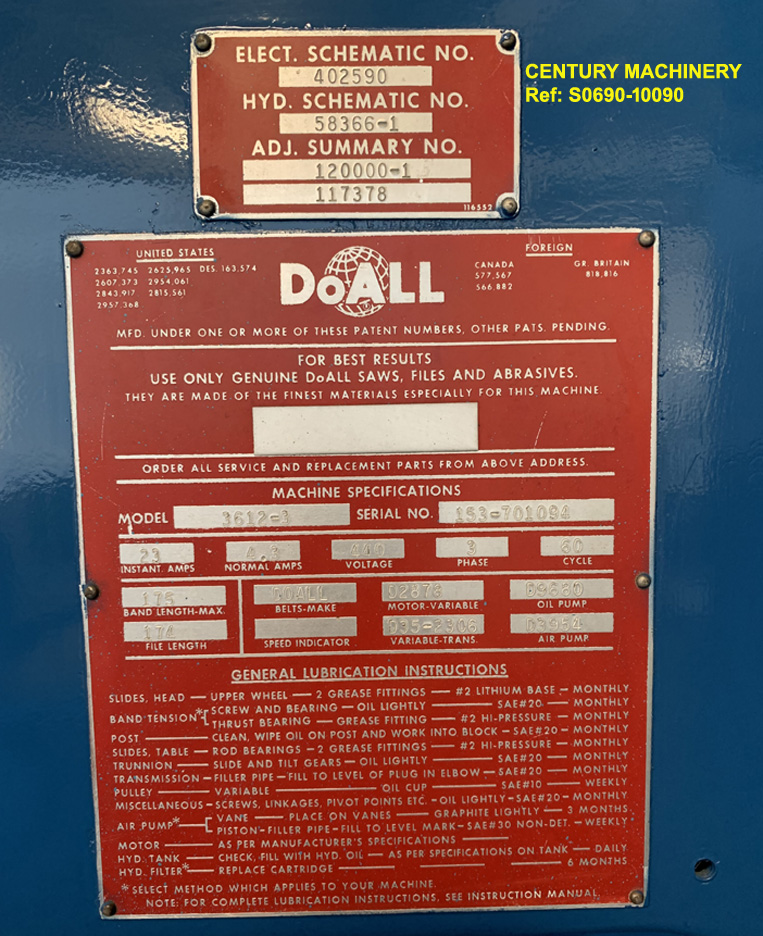

Model 3612-3, Serial Number 153-701094
CONDITION EXCELLENT
SPECIFICATIONS
CAPACITIES:
THROAT DEPTH 36"
HEIGHT UNDER GUIDE 12"
(Top of table to bottom of upper guide in the up position.)

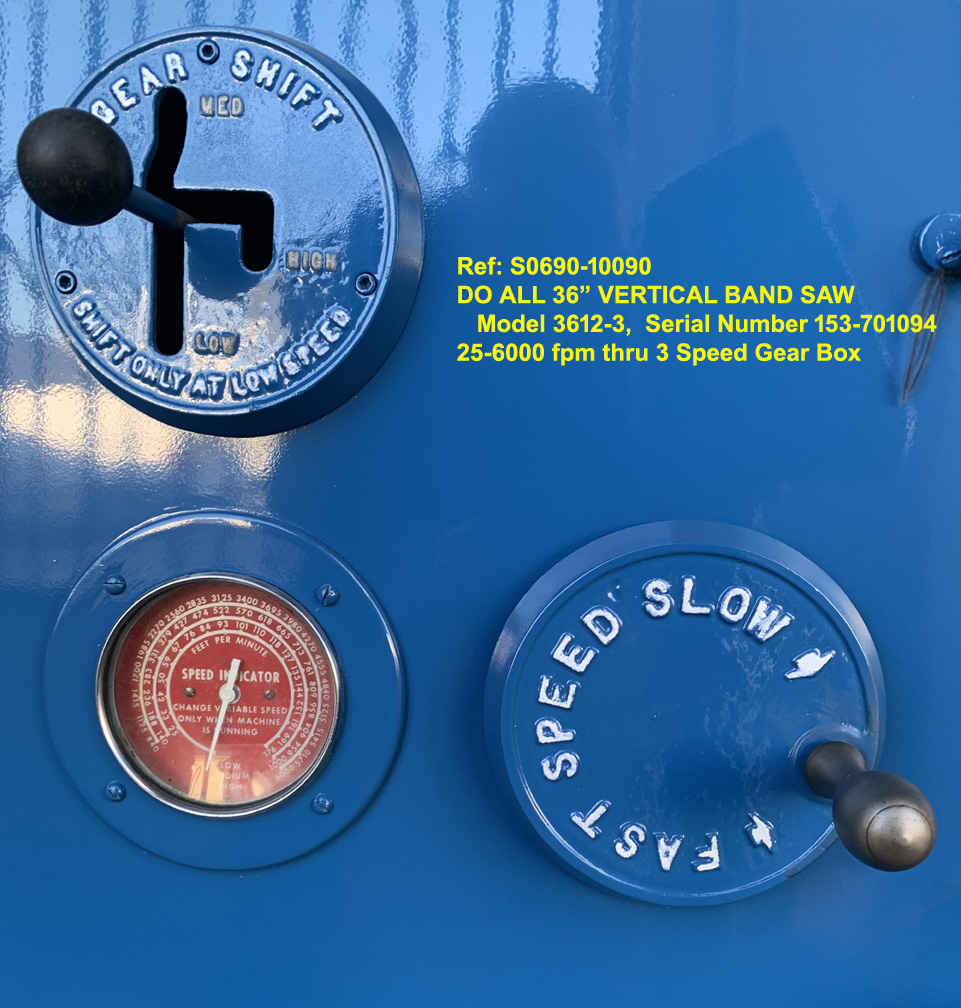

BLADE SPEED: Solid State Varil Speed Drive.
Speed, Infinity Variable thru 3-Speed Transmission
Low Range: 25 thru 176 fpm.
Middle Range 140 thru 1,000 fpm.
High Range: 840 thru 6,000 fpm.
Band Width 1/16" to 1" (3.175 to 25.4mm)
TABLE: Power Feed by Hydraulic Pump
Working Area, L x R 24" x 30½"
Tilting 10 degrees Up and 45 degrees Down
AUXILIARY TABLE: F-B x L-R 19¼" x 16¾"

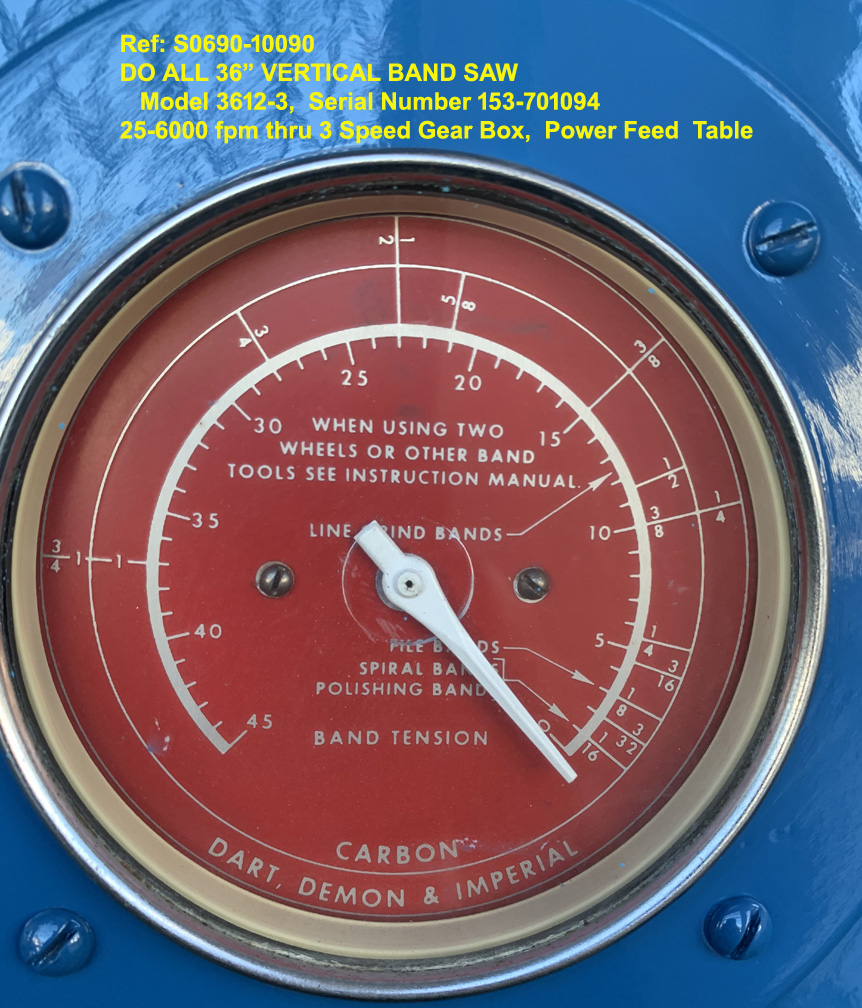

BLADE TENSION ADJUSTMENT:
by Hand Wheel with Indicator Gauge.
MOTOR DRIVES Motors wired 460 volts
Main 3 HP. 230/460 volts
EQUIPPED WITH:

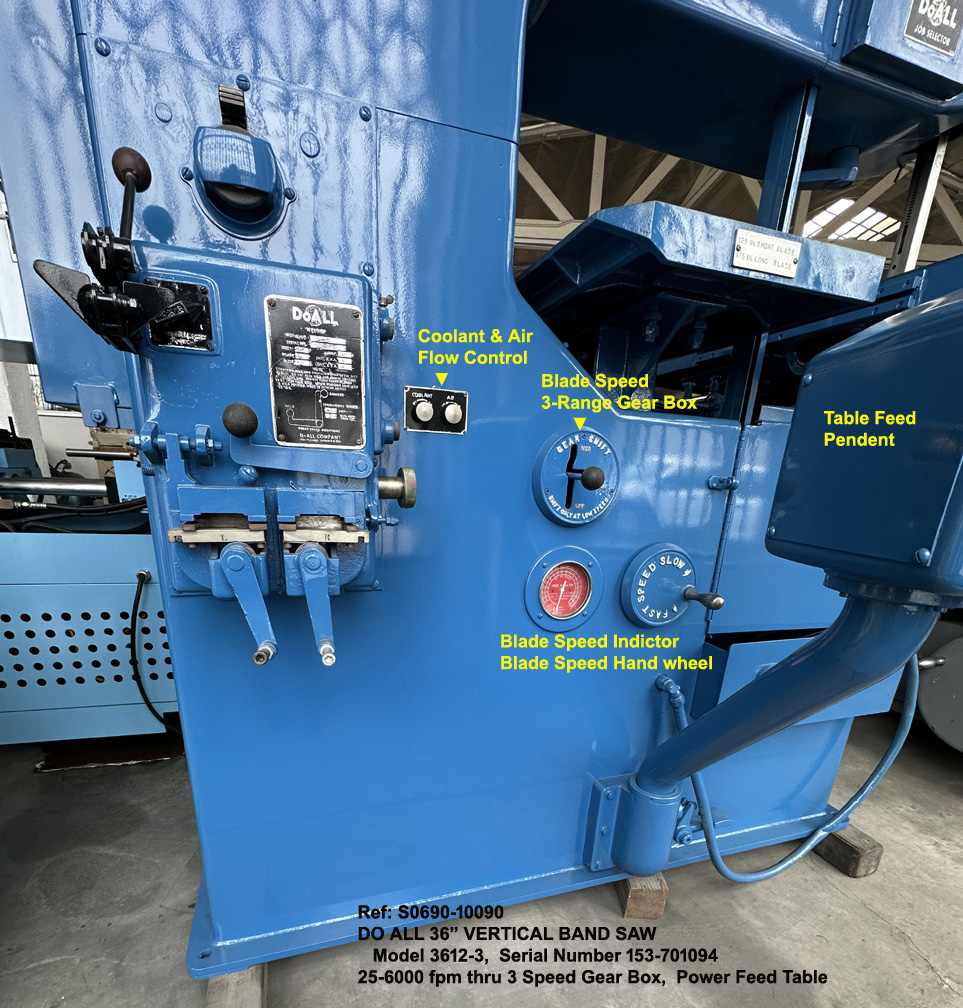

Blade Welder DBW-9. 8 KVA.
Blade Grinder.
Blade Shear.

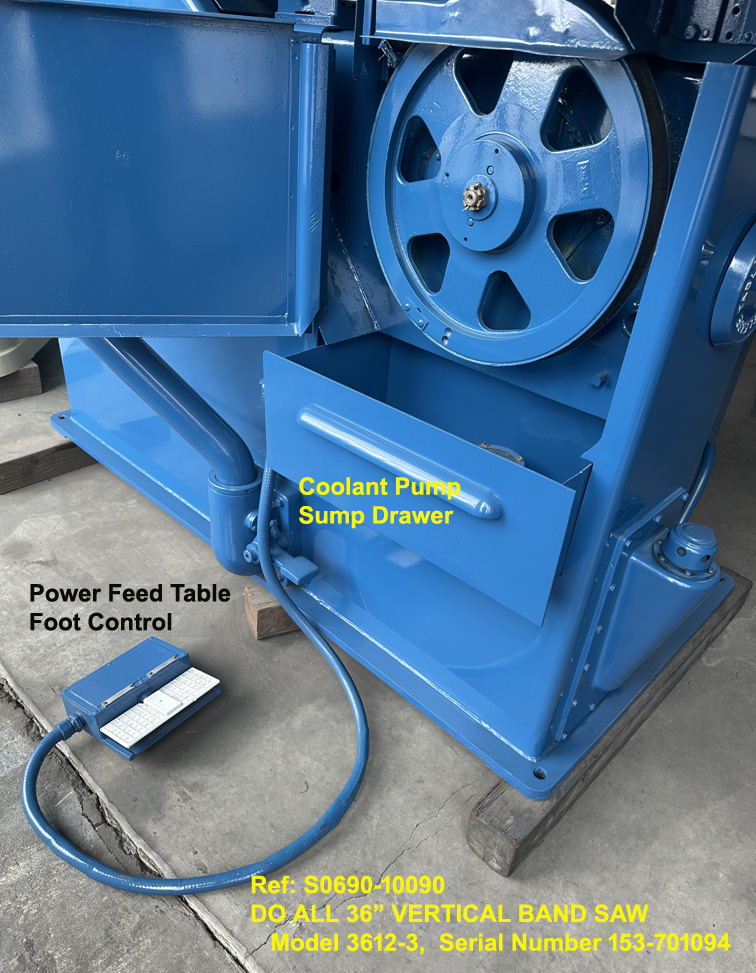

Coolant Pump, Air Pump, driven from Main drive.
Miscellaneous Blade Inserts

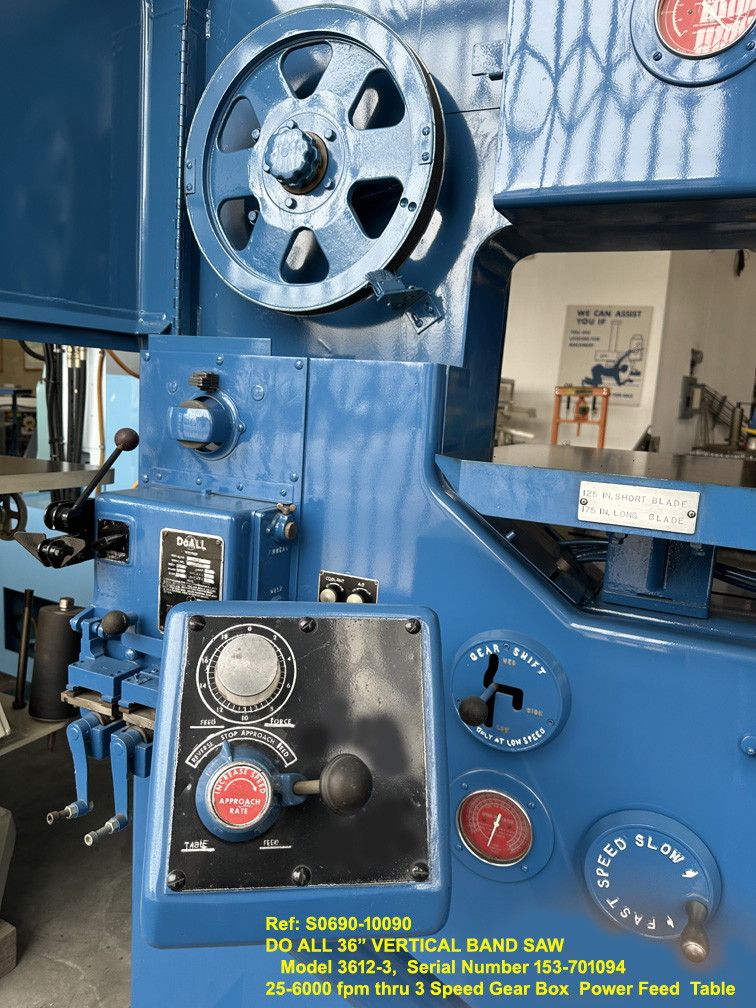

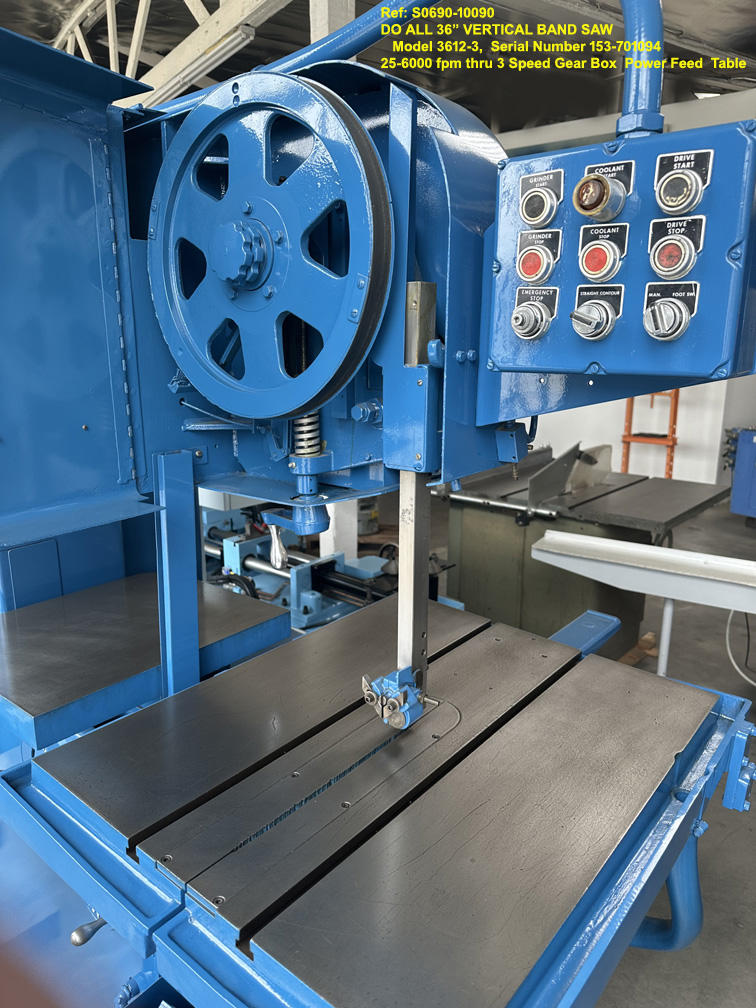

OPERATOR CONTROLS STATION: Controls wired Low Voltage.
Start/Stop Buttons. Emergency Stop Button. Table Feed and Speed Levers.
Table Forward / Reverse Speed Adjustment Dial. Straight & Contour Switch.
Table Force Feed Adjustment Dial. Grinder Start / Stop Buttons.
Coolant Start / Stop Buttons. Coolant Flow Adjustment. Air Flow Adjustment.
COMPLETE FACTORY SAFETY GUARDS
Dimensions 54" F-B x 77" L-R x 79" Height
Approximate Weight 3500 lbs
