18″ x 20.5″ Hydmech V-18 Tilting Frame Vertical Band Saw with Power Frame tilting and Guide Post adjsment – Dual Vises – Variable Blade Speed 65 thru 385 fpm – Drive 5 hp – Date Mfg 1998, Serial Number J0398560, Inventory Refrerence S0690-10654

Model Number: V18

Serial Number: J0398560

Reference No: Band Saw, Vertical, Tilting Frame & S0690-10620

Condition: used, LIKE NEW

Mfg Date:

Model Number V18

Serial Number J0398560

Reference Number Band Saw, Vertical, Tilting Frame & S0690-10620

Read More
1-213-627-2847
Categories: , Tags: , ,

Description

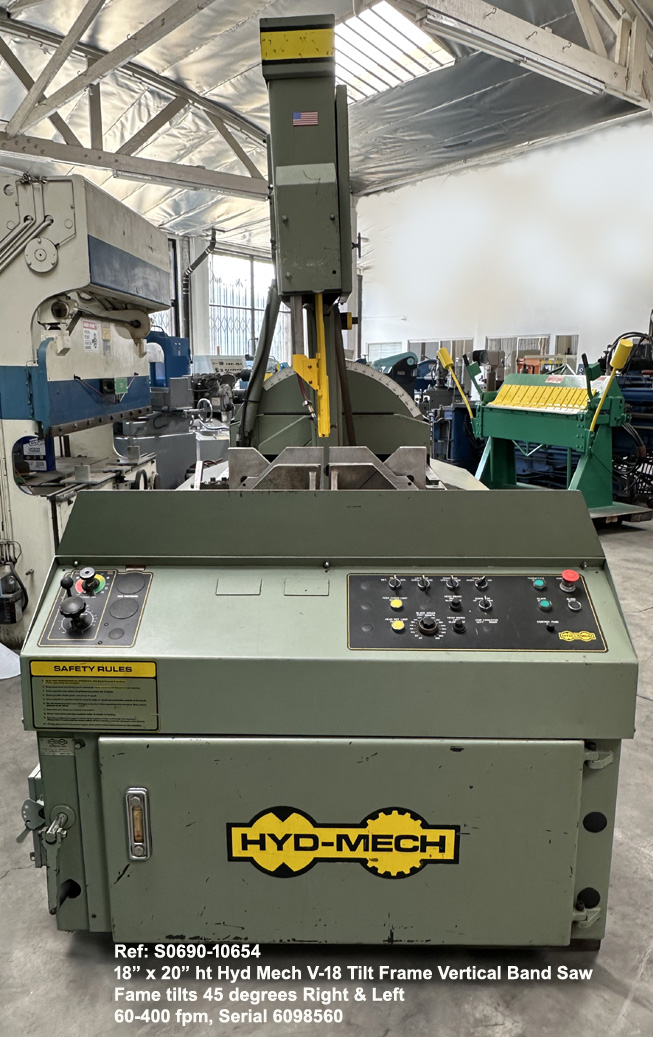

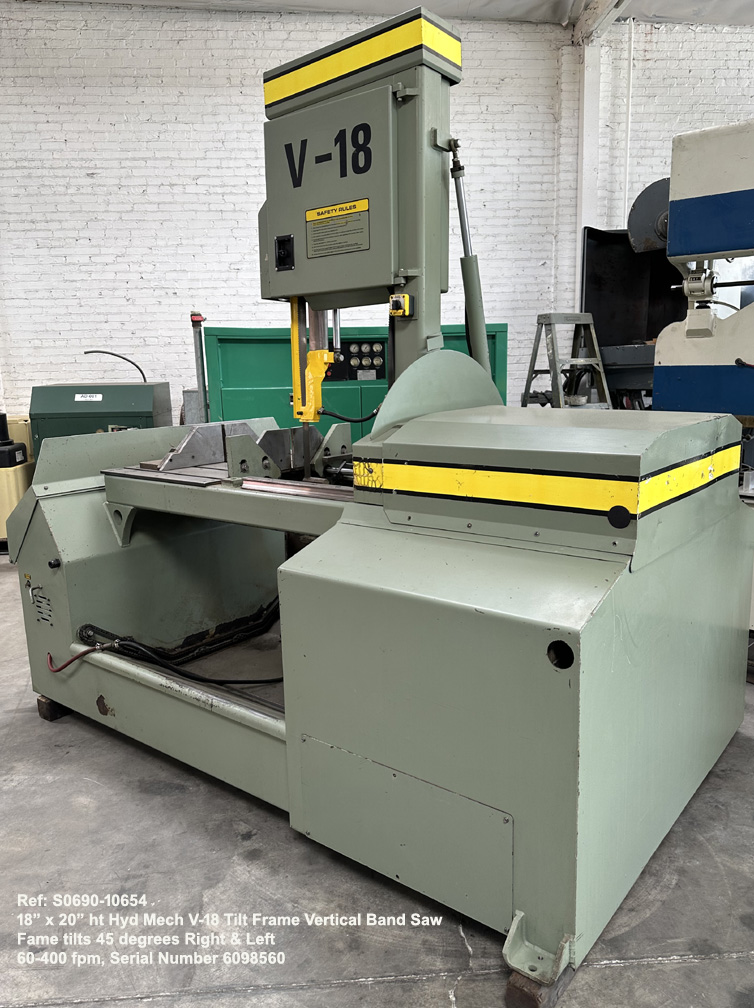

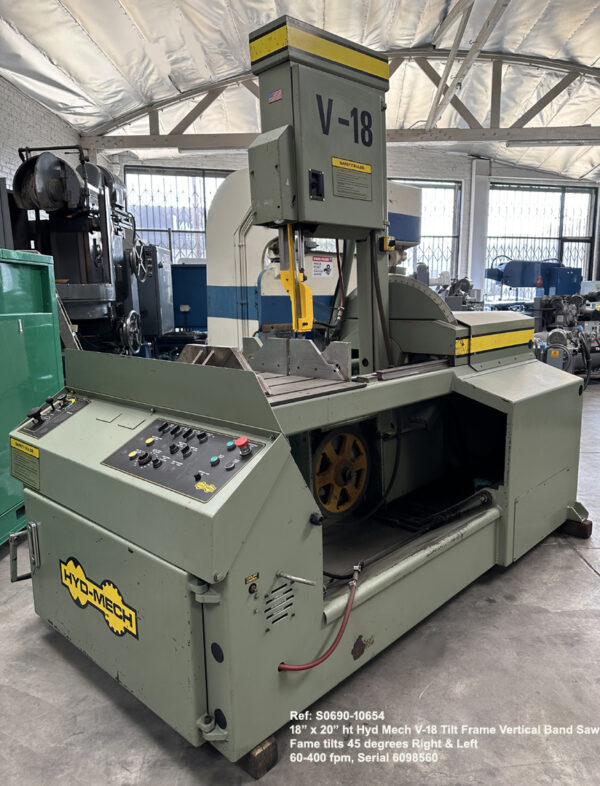

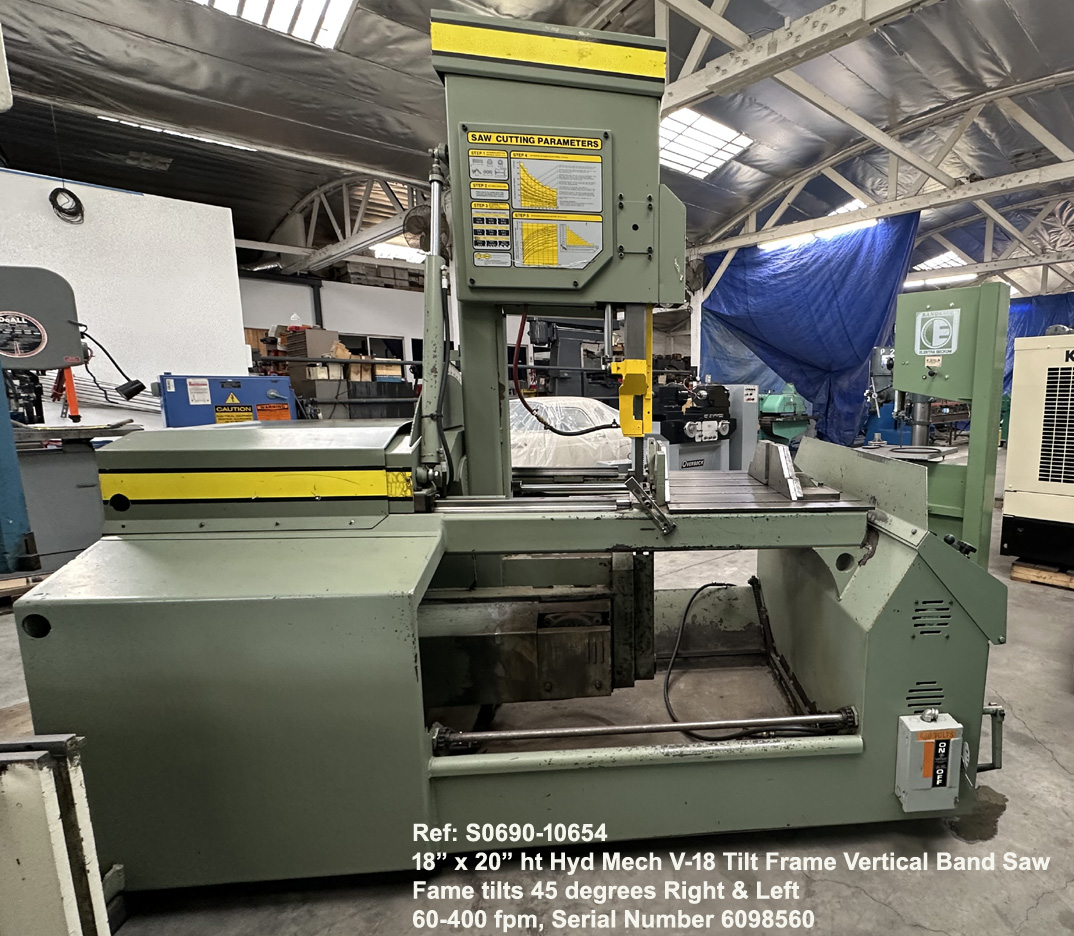

HYDMECH TILTING FRAME UNIVERSAL VERTICAL BAND SAW
  Model V18, Serial Number J0398560
  Year Manufactured 1998   Condition: Very good

SPECIFICATIONS
CAPACITIES:
  Nominal 18" width x 22.5" height (457.2 x 520.7mm)
  Blade Tilts, Miter Power Right & Left 45 degrees
       18.5" W x 13" Ht. (469.9mm x 330.2mm)
BLADE SIZE:
  1¼" W x 14′-11" L x .042" Thickness
   (31.75mm x 4546.6mm x 10.67mm Thickness)
  BLADE SPEED: (Infinitely Variable)
     65 thru 385 fpm.
  FEED FORCE 0 thru 300 psi.
VISES: Two sets Hydraulic
  Vices Clamping Pressures, Adjustable)
MOTOR DRIVES: wired 440 volts, 3 phase
  Blade Drive 5 hp (3.7KW) 208-220/440 volts
  Hydraulic Pump 2 hp, (1.4kw) 208-220/440 volts
  Coolant Pump 115 volts, Single Phase

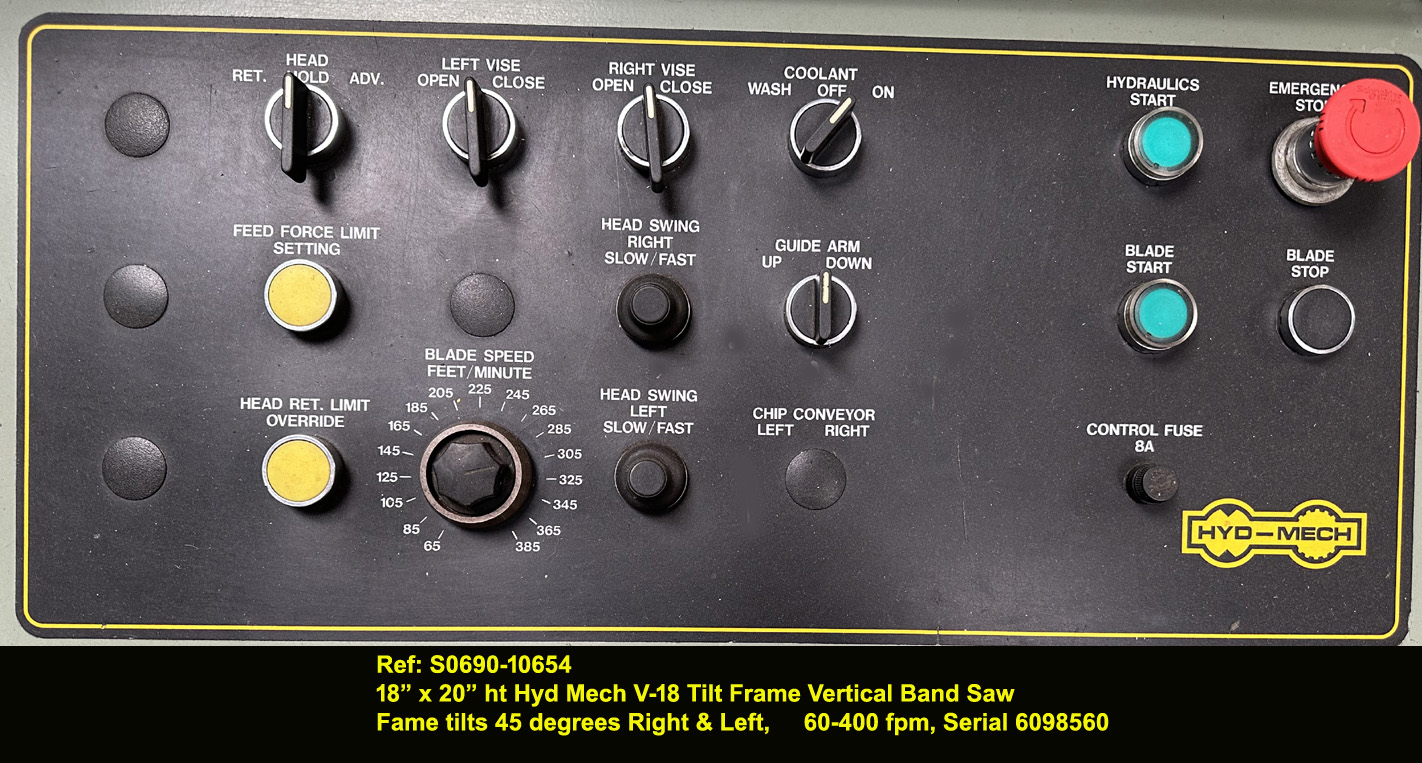

CONTROLS: wired 115 volts
  Power On Button.  Blade Start / Stop Buttons
  Emergency Stop Button.  Control Fuse 6A.
  Coolant Wash On / Off Switch.
  Blade Guide Poist Arm Up / Down Switch.
  Frame Tilt Left/Right & Slow/Fast Toggle Switches.
  Head Frme Advance / Return Switch.
  Blade Speed Per Minute Dial.
  Feed Right & Left  Vise Open / Close  Switch.
  Force Limit Setting Button.  Hydraulic Blade Tension.
  Head Return Limit Override Button.

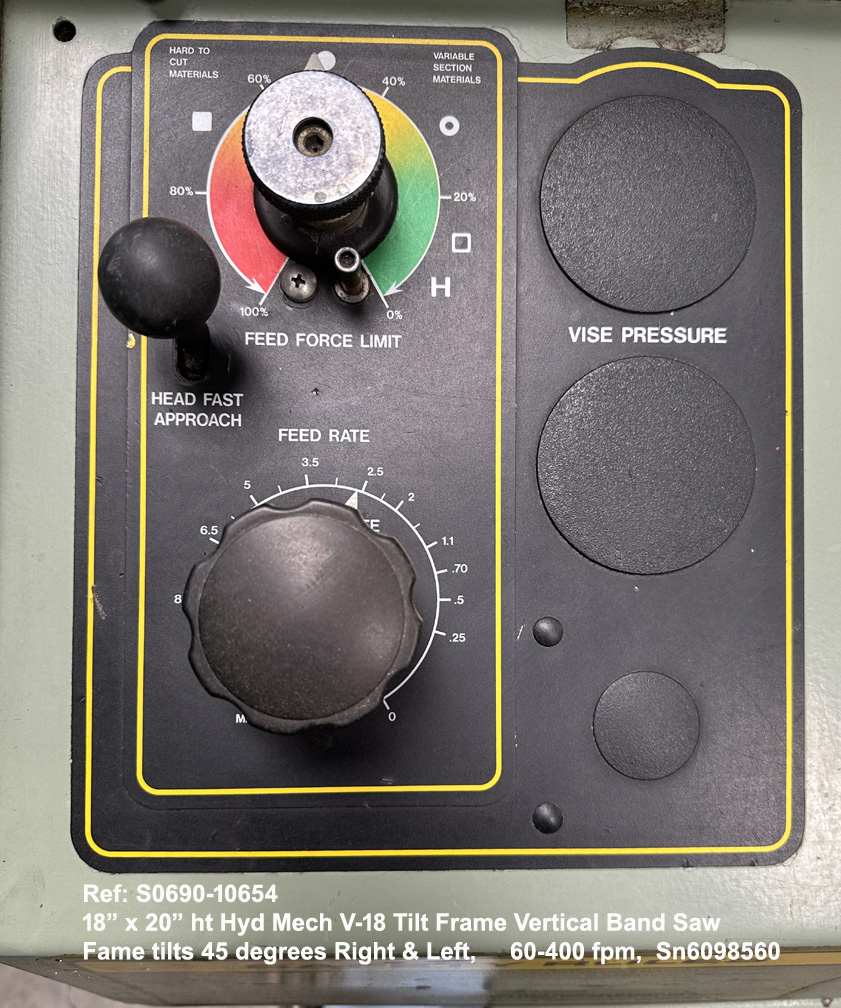

  Feed Force Limit Adjustment Percentage Dial.
  Head Fast Approach Switch.
  Feed Rate Inch Per Minute Adjustment Dial.
  Coolant Flow Control Valve.
EQUIPPED WITH:
  Power Frame Tilting.
  Power Adjusting Blade Guidepost.
  Power Blade Tensioning.

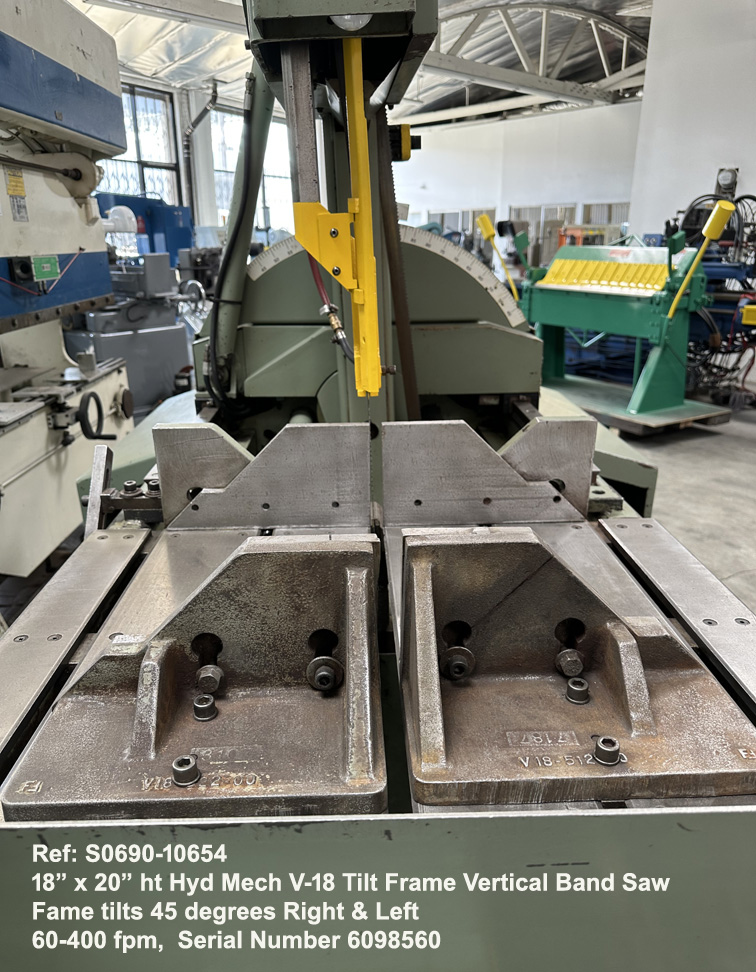

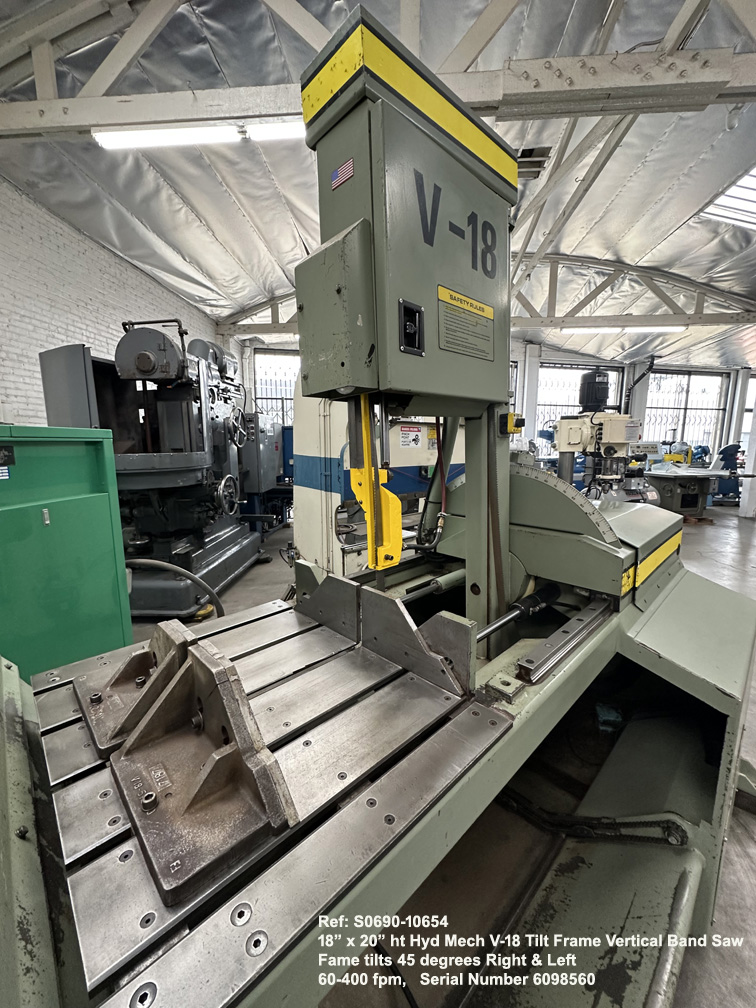

  Dual Hydraulic Clamping Vises  Coolant Pan.
COMPLETE FACTORY SAFETY GUARDS

Dimensions: 58" FB x 102" LR x 97" Height
            (1`473.2mm FB x 2590mm LRx 268.8mm Ht)
Approximate weight 4500 lbs.
