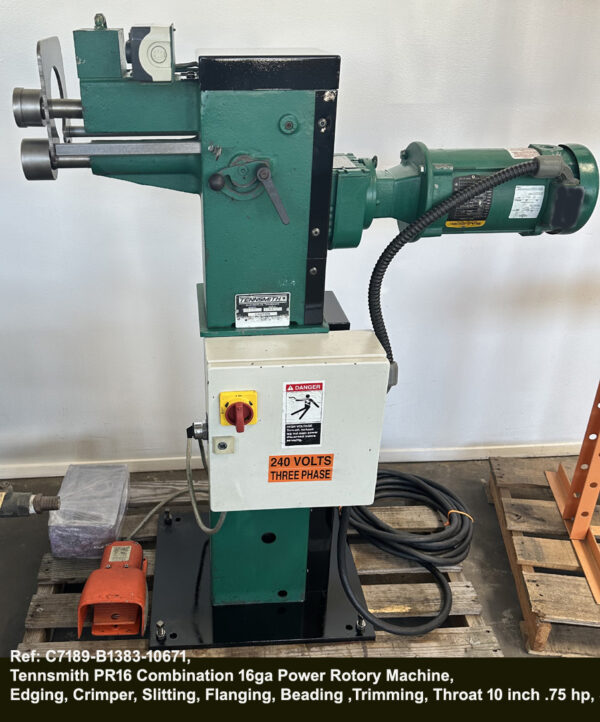

Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 1671-1, Right side view

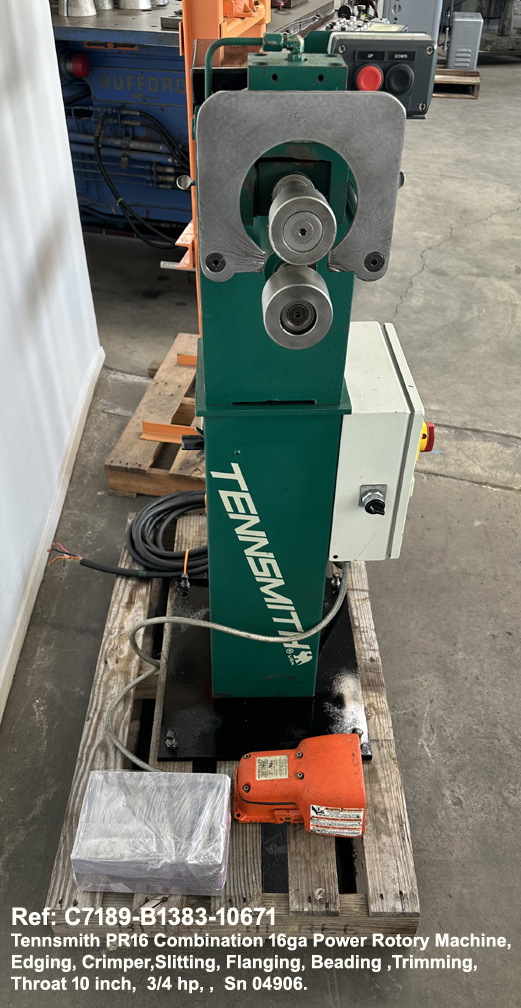

Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-2, Work end view

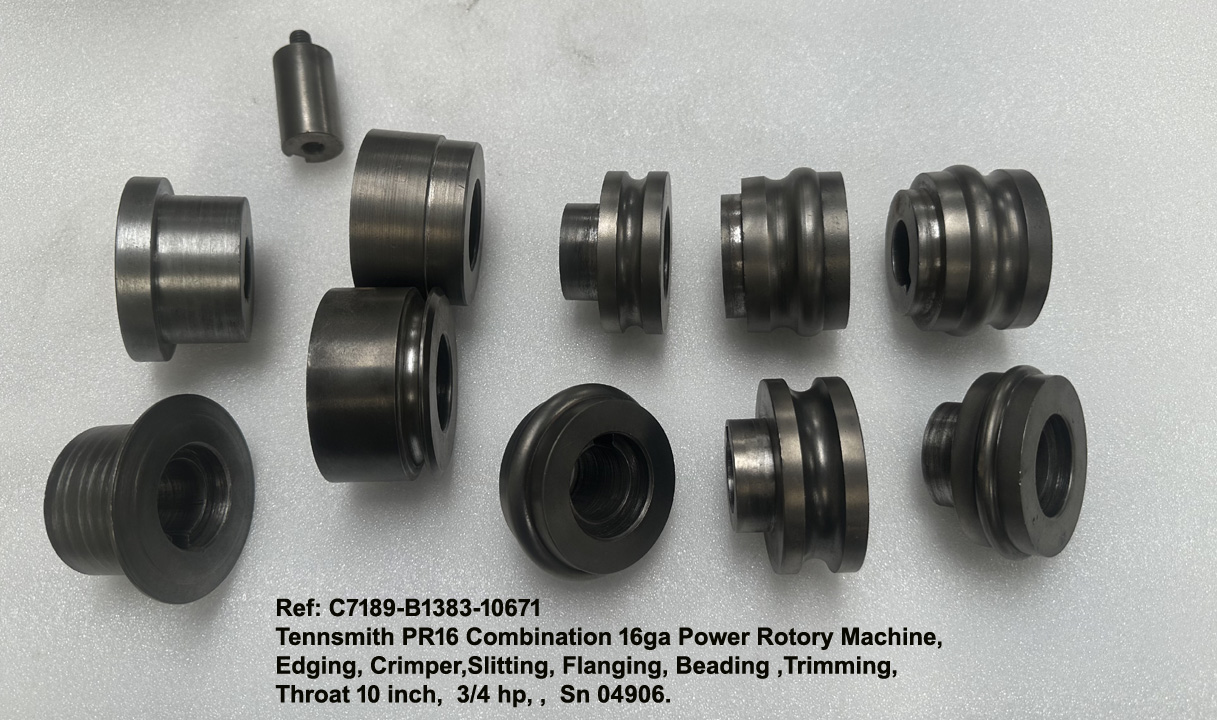

Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-67 Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-11, View miscellanaous Forming Rolls

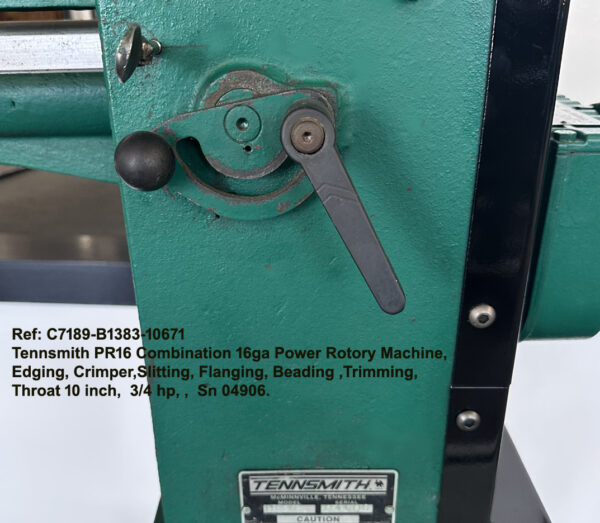

Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-67 Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-10, View Roll speed Control

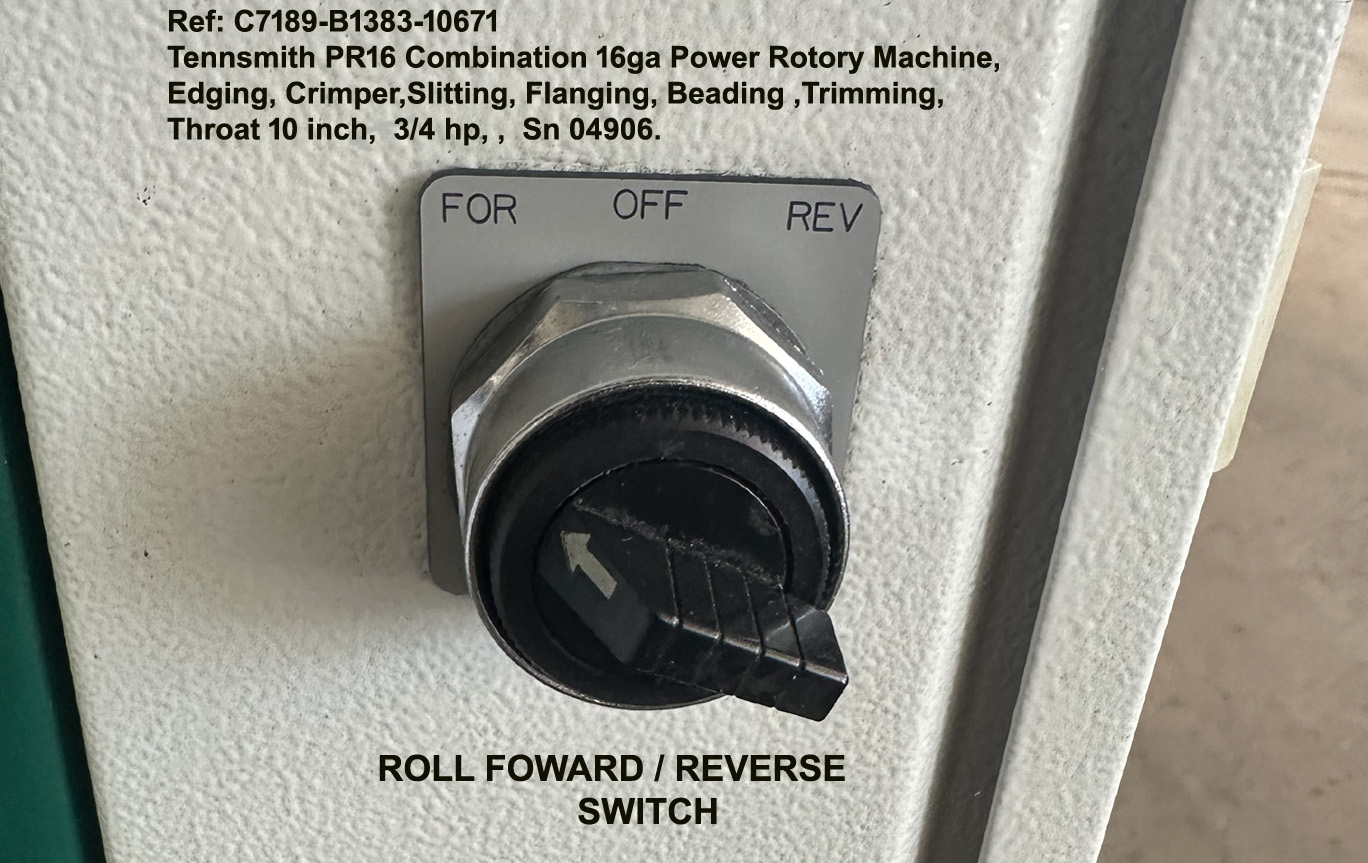

Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-67 Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-9, View Roll Rotation switch

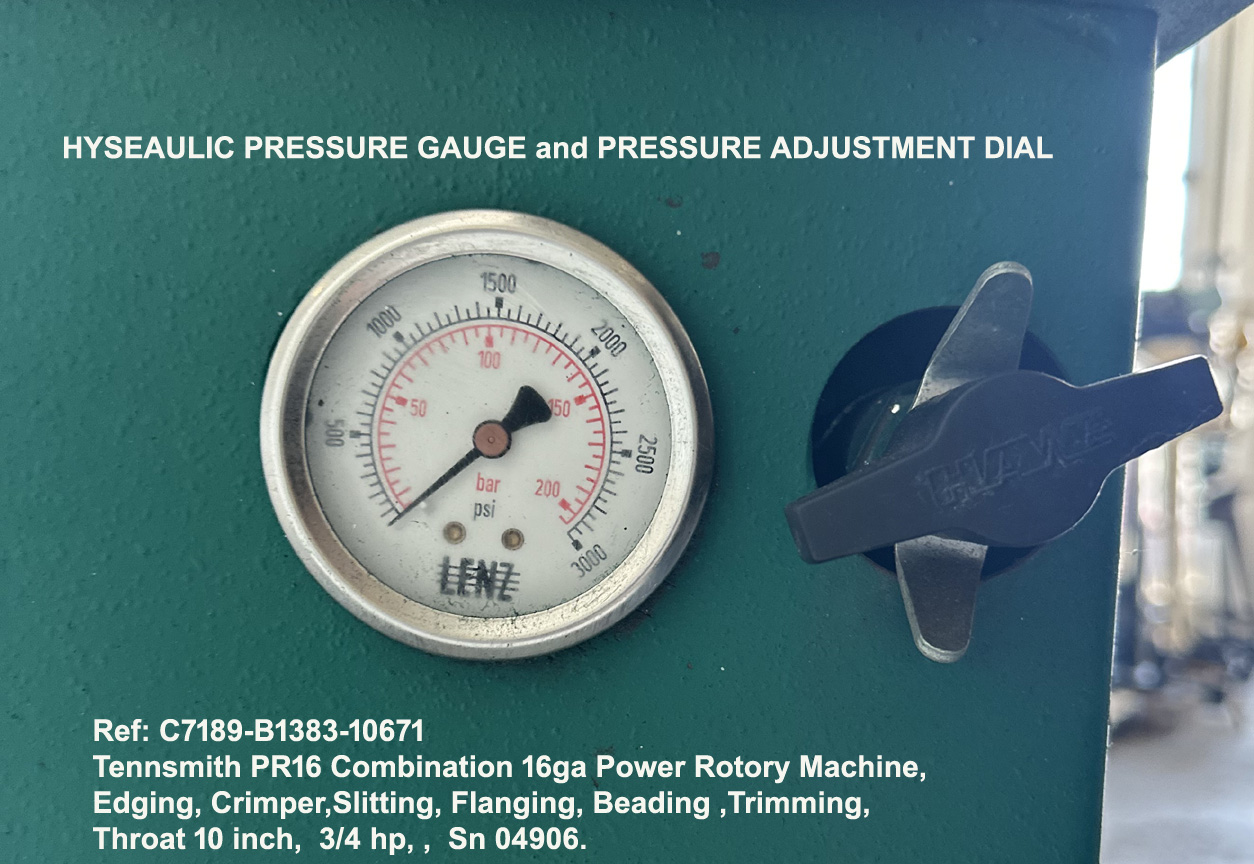

Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-67 Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-8, View Roll Pressure gauge & Adjustment dial

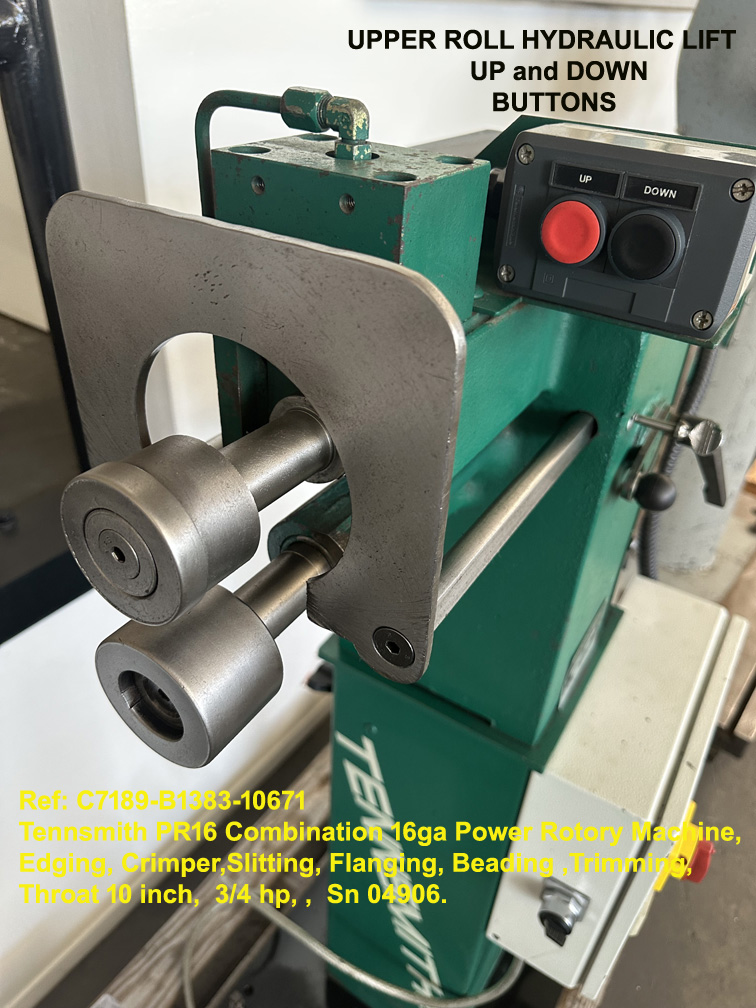

Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-67 Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-7, View Upper roll Hydraulic Rise & Fall

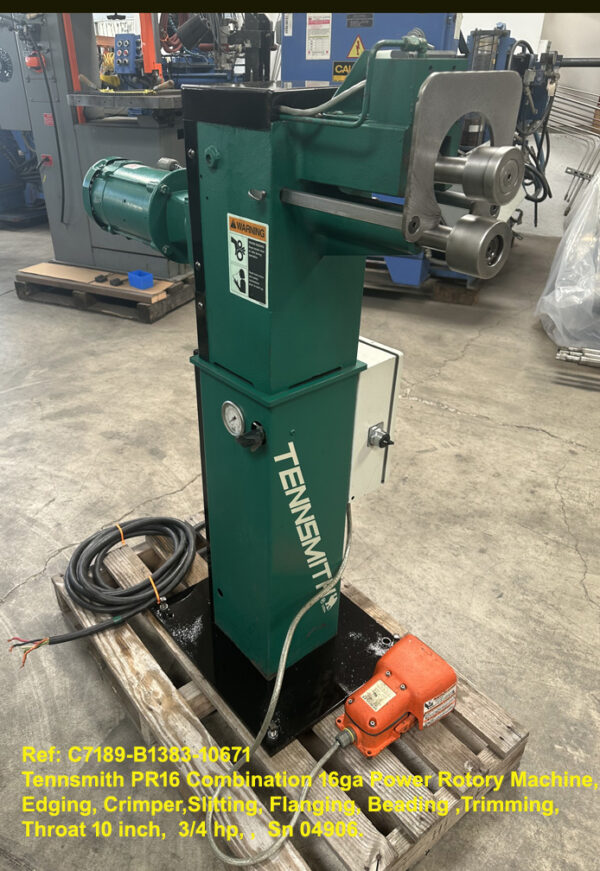

Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-6, Left side to Work end view

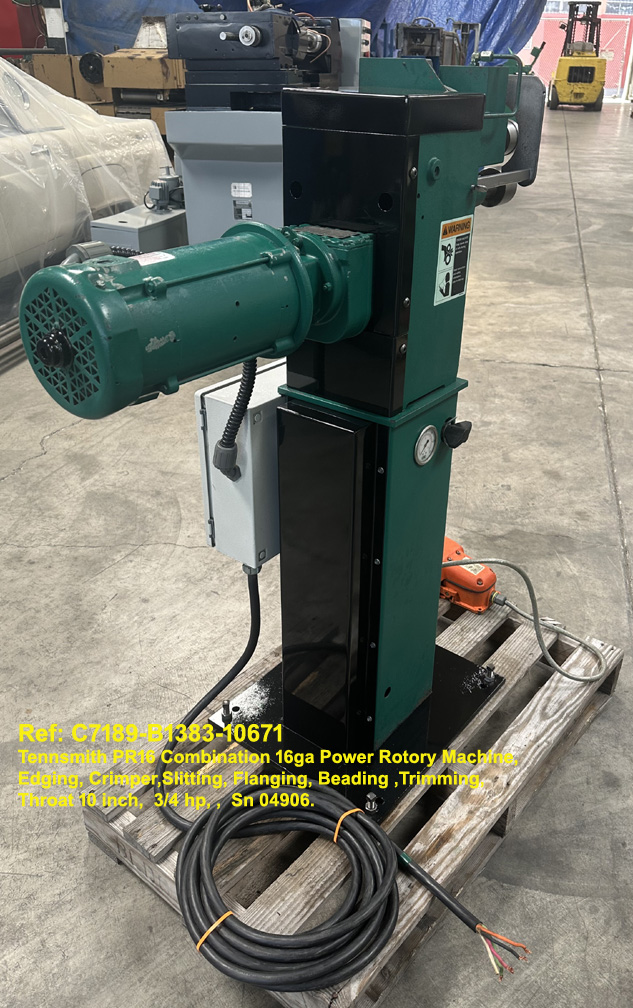

Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-5, Rear view

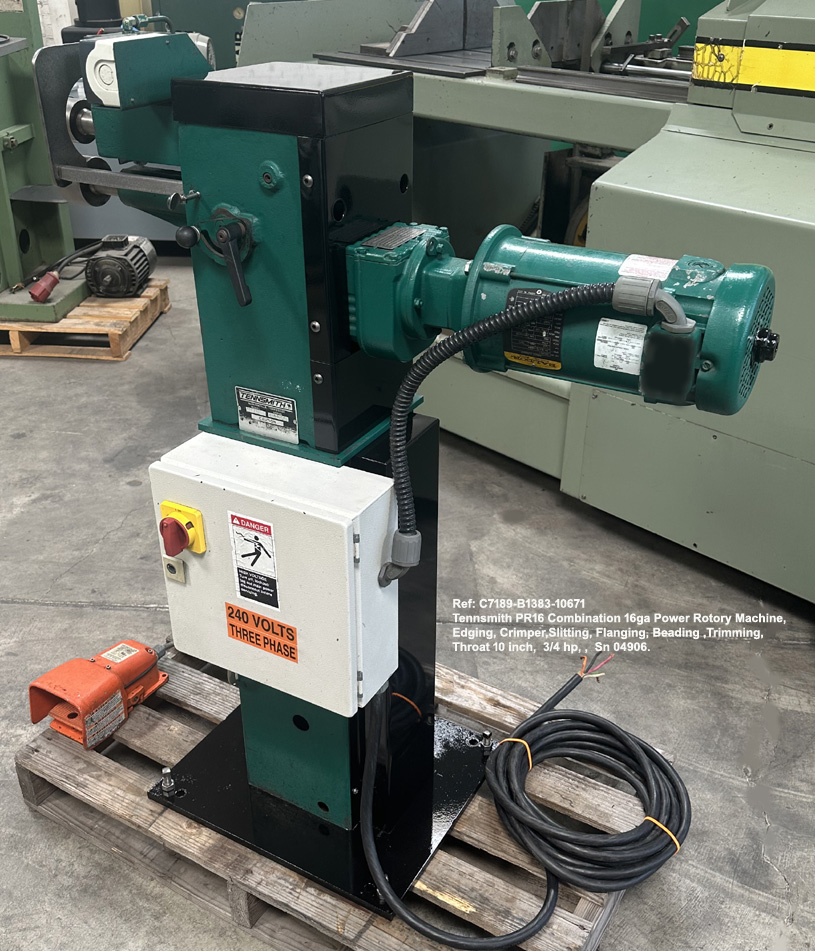

Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-4, Right side to Rear view

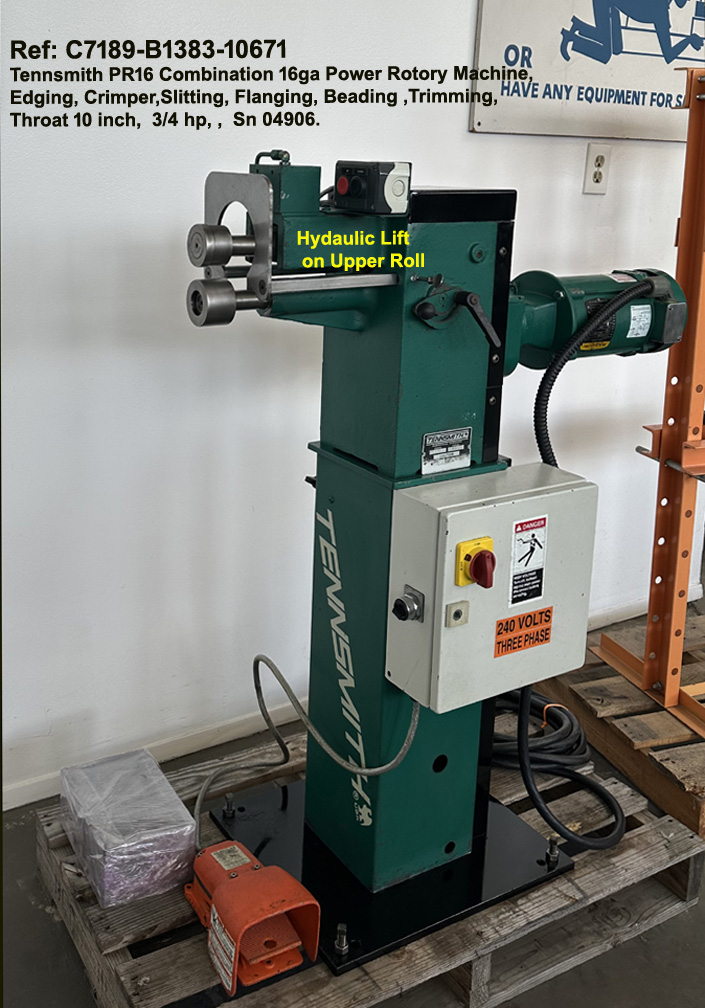

Tennsmith PR16 Combination 16ga Power Rotory Machine,Edging, Crimper,Slitting, Flanging, Beading ,Trimming, throat 10 in, .75 hp, Sn 04906, Ref 10671-3, Work end to Right side view

Tennsmith PR16 Combination 16ga Power Rotory Machine – Edging – Crimper – Slitting -Flanging – Beading – Trimming – Throat 10″ – Hydraulic Rise & Fall Upper Roll – Variable Speed Rolls – 3/4 hp – LIKE NEW, Sn 0490, Reference C7189-B1383-10671

Tennsmith PR16 Combination 16ga Power Rotory Machine – Edging – Crimper – Slitting – Flanging – Beading – Trimming – Throat depth 10″, Hydraulic Powered Rise & Fall on Upper Roll – Variable Speed Rolls, Like New,  C7189-B1383-10671

Model Number: PR16

Serial Number: 0490

Reference No: Power Rotory Machine - Burring, Single Beding, Ogee Beding, Circle Cutting, Crimping, Elbow Edging, Flange, Flatting, Offset, Turning and Wiring & C7189-B1383-10671

Condition: Excellent

Mfg Date:

Model Number PR16

Serial Number 0490

Reference Number Power Rotory Machine - Burring, Single Beding, Ogee Beding, Circle Cutting, Crimping, Elbow Edging, Flange, Flatting, Offset, Turning and Wiring & C7189-B1383-10671

Read More
1-213-627-2847
Categories: , Brand:

Description

LIKE NEW Tennsmith PR16 Combination 16ga Power Rotory Machine – Edging – Crimper – Slitting – Flanging – Beading – Trimming Throat depth 10″, Hydraulic Powered Rise & Fall on Upper Roll – Variable Speed Rolls driven by 3/4 hp motor, Sn 0490, C7189-B1383-10671

Serial Number 0490,   Condition Excellent

SPECIFICATIONS:
CAPACITY: Soft Steel 16 gauge (1.6mm)
                   Stainless Steel 20 gauge (1.0mm)
FORMING APPLICATIONS:
    Burring, Single Beding, Ogee Beding, Circle Cutting, Crimping,
    Elbow Edging, Flange, Flatting, Offset, turning and Wiring.
DEPTH OF THROAT: frame to center roll  10" (254mm)
LENGTH OF SHAFT END FOR ROLLS:
Over-all length from bearing  4¼" (107.95mm)
DISTANCE BETWEEN SHAFT CENTERS 3¼" (82.55mm)
WORKING SPEED Variable 3 to 45 rpm
MOTOR DRIVES 3/4 hp.  (0.55kw) H.P. 230 volts 3 phase
EQUIPPED WITH:
    Hydraulic powered forming pressure unit.
    Hydraulic Top Roll adjustment.
    Hydraulic Pressure Gage with pressure adjustment knob, clamping tension with 0 to 2700 psi range.
    Material Guide, manual.
    Lower arbor with horizontal adjustment.
Miscellaneous Forming Tooling as noted on arbors and in photo.
ELECTRICAL CONTROLS:
    Electrical Control Cabinet with Power On / Off switch.
    Roll Rotation Forward Reverse Switch.
    Control to Rise and Fall Upper Roll shaft.
    Roll Rotation Forward Reverse Switch.
    Foot trip Pedal for On - Off.
ROLL VARTIABLE SPEED CONTROL Adjustment Knob

COMPLETE FACTORY SAFETY GUARDS

Dimensions: 18" L-R x 39" F-B x 46" Height  (457.2 x 990.6mm x 1168.4mm)
Approximate Weight 350 lbs.
New cost $8,675.00 plus $4725.00 for Hydraulic Top Roll Ris and Fall plus $400 for Three Phase and ADDITIONAL COST for Forming Roll  not included in this TOTAL $13,800.00 Our price to you at our Los Angeles, CA. warehouse is $ PRICE UPON REQUEST You may view this turret punch at our showroom or view at our website, www.centurymachinery.com Respectfully submitted,
CENTURY MACHINERY CO., INC







Tennsmith PR16 Combination 16ga Power Rotory Machine – Edging – Crimper – Slitting -Flanging – Beading – Trimming – Throat 10″ with Hydraulic Powered Rise & Fall on Upper Roll – Variable Speed Rolls,  3/4 hp motor, C7189-B1383-10671
