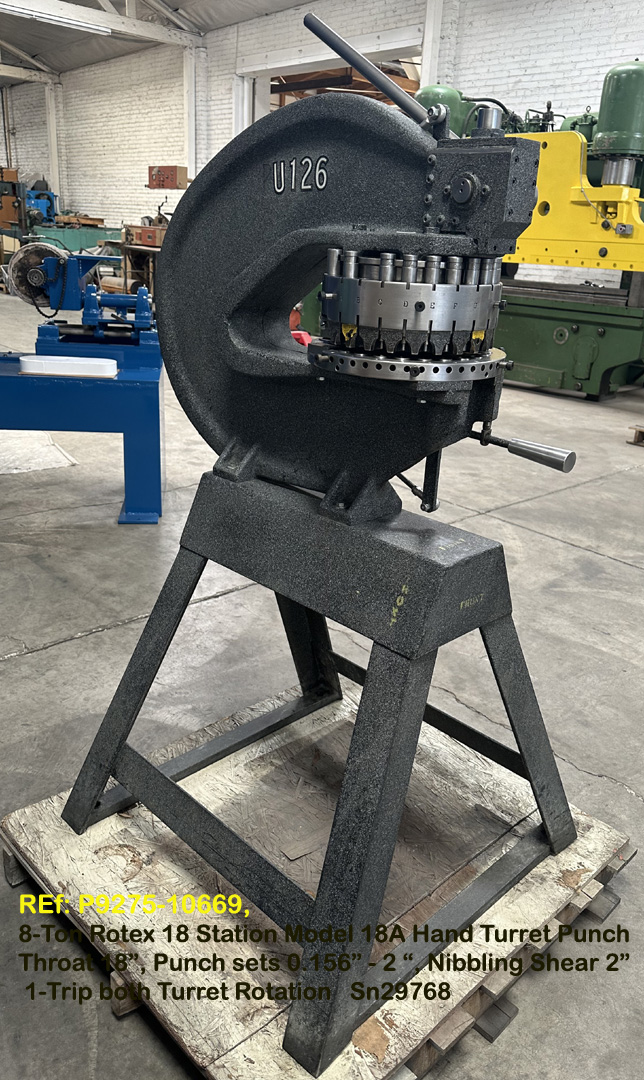

Description

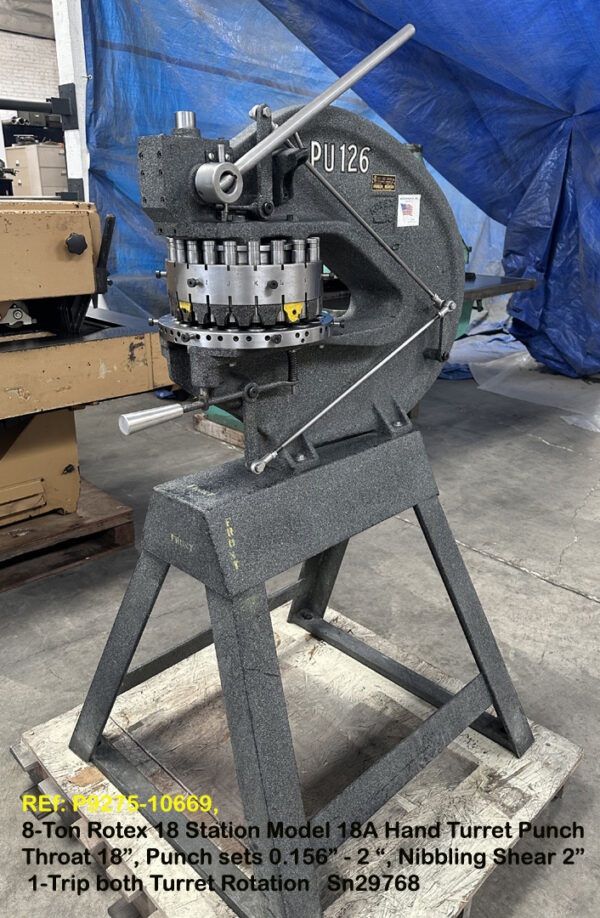

Serial Number 29768, Codition EXCELLENT, VERY LITTLE USE
SPECIFICATIONS:
CAPACITY:
Tons 8
Hole Punching Capacity, with current die set Maximum 2" Speial Die Clearance the following apply in punching mild steel
3/32" - 9/64" inclusive will punch 14 gauge.
5/32" - 15/64" inclusive will punch 10 gauge.
¼" - 3/8" inclusive will punch ¼" thick.
25/64" - 7/8" inclusive will punch 10 gauge.
57/64" – 1½" inclusive will punch 12 gauge.
1-33/64" – 2" inclusive will punch 14 gauge.
Hole Punching Capacity, Maximum 2"
THROAT DEPTH 18"

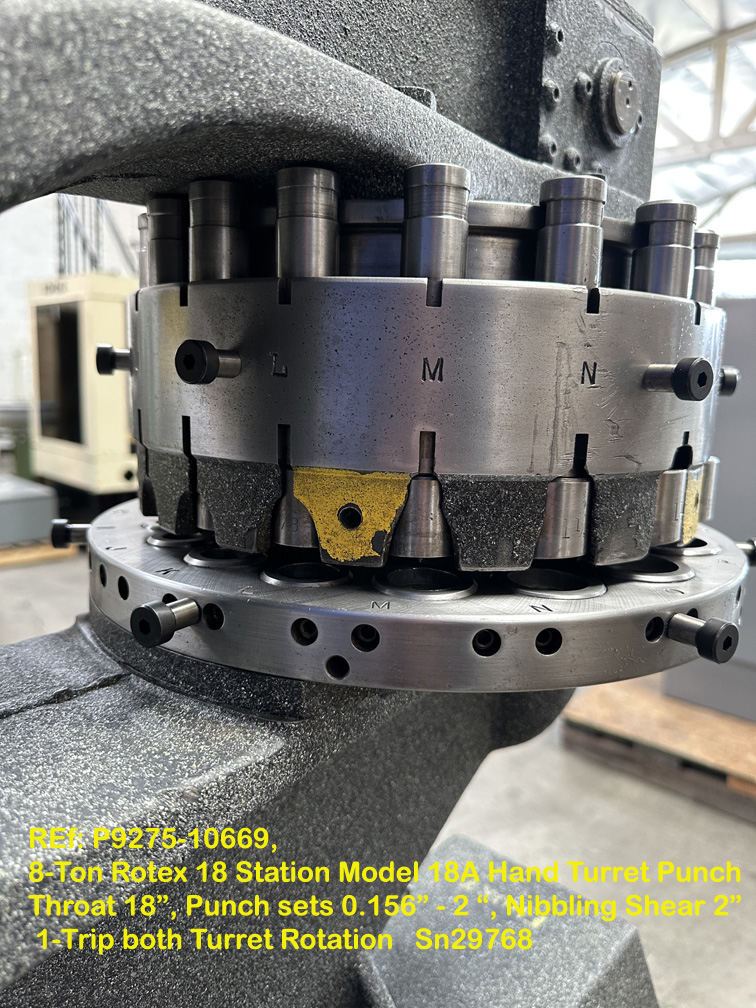

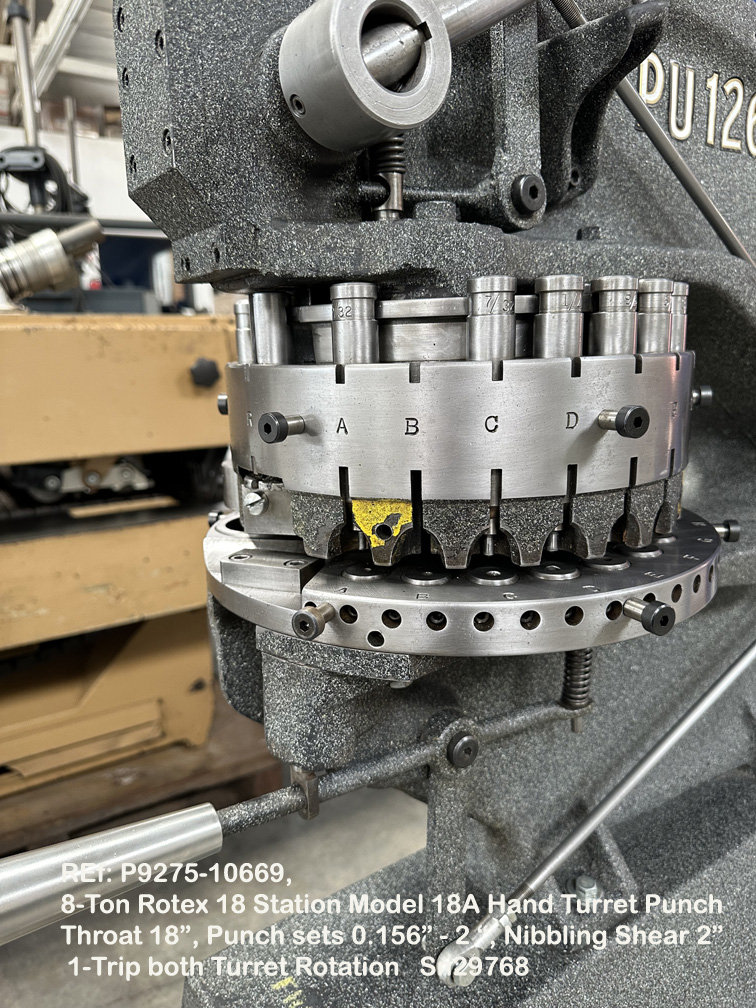

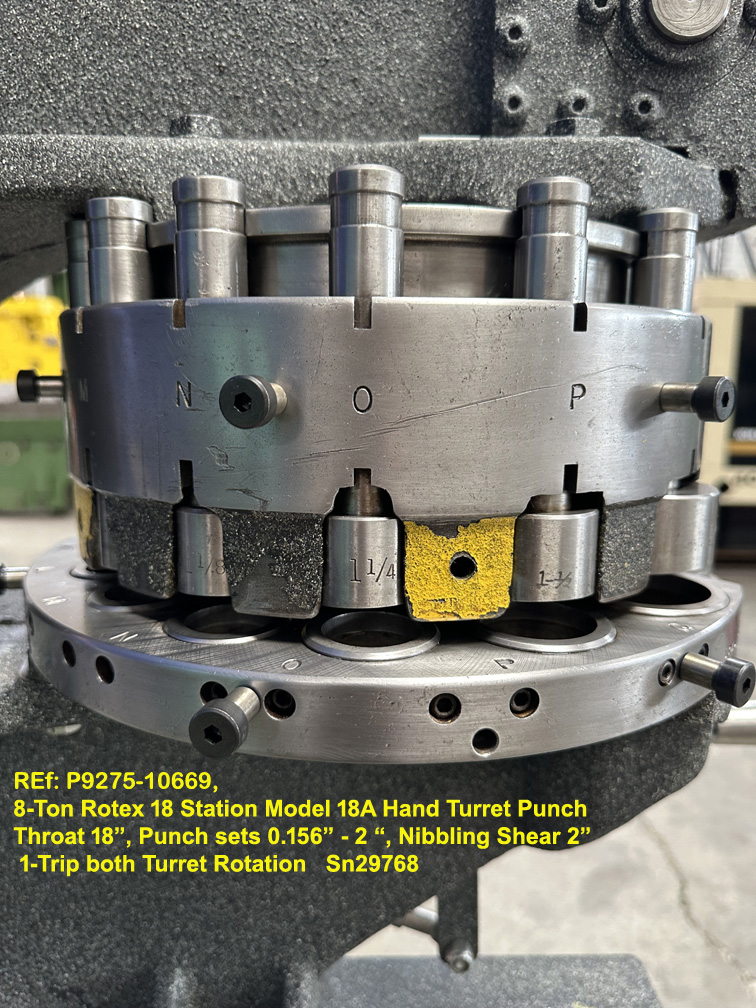

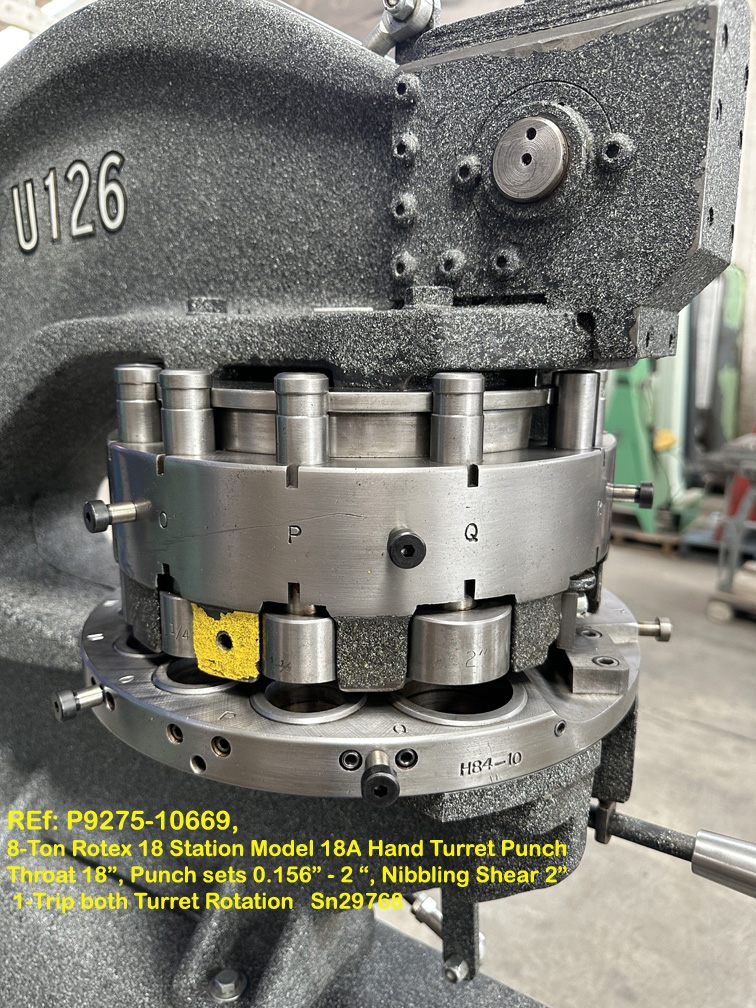

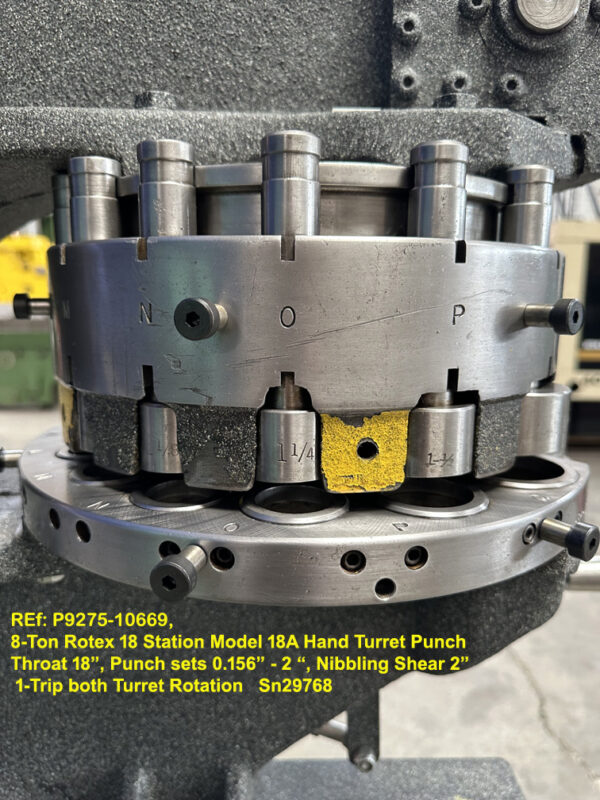

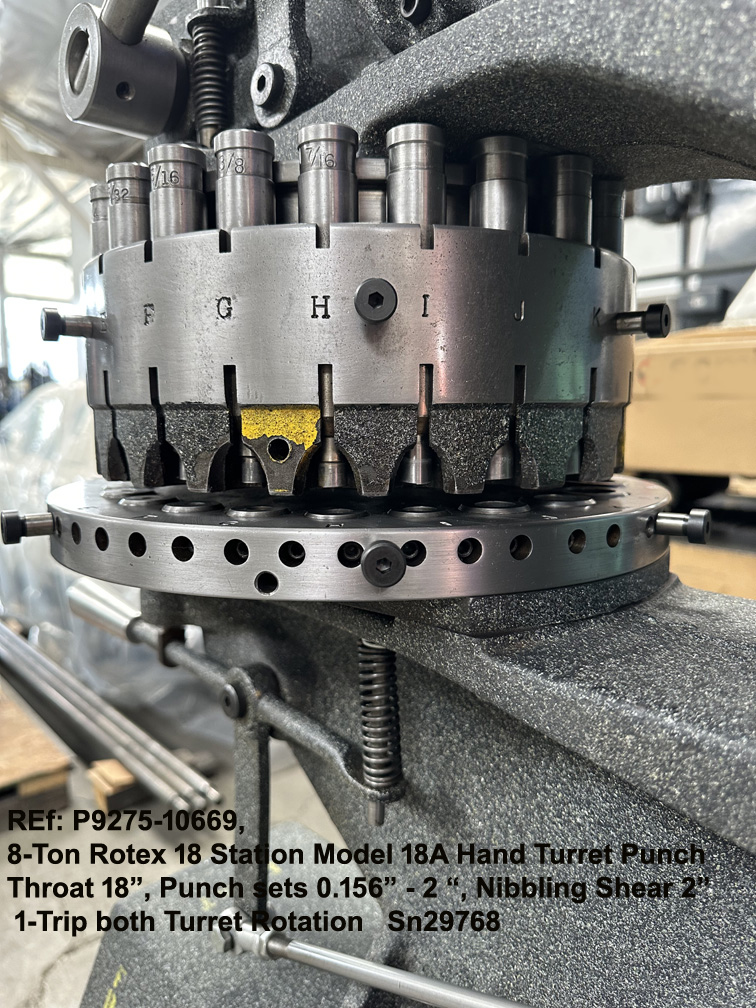

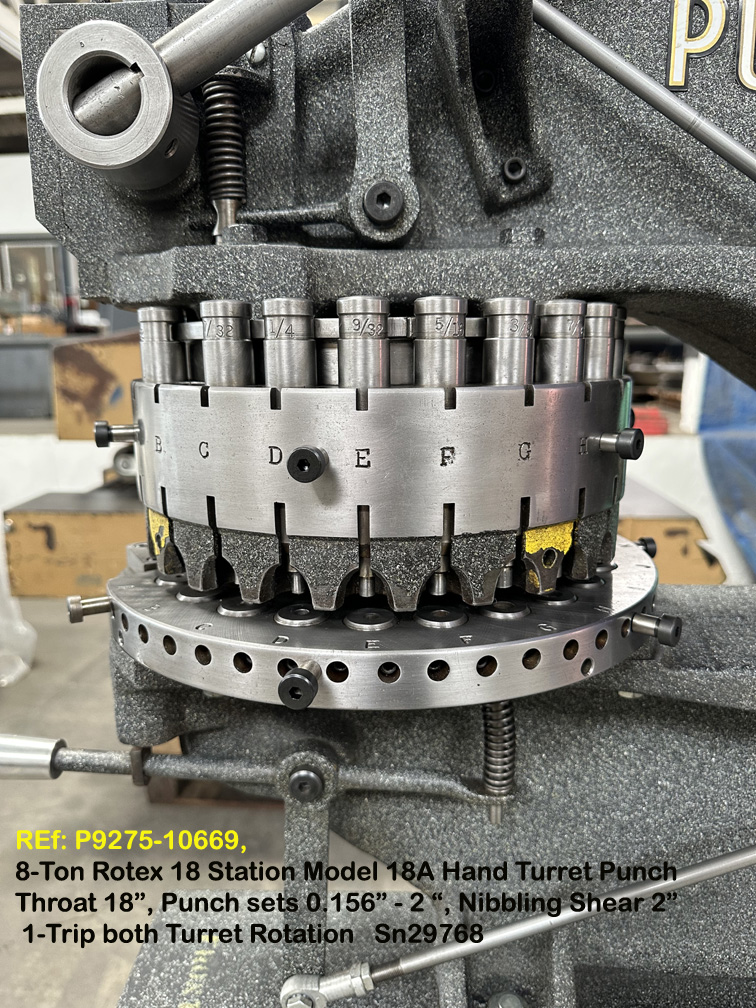

TURRET:
Number of Stations 18
EQUIPPED WITH: Round Punch Set through 17th station
Round (1) 5/32", (1) 3/16", 7/32" (1) 1/4", (1) 9/32",
(1) 5/16", (1) 3/8", (1) 7/16", (1) ½", (1) 5/8",
(1) 3/4", (1)7/8", (1) 1", (1) 1¼", (1) 1½", (1) 2"

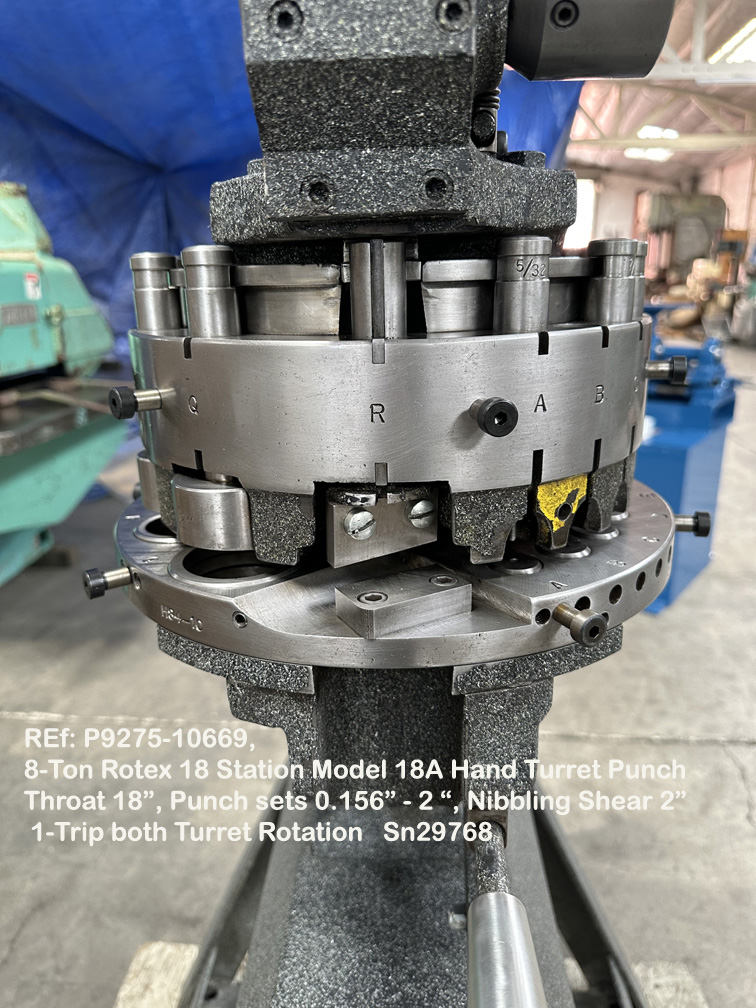

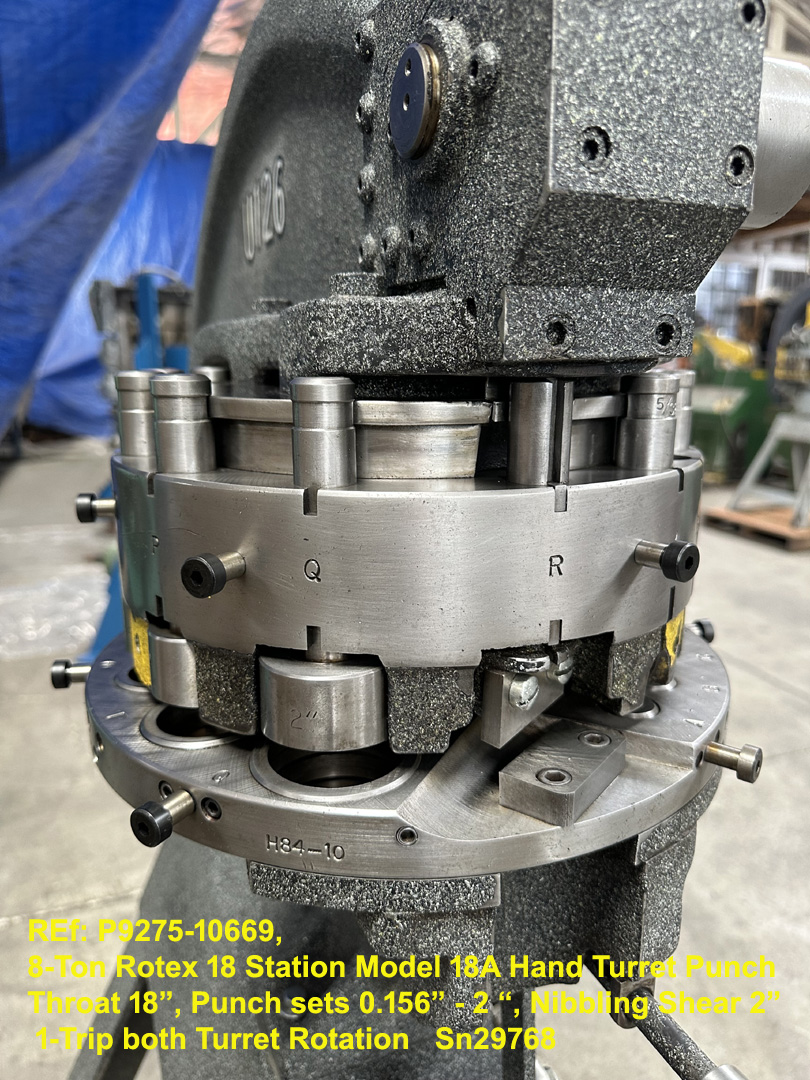

(1) 2" wide Nibbler Shear located 18th station
Single Lever Trip for Upper & Lower Turret Rotation
COMPLETE FACTORY SAFETY GUARDS
Dimensions: 30½" L-R x 38" F-B x 70" Height Handle Up / 57½"
Approximate Weight 575 lbs.
Our price to you at our Los Angeles, CA. warehouse is $ PRICE UPON REQUEST
You may view this turret punch at our showroom or view at our website, www.centurymachinery.com
